Interface WMC Tension/Compression Rod End Load Cell

$0.00

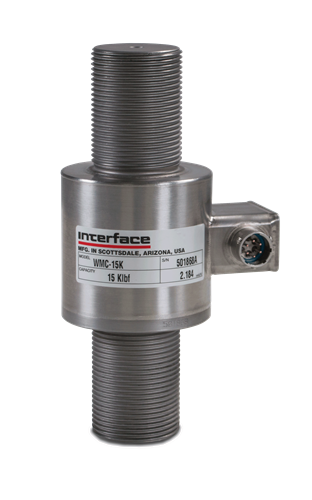

The WMC rod end load cell is constructed of stainless steel, environmentally sealed designed for tension or compression. Capacity range from 15,000 lb to 200,000 lb.

Download product PDF

Specifications

Full Scale Output:
2.0 mV/V

Bridge Resistance:
350 ohms, nominal

Material/Finish:
Stainless steel

Temperature:
Operating range
-65° F to 250° F

Safe Overload:
150% full scale

Rated Excitation:
15 VDC Max

Nonlinearity:
15-30 K ± 0.10% full scale
100 K ± 0.15% full scale
200 K ± 0.20% full scale

Hysteresis:
± 0.15% full scale

Insulation Resistance:
> 5,000 megohms

Connector Pin Out:
A +Excitation
B +Sense
C –Excitation
D –Sense
E –Signal
F +Signal

Warranty:
One-year limited warranty

Options

185459 Cable, Interface WMC Rod End Load Cell 10ft with PT06A-10-6S (SR) connector. 15k-200k

Models

185079 Load Cell,Rod End WMC-15K Interface 15,000lb Stainless Steel 2mv/v 350 Ohm T/C
185080 Load Cell,Rod End WMC-20K Interface 20,000lb Stainless Steel 2mv/v 350 Ohm T/C
185081 Load Cell,Rod End WMC-30K Interface 30,000lb Stainless Steel 2mv/v 350 Ohm T/C
185583 Load Cell,Rod End WMC-50K 50,000lb Stainless Steel 2mv/v 350 Ohm T/C
185082 Load Cell,Rod End WMC- 100K Interface 100,000lb Stainless Steel 2mv/v 350 Ohm T/C
185083 Load Cell,Rod End WMC- 200K Interface 200,000lb Stainless Steel 2mv/v 350 Ohm T/C
