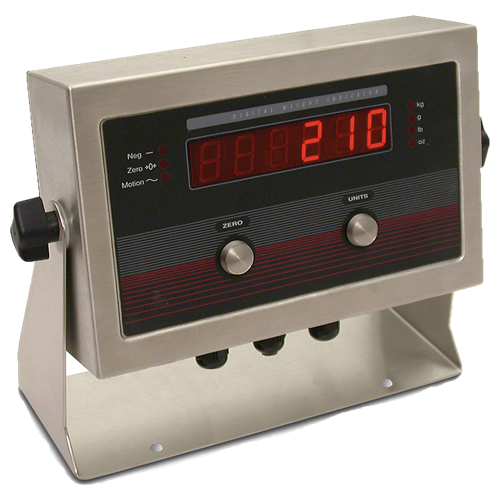

IQ plus 210 Digital Weight Indicator

Power:
Line voltages: 115 VAC or 230 VAC
Frequency: 50-60 Hz

Excitation Voltage:
10 VDC 4 x 350? load cells

Analog Signal Input Range:
0.6 mV/V ? 4.5 mV/V

Analog Signal Sensitivity:
0.3 ?V/graduation minimum,
1.5 ?V/grad recommended

A/D Sample Rate:
15 Hz

Resolution:
Display: 10,000d maximum

Digital Inputs:
Two inputs, TTL or switch closure, active-low

Communication Ports:
Full duplex RS-232, 9600, 4800, 2400, 1200bps;
Seven or eight data bits, even, off, or no parity

Display:
Six-digit light emitting diode (LED) display
Seven-segment, 0.8 in (20 mm) digits

Temperature Range:
Operating: 14?F to 104?F (-10?C to 40?C)
Storage: 14?F to 122?F (-10?C to 50?C)

Enclosure Dimensions:
9.5 in x 6.0 in x 2.75 in (241 mm x 152 mm x 70 mm)

Rating Material:
NEMA Type 4X/IP66, stainless steel

Weight:
10 lb (4.5 kg)

Warranty:
Two-year limited warranty

Approvals:
NTEP CC 00-045, Class III/IIL 10,000d
UL/cUL Listed
