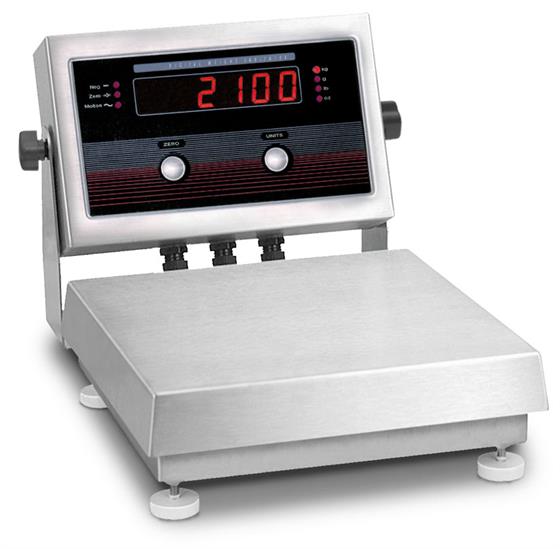

IQ Plus 2100SL Digital Bench Scale

$0.00

The IQ plus 2100SL digital bench scale is an economical and durable checkweigher, enhanced with a four-point spring plate suspension to minimize shock and overload damage.

Download product PDF

Features

  • NEMA Type 4X/IP66
  • 304 stainless steel construction
  • Large, bold 0.8 in light emitting diode (LED) display
  • Status annunciators: lb, kg, oz, g, negative, motion, center of zero
  • One full-duplex RS-232 port
  • Two digital inputs for remote zero, print and units
  • 12 in column, attachment bracket or tilt stand for table, wall or under counter mounting
  • Aluminum, single-point load cell
  • Overload and upload stops on scale base
  • Stainless steel, non-tactile feel, piezo zero and units buttons
  • Unit of measure: kg, gm, lb, oz, lb/oz (lb/oz is not Legal for Trade)
  • PreVent? breather vent
  • Spring-loaded platform
  • Compliant with USDA guidelines

Specifications

Line Voltages:
115 or 230 VAC

Frequency:
50 or 60 Hz

Power Consumption:
70 mA at 115 VAC (8 W)
35 mA at 230 VAC (8 W)

Display Resolution:
10,000 dd

Digital Inputs:
Two inputs, TTL or switch closure, active-low

Serial Communications:
Full-duplex RS-232; 9600, 4800, 2400, 1200 bps; seven or eight data bits; even, odd or no parity

Display:
Six-digit light emitting diode (LED) display
Seven-segment, 0.8 in (20 mm) digits

LED Annunciators:
Negative value, center of zero, motion, kg, g, lb, oz

Keypad:
Two stainless steel piezo switches

Operating Temperature:
14? F to 104? F (-10? C to 40? C)

Rating/Material:
NEMA Type 4X/IP66, stainless steel

Warranty:
Two-year limited warranty

Approvals:
Indicator:
NTEP CC 00-045 Class III/IIIL 10,000 d
Measurement Canada, AM-5374;
UL and C-UL listed
Base:
NTEP CC 95-072, Class III 5,000 d

Options

64123 Remote Switch OPT, IQ+2100 Zero, Units, Print List price: $80.00
53415 LIT,Manual IQ+2100 Installation Manual List price: $30.00

Models

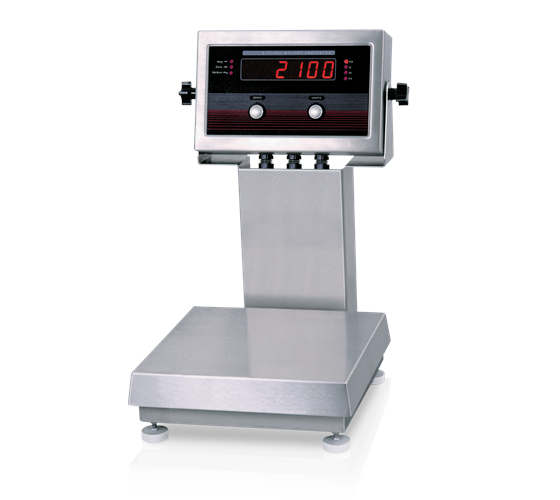

Part #?65182 Product DescriptionCKWGHR,IQ+2100SL 10×10- 5lb w/ 12 Inch Column SST 115vac
Part #?65183 Product DescriptionCKWGHR,IQ+2100SL 10×10- 10lb w/ 12 Inch Column SST 115vac
Part #?65184 Product DescriptionCKWGHR,IQ+2100SL 10×10- 20lb w/ 12 Inch Column SST 115vac
Part #?65185 Product DescriptionCKWGHR,IQ+2100SL 10×10- 30lb w/ 12 Inch Column SST 115vac
Part #?65186 Product DescriptionCKWGHR,IQ+2100SL 12×12- 30lb w/ 12 Inch Column SST 115vac
Part #?65187 Product DescriptionCKWGHR,IQ+2100SL 12×12- 50lb w/ 12 Inch Column SST 115vac
Part #?65188 Product DescriptionCKWGHR,IQ+2100SL 12×12- 100lb w/ 12 Inch Column SST 115vac

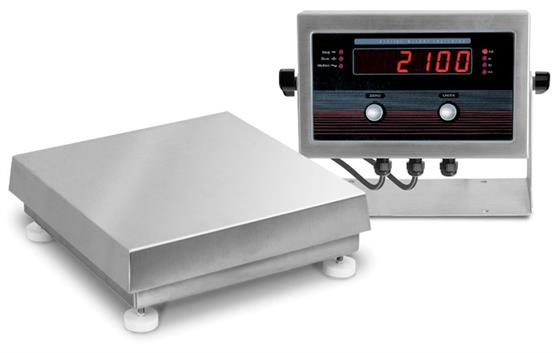

Part #?65175 Product DescriptionCKWGHR,IQ+2100SL 10×10- 5lb w/ Bench Scale Attachment Bracket SST 115vac
Part #?65176 Product DescriptionCKWGHR,IQ+2100SL 10×10- 10lb w/ Bench Scale Attachment Bracket SST 115vac
Part #?65177 Product DescriptionCKWGHR,IQ+2100SL 10×10- 20lb w/ Bench Scale Attachment Bracket SST 115vac
Part #?65178 Product DescriptionCKWGHR,IQ+2100SL 10×10- 30lb w/ Bench Scale Attachment Bracket SST 115vac
Part #?65179 Product DescriptionCKWGHR,IQ+2100SL 12×12- 30lb w/ Bench Scale Attachment Bracket SST 115vac
Part #?65180 Product DescriptionCKWGHR,IQ+2100SL 12×12- 50lb w/ Bench Scale Attachment Bracket SST 115vac
Part #?65181 Product DescriptionCKWGHR,IQ+2100SL 12×12- 100lb w/ Bench Scale Attachment Bracket SST 115vac
Part #?65168 Product DescriptionCKWGHR,IQ+2100SL 10×10- 5lb w/ Tilt Stand SST 115vac
Part #?65169 Product DescriptionCKWGHR,IQ+2100SL 10×10- 10lb w/ Tilt Stand SST 115vac
Part #?65170 Product DescriptionCKWGHR,IQ+2100SL 10×10- 20lb w/ Tilt Stand SST 115vac
Part #?65171 Product DescriptionCKWGHR,IQ+2100SL 10×10- 30lb w/ Tilt Stand SST 115vac
Part #?65172 Product DescriptionCKWGHR,IQ+2100SL 12×12- 30lb w/ Tilt Stand SST 115vac
Part #?65173 Product DescriptionCKWGHR,IQ+2100SL 12×12- 50lb w/ Tilt Stand SST 115vac
Part #?65174 Product DescriptionCKWGHR,IQ+2100SL 12×12- 100lb w/ Tilt Stand SST 115vac
