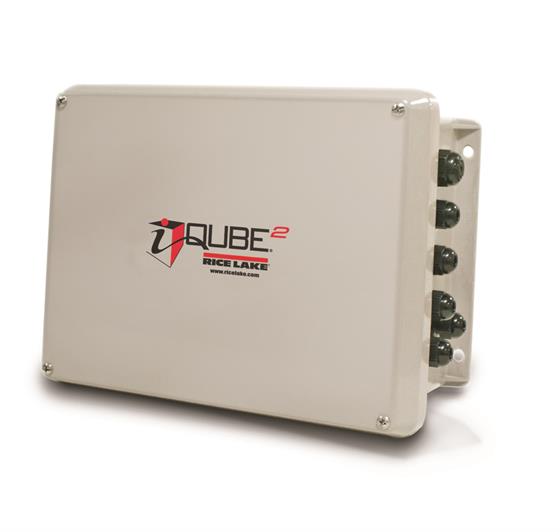

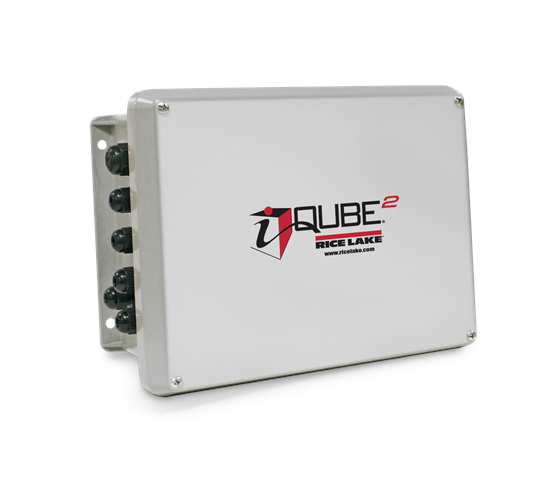

iQUBE Digital Diagnostic Junction Box

$0.00

iQUBE? digital diagnostic junction box is a smart junction box at the forefront of junction box technology. iQUBE? has enhanced features that will redefine expectations for traditional analog to digital technology.

Download product PDF
Category:

Features

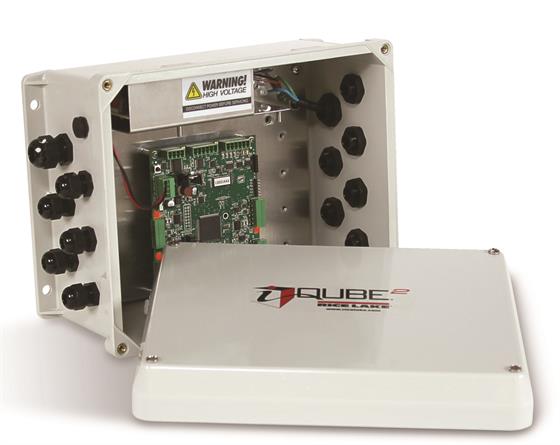

  • iQUBE2 board has four A/D channels
  • Stainless steel or Fiberglass Reinforced Polyester (FRP), NEMA Type 4X polyester enclosure
  • Supports networking up to four boards, for 16 A/D channels. Connection can be up to four separate platforms with a system total, or four separate scale systems.

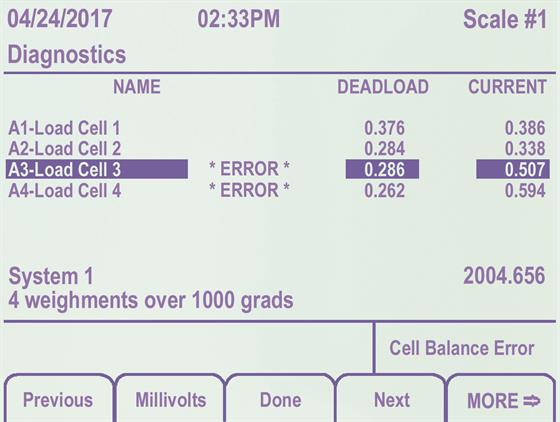

  • Diagnostic routines for weighing errors and system health
  • Cell tests for overloaded, underloaded, zero reference, drift, noise and unbalanced conditions
  • Onboard status LEDs for communication and visual bi-color indication of cell health
  • Cell emulator compensates for load cell failure until a repair can be made
  • Cal-Match algorithm automatically trims and calibrates the scale in one pass of test weights (stopping over each mount)
  • Standard communication RS-232/RS-422
  • Option card slot for fiber optic, Ethernet TCP/IP, wireless TCP/IP, USB or RS-232/485
  • Four digital I/O per card, for push-button operation, setpoint control or cell status
Applications
  • Truck and railroad scales
  • Tank and hopper scales
  • Multi-channel scales
  • Interfaces to 920i, 1280, Virtui2?and ASCII serial commands
