Home / Retail Scales / Remote scale base / Ishida IP-Ai Remote Scale Base
Ishida IP-Ai Remote Scale Base $ 0.00
Download product PDF
Features
Large color touchscreen with printer and base scale
Adjustable touchscreen viewing angle

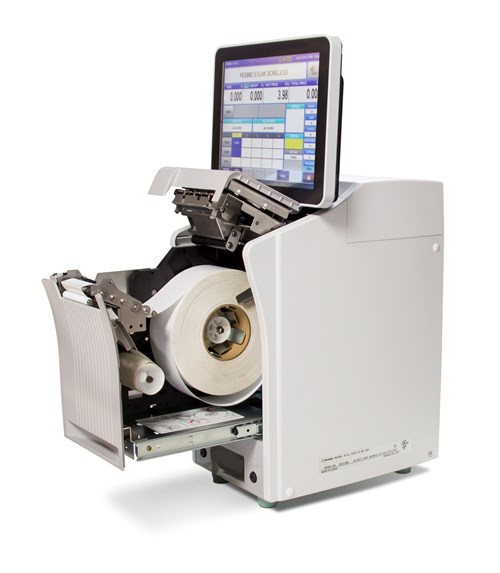

Front-loading, 9 in (230 mm) label roll capacity
3-inch thermal head
Prints all legally required safe-handling, country of origin labels and 2020 nutritional information
Stores and prints graphics for custom labeling
Ethernet communications
19 tactile keys
2 GB of memory
30+ selectable fixed bar code formats
Flexible setup for ergonomic operation
Compatible with third-party communication software, including Invatron’s PLUM, ADC’s InterScale and Droste’s PCScale Manager
Up to 150mm/sec print speed
Configurable for different languages including Spanish, French and German
Specifications
Capacity (Dual Range):
0 to 15 × 0.005 lb/15 to 30 × 0.01 lb (PN 169225)
Capacity (Single Range):
60 × 0.01 lb (PN 186946)
Operating Environment:
Temperature: 23 °F to 104°F (-5 °C to 40 °C)
Humidity: 20% to 85% (no condensation)
Display Unit:
12.1in TFT color LCD with LED
backlight SVGA (800 × 600)
Display Items:
Tare: Four-digits
Unit price: Five-digits
Weight: Five-digits
Total price: Six-digits
Input/Output:
LAN x 1 channel
USB x 4 channel
SD card x 1 channel
(for transaction data)
Memory:
2GB
Communication:
Static TCP/IP 10/100 Base T Ethernet
Print Head:
3.1 in (80 mm) direct thermal
(12 dot/mm)
Print Speed:
3.9/ 4.7/ 5.9 in/sec
(100/ 120/ 150 mm/sec)
Label Size:
Width: 1.5 to 3.1 in (38 to 80 mm)
Length: 1.2 to 7.9 in (30-200 mm)
Label Roll:
Inside diameter: 3.0 in (76 mm) min
Outside diameter: 9.0 in (230 mm) max
Weight:
Main body: 42 lb (19 kg)
Scale unit: 13 lb (6 kg)
Power Supply:
AC110 to 120V, 50/60Hz, 4A
Power Consumption:
Stand-by: 50W
In operation: 120W
Classification:
NTEP CC 06-029
Warranty:
One-year limited
Options
169225
Retail Scale,IP-Ai 30lb Capacity, Pre pack, Hand wrap, 9 inch OD label roll, Ishida
186946
Retail Scale, IP-Ai 60lb Capacity, Pre pack Hand wrap, 9 inch OD label roll, Ishida
220065
Retail Scale, IP-Ai S Ver. CFast, Pre Pack, Hand wrap, 9 inch OD label support 15×0.005-30×0.01lb, 115VAC, Ishida
220066
Retail Scale, IP-Ai S Ver. CFast, Pre Pack, Hand wrap, 9 inch OD label support 60×0.01lb, 115VAC, Ishida
47670
Retail Scale OPT,Base Unit Scalemate 27 Deep x 23 Wide x 32 High Scale Shelf 36 inch Overall Height 2 Roll 18 in Max Roll Size 750 Watt 6 x 15 in Heat Pad w/Cover 115 VAC 12ft Power Cord Ishida
47672
Retail Scale OPT,Wrap Station Wing Left Scalemate, SM20ES, 200ES, 14 x 22 in Ishida
102933
Wrap Station,Right Wing w/o Hood 14 x 34 SST, With Support Leg
53963
Retail Scale OPT,Wrap Station All Purpose Shelf Scalemate, SM20ES, 200ES 12×24 or 15×24 Ishida
98400
Option,10 Key Cover Clear Membrane Self Adhesive Tenkey SOLD PER EACH OMNi-4000 IP-EMZ WM-4000, WM-Ai, IP-Ai, IP-Ai-P Ishida
104948
Mounting kit, Handwrap station, Uni-7RP, Uni-9RP 60lb, Uni-3RP, Ishida
178842
Shelf Assembly, Hand Wrapping Station, IP-Ai, Ishida
155176
Option,UNI-7 RP POP Label Dispenser with Mounting Hardware for ScaleMate
151761
Option, Spacer POP label dispenser, Set of 10, Ishida, use for wider core POP labels
