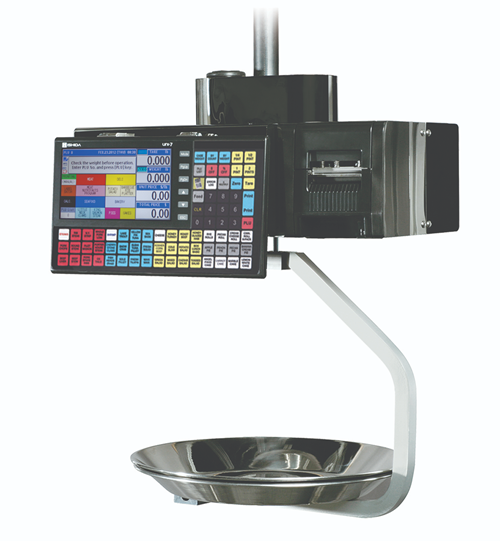

Ishida Uni-7 Hanging Scale $ 0.00
Hanging Produce Scale with Colored Touchscreen
Ishida’s Uni-7 hanging scale is the only hanging scale on the market with a full-color touchscreen. This space-saving, suspended design cradles product in its bowl-shaped pan. Keypad and display remain at eye level, away from busy work areas or moisture.
Download product PDF
Features
Large color touchscreen (7 in)
Adjustable touchscreen viewing angle
Color graphics on customer-side display
Dual-range weighing (0 to 15 lb × 0.005 lb/15 to 30 lb × 0.01 lb)
Front-load label cassette
Supports multiple label formats
Ethernet communications
Internal wireless communications, 802.11 b/g
Up to 99 pages of preset keys
77 tactile keys
4 MB standard memory expandable to 2 GB
Self-serve mode/operation
30+ selectable fixed bar code formats
2020 nutrition labeling
Configurable for different languages including Spanish, French and German
Compatible with third-party communication software, including Invatron’s PLUM and ADC’s InterScale
Specifications
Capacity (Dual Range):
0 to 15 × 0.005 lb, 15 to 30 × 0.01 lb
Display:
Operator: Color LCD, 7 in
Customer: Color LCD, 7 in
Display Items:
Tare: Four-digits
Unit price: Six-digits
Weight: Five-digits
Total price: Six-digits
Preset Keys:
1980: 20 × 99 pages
Memory Capacity:
4 MB expandable to 2 GB
Communications:
Static TCP/IP 10/100 Base T Ethernet
Wireless WEP/WPA/WPA2
Interface:
USB port
Platter:
14.1 in (360 mm)
Print Head:
Direct thermal 2.2 in head (56 mm)
Print Speed:
3.2/ 3.9/ 4.7/ 5.9 in/sec
(80/ 100/ 120/ 150 mm/sec)
Label Size:
Width: 1.2 to 2.5 in (30 to 64 mm)
Length: 0.8 to 7.9 in (20 to 200 mm)
Label Roll:
Inside diameter: 1.6 in (40 mm) min
Outside diameter: 3.9 in (100 mm) max
Power Consumption:
Stand-by: 50 W
In operation: 120 W
Label Backing Paper:
Width: Up to 2.6 in (66 mm)
Power Supply:
AC100 to 240 V, 50/60 Hz
Classification:
NTEP CC 07-099
UL listed
Warranty:
One-year limited
Options
09371
Retail Scale,Uni-7 Hanging 15 x 0.005lb / 30 x 0.01lb, RF Kit, 115VAC Ishida 115VAC Ishida
110996
Retail Scale OPT,Label Cassette UNI-7, Replacement or Additional w/Special Front Plate For UNI-7H units, Order Black Cassette PN 190565 Ishida
119030
USB Flash Drive-1GB Branded RLWS and Ishida, Uni-7 black
167774
Cover,In Use Operator Controller Uni-5 Uni-7 Ishida
91870
Option,Compact Flash Card 32mb Ishida CF
105346
Label,Roll Retail Blank DTL 64mm x 85mm (2.52 x 3.34) Small Core 425 LPR 12 RPC Ishida
