ITCM HE Isolated Tension Cell Module

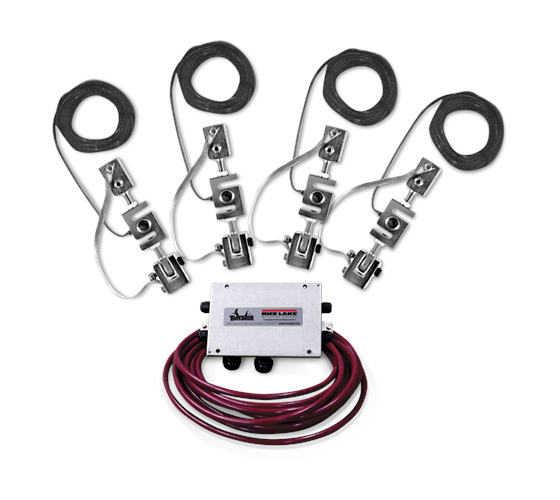

Complete Kit Includes:

  • Three?or four?ITCM assemblies with RL20001HE stainless steel, welded seal
  • NTEP Certified S-beam load cells
  • One?JB4SS NEMA Type 4X stainless steel signal trim junction box
  • 25 ft of our hostile environment EL147HE SURVIVOR load cell cable

Standard Features:

  • Capacities (per module): 500-5,000 lb (226.8-2,268.0 kg)

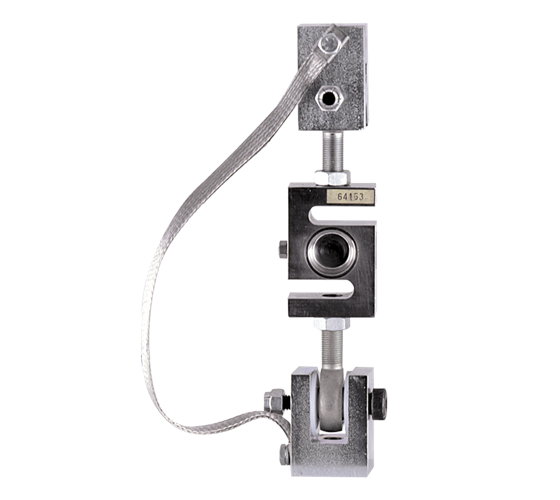

  • Clevis mounts with nylon insulating washers
  • PTFE-lined rod-end ball joints
  • Load cell is completely isolated from stray currents
  • Grounding strap provides alternative path to ground
  • Complete package for ease of installation
  • Provides correct load-cell loading even in difficult installations
  • Lower overall height compared to other isolated tension assemblies
Category:

Features

? Capacities (per module): 500lb-5,000lb
(226.8kg-2,268.0kg)
? Clevis mounts with nylon insulating washers
? PTFE-lined rod-end ball joints
? Load cell is completely isolated from stray currents
? Grounding strap provides alternative path
to ground
? Complete package for ease of installation
? Provides correct load-cell loading even
in difficult installations
? Lower overall height compared to other isolated
tension assemblies

Specifications

Applications
? Suspended hoppers and tanks
? Mechanical scale conversions
? Use as a single module or in multiples
Complete kit includes:
? Three or four ITCM assemblies with RL20001HE
NTEP Certified s-beam load cells
? One JB4SS NEMA Type 4X stainless steel signal
trim junction box
? 25ft of our hostile environment EL147HE
SURVIVOR load cell cable

Models

3-Module Kit

46561 Mount Kit,ITCMHE 3EA 500 lb 1/2-13NC SST Includes RL20001HE and JB4SS
46562 Mount Kit,ITCMHE 3EA 500 lb 5/8-11NC Includes RL20001HE and JB4SS
46563 Mount Kit,ITCMHE 3EA 500 lb 3/4-10NC SST Includes RL20001HE and JB4SS
46564 Mount Kit,ITCMHE 3EA 750 lb 1/2-13NC SST Includes RL20001HE And JB4SS
46565 Mount Kit,ITCMHE 3EA 750 lb 5/8-11NC SST Includes RL20001HE And JB4SS
46566 Mount Kit,ITCMHE 3EA 750 lb 3/4-10NC SST Includes RL20001HE And JB4SS
46567 Mount Kit,ITCMHE 3EA 1000 lb 1/2-13NC SST Includes RL20001HE And JB4SS
46568 Mount Kit,ITCMHE 3EA 1000 lb 5/8-11NC SST Includes RL20001HE And JB4SS
46569 Mount Kit,ITCMHE 3EA 1000 lb 3/4-10NC SST Includes RL20001HE And JB4SS
46570 Mount Kit,ITCMHE 3EA 1500 lb 1/2-13NC SST Includes RL20001HE And JB4SS
46571 Mount Kit,ITCMHE 3EA 1500 lb 5/8-11NC SST Includes RL20001HE And JB4SS
46572 Mount Kit,ITCMHE 3EA 1500 lb 3/4-10NC SST Includes RL20001HE And JB4SS
46573 Mount Kit,ITCMHE 3EA 2000 lb 1/2-13NC SST Includes RL20001HE And JB4SS
46574 Mount Kit,ITCMHE 3EA 2000 lb 5/8-11NC SST Includes RL20001HE And JB4SS
46575 Mount Kit,ITCMHE 3EA 2000 lb 3/4-10NC SST Includes RL20001HE And JB4SS
46576 Mount Kit,ITCMHE 3EA 2500 lb 5/8-11NC SST Includes RL20001HE And JB4SS
46577 Mount Kit,ITCMHE 3EA 2500 lb 3/4-10NC Includes RL20001 And JB4SS
46578 Mount Kit,ITCMHE 3EA 3000 lb 3/4-10NC SST Includes RL20001HE And JB4SS
46579 Mount Kit,ITCMHE 3EA 5000 lb 3/4-10NC SST Includes RL20001HE And JB4SS

4-Module Kit

46580 Mount Kit,ITCMHE 4EA 500 lb 1/2-13NC SST Includes RL20001HE and JB4SS
46581 Mount Kit,ITCMHE 4EA 500 lb 5/8-11NC SST Includes RL20001HE and JB4SS
46582 Mount Kit,ITCMHE 4EA 500 lb 3/4-10NC SST Includes RL20001HE and JB4SS
46583 Mount Kit,ITCMHE 4EA 750 lb 1/2-13NC SST Includes RL20001HE And JB4SS
46584 Mount Kit,ITCMHE 4EA 750 lb 5/8-11NC SST Includes RL20001HE And JB4SS
46585 Mount Kit,ITCMHE 4EA 750 lb 3/4-10NC SST Includes RL20001HE And JB4SS
46586 Mount Kit,ITCMHE 4EA 1000 lb 1/2-13NC SST Includes RL20001HE And JB4SS
46587 Mount Kit,ITCMHE 4EA 1000 lb 5/8-11NC SST Includes RL20001HE And JB4SS
46588 Mount Kit,ITCMHE 4EA 1000 lb 3/4-10NC SST Includes RL20001HE And JB4SS
46589 Mount Kit,ITCMHE 4EA 1500 lb 1/2-13NC SST Includes RL20001HE And JB4SS
46590 Mount Kit,ITCMHE 4EA 1500 lb 5/8-11NC SST Includes RL20001HE and JB4SS
46591 Mount Kit,ITCMHE 4EA 1500 lb 3/4-10NC SST Includes RL20001HE And JB4SS
46592 Mount Kit,ITCMHE 4EA 2000 lb 1/2-13NC SST Includes RL20001HE And JB4SS
46593 Mount Kit,ITCMHE 4EA 2000 lb 5/8-11NC SST Includes RO20001HE And JB4SS
46594 Mount Kit,ITCMHE 4EA 2000 lb 3/4-10NC SST Includes RL20001HE And JB4SS
46595 Mount Kit,ITCMHE 4EA 2500 lb 5/8-11NC SST Includes RL20001HE And JB4SS
46596 Mount Kit,ITCMHE 4EA 2500 lb 3/4-10NC SST Includes RL20001HE And JB4SS
46597 Mount Kit,ITCMHE 4EA 3000 lb 3/4-10NC SST Includes RL20001HE And JB4SS
46598 Mount Kit,ITCMHE 4EA 5000 lb 3/4-10NC SST Includes RL20001HE And JB4SS
