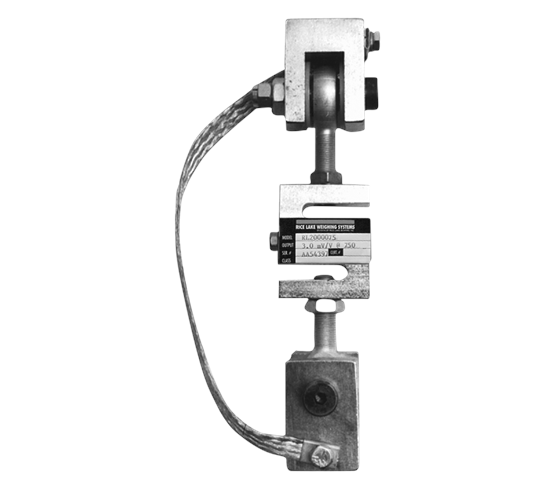

ITCM SS Isolated Tension Cell Module

$0.00

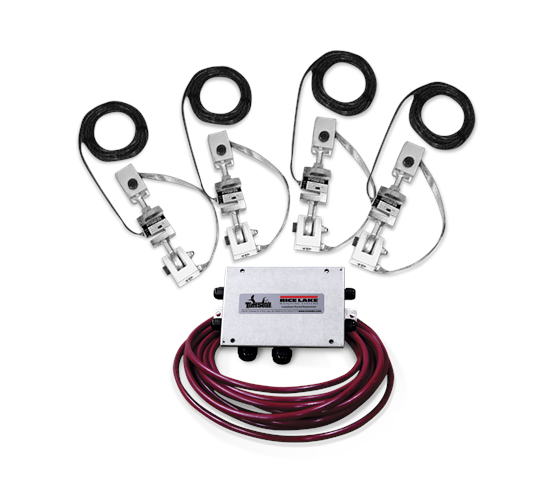

Complete Kit Includes:

  • Three?or four?ITCM assemblies with RL20000 ST NTEP Certified S-beam load cells
  • One?JB4SS NEMA Type 4X stainless steel signal trim junction box
  • 25 ft of our hostile environment EL147HE SURVIVOR load cell cable

Standard Features:

  • Capacities (per module): 100-5000 lb (45.4-2,268.0 kg)
  • Clevis mounts with nylon insulating washers
  • PTFE-lined rod-end ball joints
  • Load cell is completely isolated from stray currents
  • Grounding strap provides alternative path to ground
  • Complete package for ease of installation
  • Provides correct load cell loading even in difficult installations
  • Lower overall height compared to other isolated tension assemblies

Download product PDF
Category:

Features

Capacities (per module): 100lb-5,000lb
(45.4kg-2,268.0kg)
? Clevis mounts with nylon insulating washers
? PTFE-lined rod-end ball joints
? Load cell is completely isolated from stray currents
? Grounding strap provides alternative path
to ground
? Complete package for ease of installation
? Provides correct load cell loading even
in difficult installations
? Lower overall height compared to other isolated
tension assemblies

Specifications

Applications
? Suspended hoppers and tanks
? Mechanical scale conversions
? Use as a single module or in multiples
Complete kit includes:
? Three or four ITCM assemblies with RL20000ST
NTEP Certified s-beam load cells
? One JB4SS NEMA Type 4X stainless steel signal
trim junction box
? 25ft of our hostile environment EL147HE
SURVIVOR load cell cable

Models

3-Module Kit

46735 Mount Kit,ITCMSS 100lb 3EA 3/8-16NC SST Includes RL20000ST And JB4SS
46736 Mount Kit,ITCMSS 100lb 3EA 1/2-13NC SST Includes RL20000ST And JB4SS
46737 Mount Kit, ITCMSS 250lb 3/8-16NC SST Includes RL20000ST And JB4SS
46738 Mount Kit,ITCMSS 250lb 3EA 1/2-13NC SST Includes RL20000ST And JB4SS
46739 Mount Kit,ITCMSS 500lb 3EA 1/2-13NC SST Includes RL20000ST And JB4SS
46740 Mount Kit,ITCMSS 500lb 3EA 5/8-11NC SST Includes RL20000ST And JB4SS
46741 Mount Kit,ITCMSS 750lb 3EA 1/2-13NC SST Includes RL20000ST And JB4SS
46742 Mount Kit,ITCMSS 750lb 3EA 5/8-11NC SST Includes RL20000ST And JB4SS
46743 Mount Kit,ITCMSS 1K 3EA 1000lb 1/2-13NC SST Includes RL20000ST And JB4SS
46744 Mount Kit,ITCMSS 1K 3EA 5/8-11NC SST Includes RL20000ST And JB4SS
46745 Mount Kit,ITCMSS 2.5K 3EA 2500lb 5/8-11NC SST Includes RL20000ST And JB4SS
46746 Mount Kit,ITCMSS 2.5K 3EA 2500lb 3/4-10NC SST Includes RL20000ST And JB4SS
46747 Mount Kit,ITCMSS 3K 3EA 3/4-10NC SST Includes RL20000SS And JB4SS
46748 Mount Kit,ITCMSS 5K 3EA 5000lb 3/4-10NC SST Includes RL20000ST And JB4SS

4-Module Kit

46751 Mount Kit,ITCMSS 100lb 4EA 3/8-16NC SST Includes RL20000ST And JB4SS
46752 Mount Kit,ITCMSS 100lb 4EA 1/2-13NC SST Includes RL20000ST And JB4SS
46753 Mount Kit,ITCMSS 250lb 4EA 3/8-16NC SST Includes RL20000ST And JB4SS
46754 Mount Kit,ITCMSS 250lb 4EA 1/2-13NC SST Includes RL20000ST And JB4SS
46755 Mount Kit,ITCMSS 500lb 4EA 1/2-13NC SST Includes RL20000ST And JB4SS
46756 Mount Kit,ITCMSS 500lb 4EA 5/8-11NC SST Includes RL20000ST And JB4SS
46757 Mount Kit,ITCMSS 750lb 4EA 1/2-13NC SST Includes RL20000SS And JB4SS
46758 Mount Kit,ITCMSS 750lb 4EA 5/8-11NC SST Includes RL20000ST And JB4SS
46759 Mount Kit,ITCMSS 1K 4EA 1000lb 1/2-13NC SST Includes RL20000ST And JB4SS
46760 Mount Kit,ITCMSS 1K 4EA 1000lb 5/8-11NC SST Includes RL20000ST And JB4SS
46761 Mount Kit,ITCMSS 2.5K 4EA 5/8-11NC SST Includes RL20000ST And JB4SS
46762 Mount Kit,ITCMSS 2.5K 4EA 3/4-10NC SST Includes RL20000ST And JB4SS
46763 Mount Kit,ITCMSS 3K 4EA 3000lb 3/4-10NC SST Includes RL20000SS And JB4SS
46764 Mount Kit,ITCMSS 5K 4EA 3/4-10NC SST Includes RL20000ST And JB4SS
