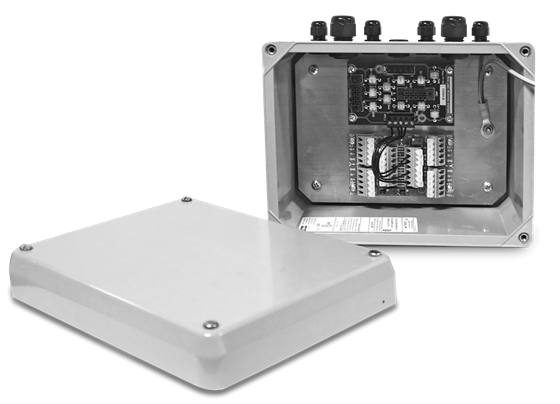

JB4SP and JB4SPT TuffSeal? Signal Trim Junction Box

$0.00

The JB4SP and JB4SPT TuffSeal signal trim junction box sums two or four single load cell outputs with the potential to expand through the included expansion port.

Download product PDF
Category:

Features

  • Fiberglass Reinforced Polyester (FRP), NEMA Type 4X enclosure with stainless steel cover screws
  • Jumpers to enable/disable a load cell
  • PreVent? breather vent
  • Conformal coated circuit board
  • Number of cells: Two, three?or four?single cells
  • Expansion port
Applications
  • Tank and hopper scales

Models

Part #?91780Product DescriptionJ-Box,JB4SP 4 Channel Signal Trim with Expansion, FRP Nema 4 FM Approved

Part #?165272Product DescriptionEnclosure,JB4SP/SPT Only JB4SP/SPT/EP/EPT Junction Box Enclosure w/o Cord Grips and Filter. Includes Backplate, Cover and Gasket.

Part #?92762Product DescriptionJ-Box,JB4SPT 4 Channel Signal Trim with expansion, FRP Nema 4 with transient protection

Part #?88958Product DescriptionBoard,4 Channel ST Signal Trim w/Expansion

Part #?89894Product DescriptionBoard ASSY,Transient GDT Summing Box transient protection board
