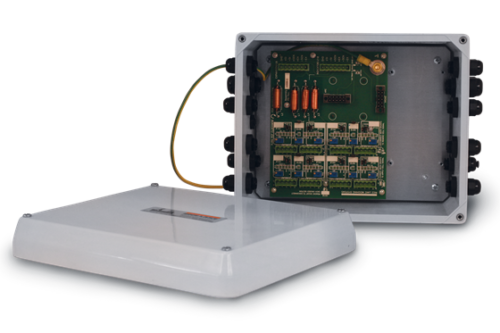

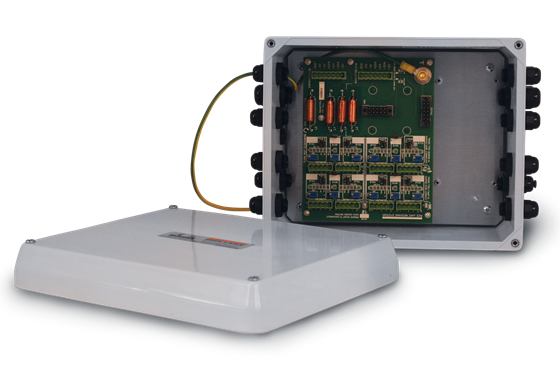

JB8SPT TuffSeal Signal Trim Junction Box

$0.00

The JB8SPT TuffSeal signal trim junction box with transient protection is the optimal choice for truck, livestock and railroad scales susceptible to potentially destructive outdoor elements.

Download product PDF
Category:

Features

  • Fiberglass Reinforced Polyester (FRP), NEMA Type 4X enclosure
  • PreVent? breather vent
  • Conformal coated circuit board
  • Removable load cell connectors
  • Section and individual cell trim capability
  • Field replaceable transient protection
  • (1)?coupling, 1/2 NPT cord grip to 3/4 in NPT conduit fitting for homerun cable
  • Number of cells: Two, four, six?or eight?single load cells (even number only)
  • Expansion board
Applications
  • Truck, livestock, and railroad scales

Models

Part #?91783 Product DescriptionJ-Box,JB8SPT 8 Channel Signal Trim with Expansion, FRP Nema 4 with transient protection
Part #?89889 Product DescriptionBoard,8 Channel ST Signal Trim And Section Trim w/Expansion
Part #?89894 Product DescriptionBoard ASSY,Transient GDT Summing Box transient protection board
Part #?165273 Product DescriptionEnclosure,JB8SP/SPT Only JB8SP/SPT Junction Box Enclosure W/O Cord Grips and filter. Incl Back plate, cover and gasket.
