LaserLight2 Remote Display

Display:
6-digit, 7-segment discrete oval red LED lamps
Contrast enhanced optical filtering lens
1- or 2- place decimal or comma indication
4 annunciators for GR, NT, lb, kg

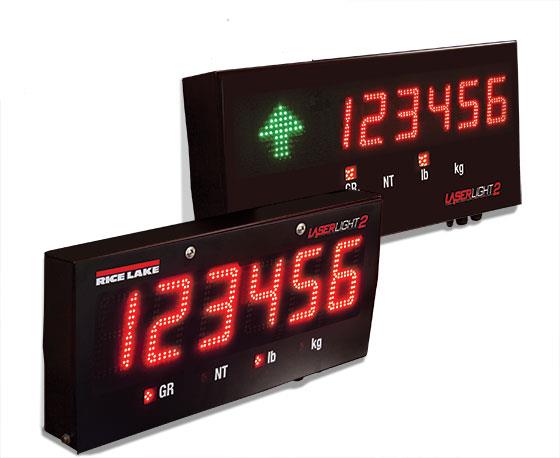

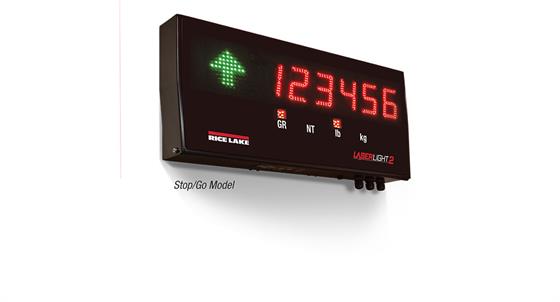

4-inch red, green ball/arrow in Stop/Go model
Maximum Viewing Distance:
4 in: 250 ft (75 m)
6 in: 300 ft (100 m)
Input Interface:
RS-232, RS-485, 20 mA current loop (active or passive, switch selectable)
Output Interface:
Independently configurable echo out port, RS-232 or 20 mA current loop
(active or passive, switch selectable)

Input Data Format:
Baud Rate: 1200, 2400, 4800, 9600 and 19200 self-learning
or software selectable
Character Format:
7 or 8 data bits; even, odd, or no parity; 1 or 2 stop bits, self-learning?or software selectable
Update:
Continuous or out-of-motion only; software selectable
Power Consumption:
4 in: 21 watt
6 in: 27 watt
Time:
Software enable/disable, 12- or 24-hour format
Date:
Software enable/disable, US or ISO format

Rating/Material:
IP66 weather tight, mild steel, powder coated
Dimensions:
4-inch (L x H): 22.28 in x 9.8 in
6-inch (L x H): 30.63 in x 12.77 in
Stop/Go (L x H): 30.63 in x 12.77 in
(flanges add 2.00 in width)
Weight:
4 in: 20 lb (9 kg)
6 in: 25 lb (11 kg)
Operating Temperature Range:
0?F to 120?F (-18?C to 49?C)
Warranty:
Two-year limited warranty
Approvals:
UL/cUL on specific part numbers
