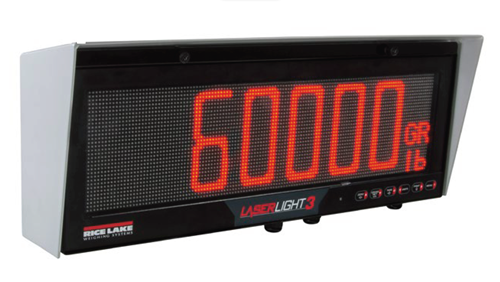

LaserLight3 Color Large-Display Weight Indicator

$0.00

Download product PDF
Category:

Features

  • Available with 128 × 32-pixel color display
  • Displays six high-intensity digits up to 5 in height
  • Adjustable daylight/night intensity
  • Mirror mode (reverse image) function
  • Durable weather tight enclosure with flip-down door
  • Flat-wall mounted or add VESA or offset mount

Options

  • Wireless LAN, Wi-Fi interface 802.11 a/b
  • Wireless interface, pair of ConnexLink™ radios and mount
  • Pole mount kit, VESA flat wall for 2 to 6 inch pole (W × H) 200 × 100 mm, 6 fasteners (M4 x 8 mm)
  • Sunshade visor, 8-inch painted steel

Specifications

Power:
AC voltages: 100 to 240VAC; 50/60Hz
120 watt (120 VAC)

Output Interface:
Ethernet TCP/IP, independently configurable echo port

Input Data Format:
Baud rate: 1200, 2400, 4800, 9600, 19200, 38400, 57600 and 115200 self-learning or configurable

Update:
Continuous or out-of-motion modes
Message interrupt mode

Digital I/O:
Four I/O read or set
5V logic

Communication Ports:
Ethernet TCP/IP, RS-232, RS-485, 20 mA
Optional ConnexLink™ wireless radio, WLAN interface 802.11 a/b

Character Format:
7 or 8 data bits; even, odd, or no parity; 1 or 2 stop bits

Maximum Viewing Distance:
4-inch character 100 ft (30 m)
5-inch character: 150 ft (46 m)

Viewing Angle:
160­°

Display:
Bright, outdoor color LED lamps
128- × 32-pixel, 4 mm pitch
Decimal or comma indication
Weight display with units and mode
Message display 1, 2 or 4 lines

Keys/Buttons:
Zero, Gross/Net, Tare, Units, Print, Menu

Time:
Software enable, 12 or 24 hour format

Date:
Software enable, US or ISO format

Dimensions:
(L x W × H)
25 × 10 × 6 in

Temperature Range:
Operating: -40 °F to 120 °F (-40 °C to 49 °C)

Rating/Material:
IP66
Mild steel, powder-coated

Weight:
20 lb (9 kg)

Warranty:
Two-year limited

Approvals:
NTEP CC 22-096
Measurement Canada AM-6210C

Options

212745 Pole Mount,LaserLight3 Using VESA bracket 2-Inch To 6-Inch Poles
75856 Pole,Mount Kit LaserLight2 4 inch Remote Display & LaserLight3 , Summit Gray
208807 Sunshade,LaserLight3
209118 Ind Opt,Wireless LAN Card RS232/WiFi Interface 802.11 A/B 10/100 XPico for LaserLight3
212753 LaserLight3 RF Kit ConnexLink Transceiver Kit
