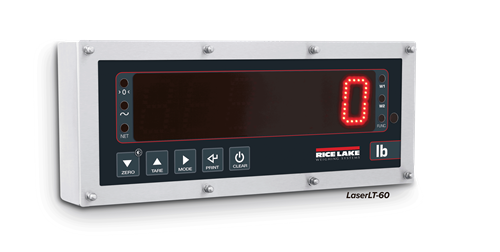

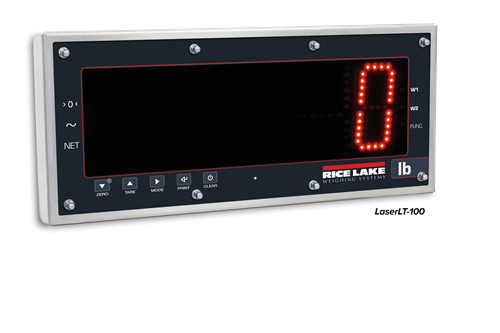

LaserLT-60 and LaserLT-100 Remote Displays/Weight Indicator
$0.00
Stainless Steel Remote Displays
Use the LaserLT-60 and LaserLT-100 remote displays to clearly display weight information at distances up to 150 feet. The displays are ideal for applications where weight needs to be viewed from a distance. Both the LaserLT-60 and the LaserLT-100 operate with a range of weight indicators to easily integrate with any system. The incoming format can be interfaced through a set function or with a manual setup.
The LaserLT-60 and LaserLT-100 are designed for indoor, outdoor and washdown applications. With adjustable brightness, the six-digit, seven-segment character LED displays are easy to read even in direct sunlight.
The stainless steel enclosure is weathertight with an IP68 rating. With a standard anti-condensation air valve regulating humidity and pressure, these displays are protected for outdoor use. The LaserLT-60 and LaserLT-100 are easy to mount with standard back brackets or optional side-mounting brackets. The back brackets have a 15-degree angle for clear visibility from below and side-mounting brackets can be used to support, hang or wall mount the remote display.
With SCT-1100 firmware loaded, configurable as a weight indicator
Max 10,000 divisions or multi-range
A/D 24 bit 4-channel conversion
Connect 4 cells with summing or up to 4 independent weighing systems
Manual configuration for format length, weight location, termination character
Manual Configuration mode for reading weight, variables and bitmap bytes
Parameters for motion, overload, decimal point, net character, COZ
Status LEDs for Zero, Motion, Net, Unit 1, Unit 2
Integrated five-key waterproof keypad with configurable scale commands
Adjustment for six levels of brightness through the keypad
Includes removable back wall mount bracket
Fitted with anti-condensation air valve to regulate humidity and pressure
Specifications
Power: AC voltages: 110 to 240 VAC
DC voltages: 12 to 24 VDC
Display:
6-digit, 7-segment discrete red LED lamps, single width
2.4 in (60 mm) or 4 in (100 mm) digit
Decimal/comma indication in any position
Annunciators for NT, Stability, COZ
Maximum Viewing Distance:
LaserLT-60: 2.4 in digit 75 ft (25 m)
LaserLT-100: 4 in digit 100 ft (30 m)
Communication Ports: RS-232, RS-485
Input Data Format:
Baud rate: 1200 to 115.2 K software selectable
Even parity 7 data bits, or no parity 8 data bits
Update:
Software selectable 1-20/sec
Digital I/O:
Two inputs, 12 to 24 VDC
Two outputs, 48 VAC, 60 VDC max
Rating/Material:
304 stainless steel, IP68
Weight:
10 lb
Operating Temperature:
-40 °F to 120 °F (-40 °C to 49 °C)
Warranty:
One-year limited
Approvals:
CE Marked
Options
185253
DSPL,Remote LaserLT-60 Red 60mm (2.4in) LED,12-24VDC/110-240VAC, SST IP68 Enclosure
185255
DSPL,Remote LaserLT-100 Red 100mm(4in)LED, 12-24VDC/110-240VAC, SST IP68 Enclosure
