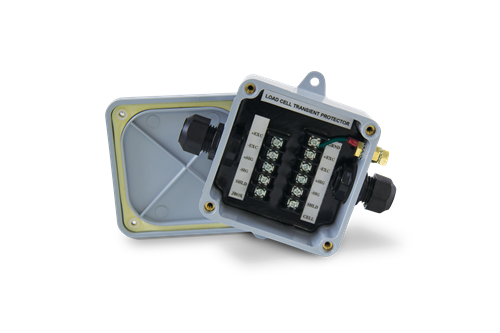

LCP-1 DC Transient Protector

Specifications

Protection Type:
Four-channel series type with separate shield

Maximum Excitation Voltage Rate:
18 VDC or 18 VAC

Clamping Voltage:
75 VDC or 75 VAC

Clamping Time:
<100 nanoseconds typical Peak Surge Currents: 5,000 amps any line to ground and 5,000 amps excitation to excitation Maximum Serial Transmission Rate: 30 Kbaud Grounding: Through a 0.25 in lug to a 20 ft insulated #10 AWG ground wire provided Cable Fitting: (2) Standard nylon strain relief for 0.187 to 0.312 in diameter cable Enclosure: Chemically-resistant PVC. This device, for outdoor or indoor service, is not intended for washdown service (NEMA 4) or for submersion (NEMA 6). Optional NEMA 4X available. Operating Temperature: 14 °F to 104 °F (-10 °C to 40 °C) consistent with NTEP guidelines Leakage: 7,500 M ohm minimum Dimensions: (L x W x H) 4.0 × 4.0 × 2.50 in Warranty: One-year limited
