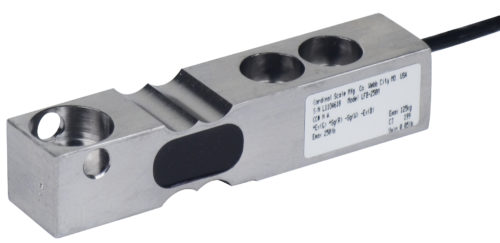

LFB series shear beam load cell

$0.00

Cardinal Scale?s 125-kg to 1,250-kg capacity LFB series shear beam load cells have a low profile design that can be mounted directly to the weighing platform. They are made specifically for light to medium weighing applications like floor scales. Their design makes them highly resistant to eccentric loads. These load cells are potted with a proprietary sealant that offers water resistance, while remaining flexible over the life of the load cell. This special compound protects the load cell strain gauges over broad temperature changes. OIML certified.

Download product PDF
Categories: ,

Features

  • Environmentally-Sealed
  • IP67 Protection Class
  • OIML Certified
  • Precision Engineering
  • VCAP Certified

Specifications

OIML Approval:?R60/1991-DK-00.02
Cable Length:?LFB-250M/PFB-250P: 67 in / 170 cm; LFB-500HMT, LFB-1000HMT, and LFB-2500HMT: 120 in / 304 cm
Accuracy Class:?C3
Minimum Dead Load:?0 kg
Safe Load Limit:?150% R.C.
Ultimate Load:?300% R.C.
Rated Output:?2mV/V
Protection Class:?IP-67

Models

LFB-250P Load Cell, Shear Beam, 125 Kg, Nickel Plated Alloy
LFB-500HMT Load Cell, Shear Beam, 250 Kg, Stainless Steel
LFB-1000HMT Load Cell, Shear Beam, 500 Kg, Stainless Steel
LFB-2500HMT Load Cell, Shear Beam, 1250 Kg, Stainless Steel
