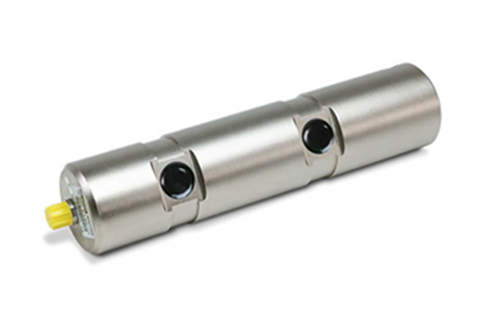

Load Pin – 2.5 Inch 20K Alloy Steel, Environmentally Sealed
$0.00
Download product PDF
Specifications
Full Scale Output:
1.3 mV/V
Output Resistance:
350 (nominal)
Input Resistance:
350 (nominal)
Material/Finish:
Alloy steel |
Temperature:
14° F to 104° F (-10° C to 40° C)
Rated Excitation:
15 VDC (5-10 V recommended)
Insulation Resistance:
500 megaohms at 50 VDC
Seal Type:
Environmentally sealed |
Connector Type:
Turck, M12 4-pin male
Connection Pin Out:
Pin 1 – Excitation +
Pin 2 – Signal +
Pin 3 – Excitation –
Pin 4 – Signal –
Warranty:
One-year limited warranty |
