LS-WIM Weigh-In-Motion Axle Scales

$0.00

  • Small Overall Footprint with 13′?Width Weighs Large Equipment
  • Unmanned Gate Operation with Data Collection
  • System Capacity up to 100,000 lb (45,000 kg) Per Axle
Download product PDF
Category:

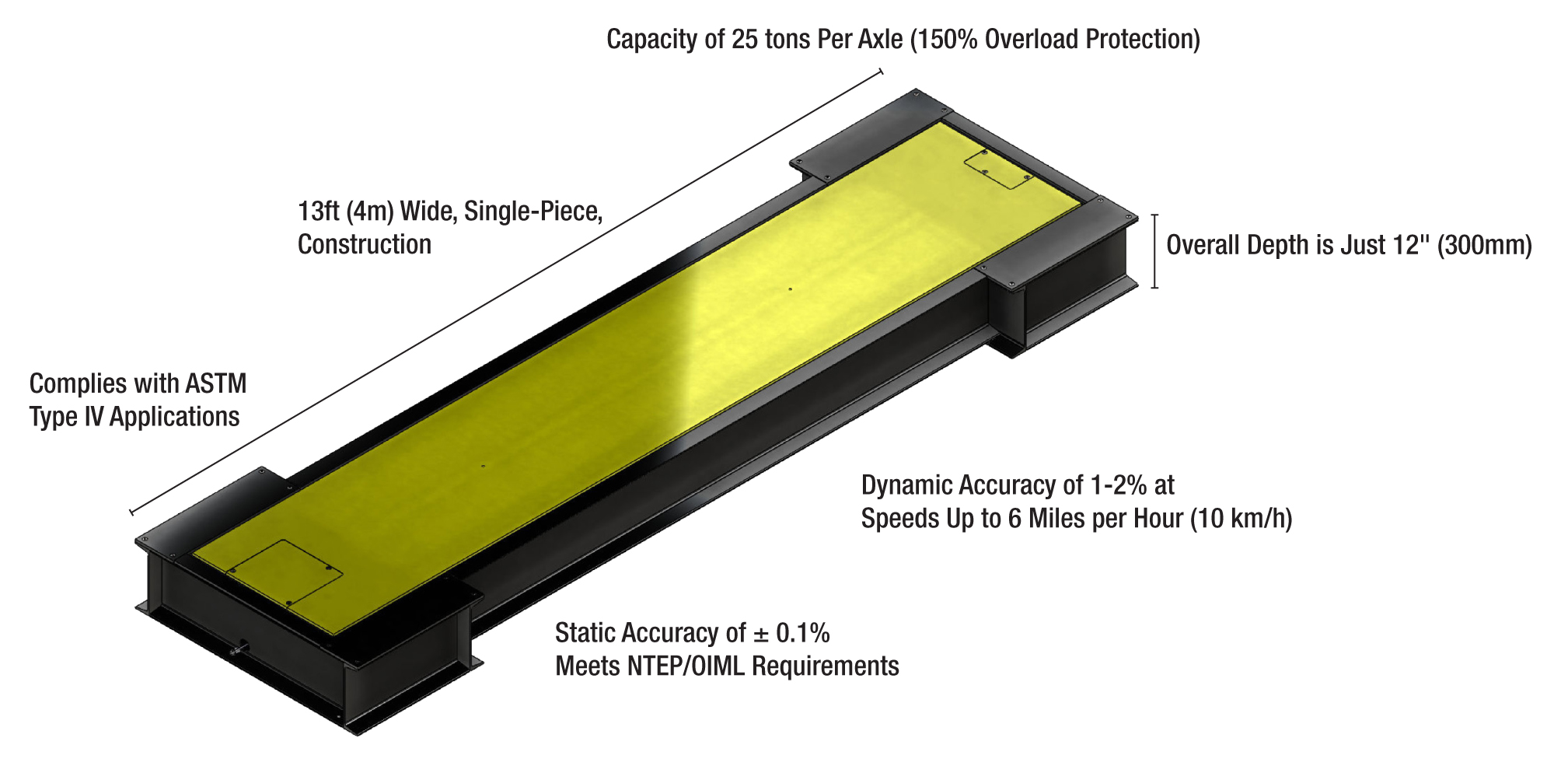

Features

  • Capacity of 25 tons Per Axle (150% Overload Protection)
  • Static Accuracy of ? 0.1%. Meets NTEP/OIML Requirements
  • Overall depth is just 12″ (300 mm)
  • Complies with ASTM Type IV Applications
  • Dynamic Accuracy of 1-2% at Speeds Up to 6 Miles per Hour (10 km/h)
  • 13 ft (4 m) Wide, Single-Piece, Construction

Specifications

Intercomp Low-Speed Weigh-In-Motion (LS-WIM) scale technology uses integrated shear beam load cells?which are certified for accuracy and performance by US and European government metrology authorities.?Low-Speed Weigh-In-Motion provides greater precision for applications which include checkweighing and monitoring compliance, issuing citations, or charging by weight. Installation and maintenance is less expensive than standard truck scales.

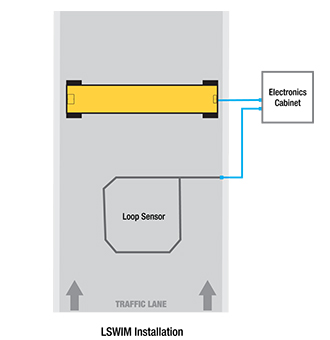

Typical Configuration

Options

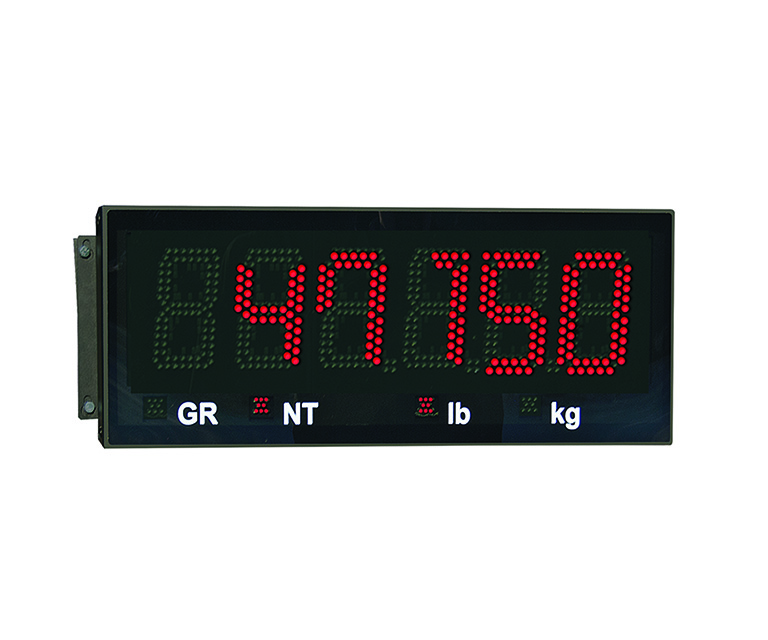

LED Display with
Stop/Go Light

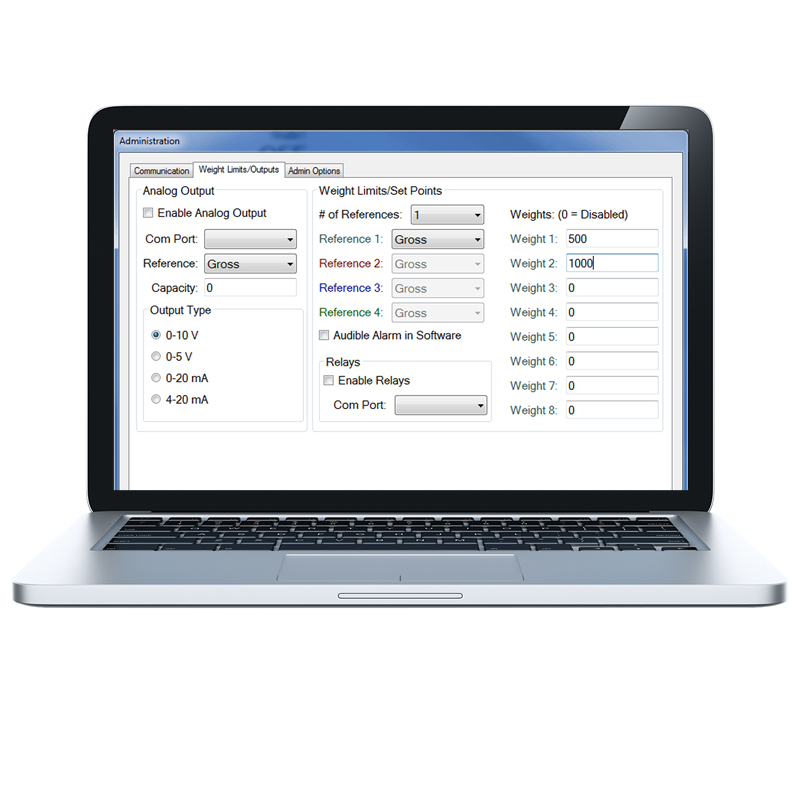

IntercompWIM?
Software

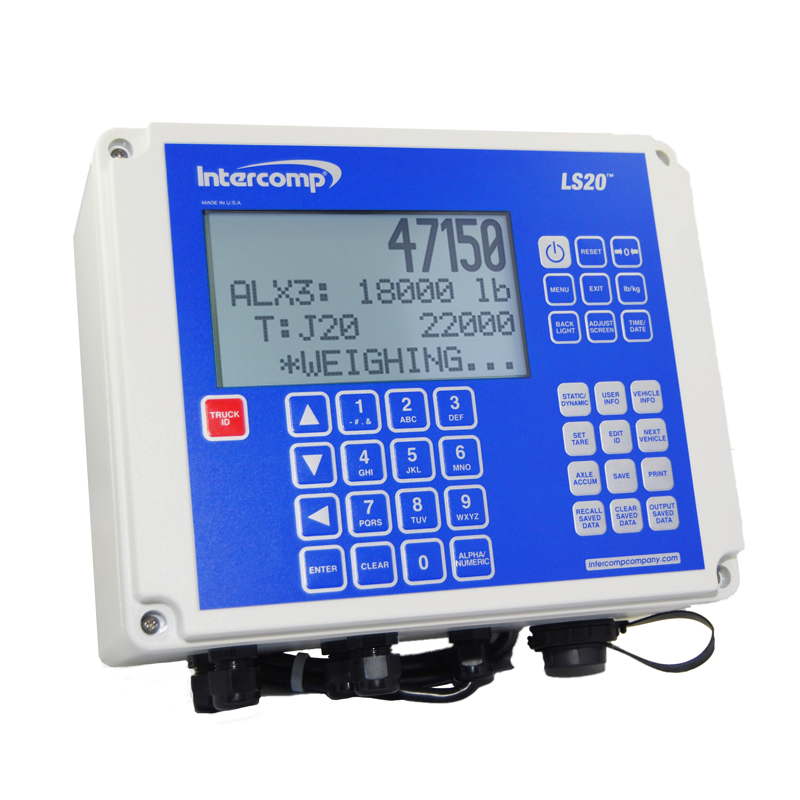

LS20? WIM
Indicator
