A top plate allows easy access to load cells and bumper bolts in a concrete deck design. The scale platform arrives ready for the field pouring of concrete. With stainless steel beam cells and a low 10-inch profile that cuts foundation costs to a minimum, this livestock scale requires the most minimal economical foundation work and easy to install. Platform sizes are available in 18, 20, 30 or 35 ft lengths by 10 ft wide measurements, with either a 10 or 16-ton weight capacity. Livestock rack not included. These efficient farm scales provide an economical approach to agricultural weighing. NTEP legal-for-trade certified.

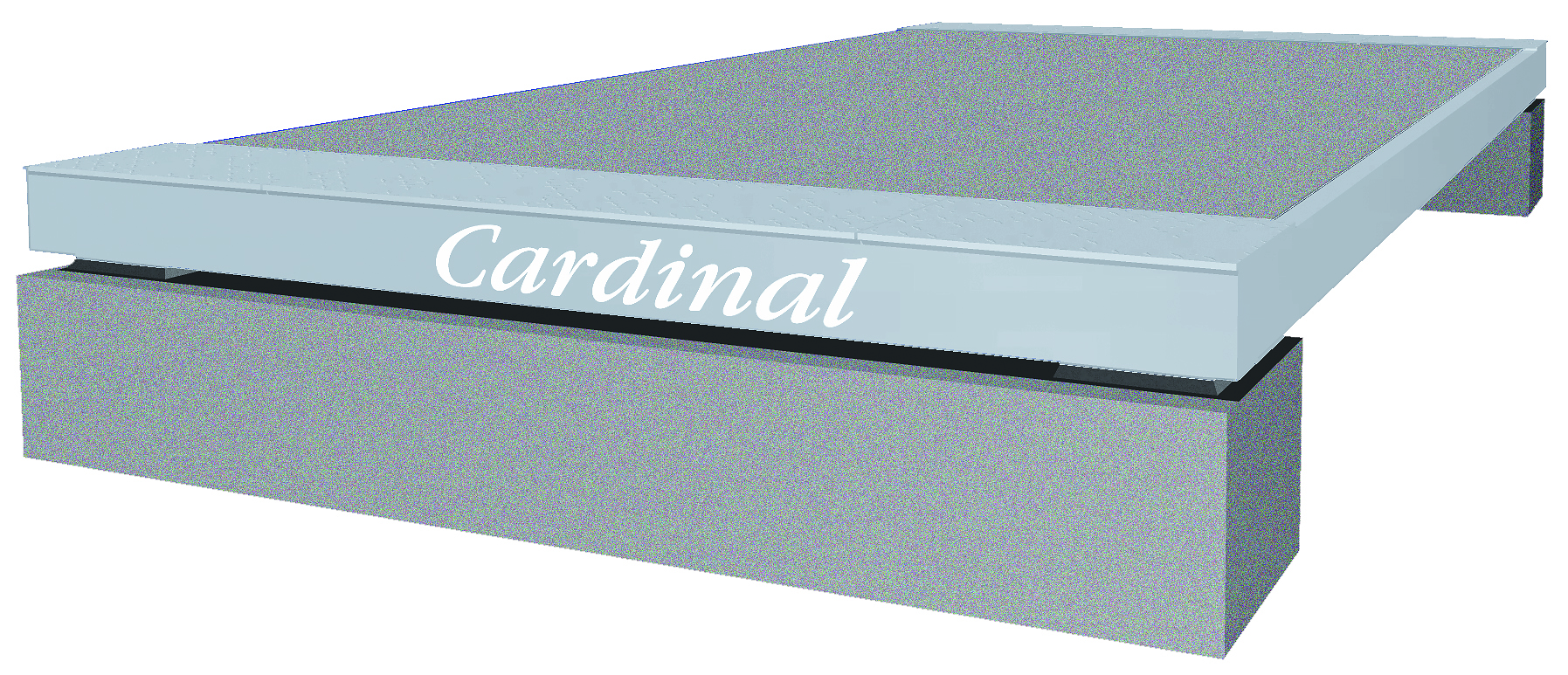

Concrete Deck Weighing Platform (arrives ready for the field pouring of concrete)
Low-Profile 10-in Height
NTEP Legal for Trade
Stainless Steel Load Cells
Platform Sizes: 18, 20, 30, and 35 ft Lengths Available
10-ft Wide Decks
10 or 16 ton Capacity
Specifications
NTEP Approval: 97-043 Capacity: 10 or 16 ton Platform Sizes: 18, 20, 30, or 35 ft lengths by 10 ft wide Platform Height: 10 in Deck: Ready for the field pouring of concrete
Models
LSE1018
Livestock Scale, 18′ x 10′, 10 Ton Capacity, Concrete Deck
Call For Pricing
LSE1020
Livestock Scale, 20′ x 10′, 10 Ton Capacity, Concrete Deck
Call For Pricing
LSE2030
Livestock Scale, 30′ x 10′, 20 Ton Capacity, Concrete Deck
Call For Pricing
LSE2035
Livestock Scale, 35′ x 10′, 20 Ton Capacity, Concrete Deck
