MagnaMount® Tank, Truck, Rail Assembly

$0.00

Constant Load Cell Protection

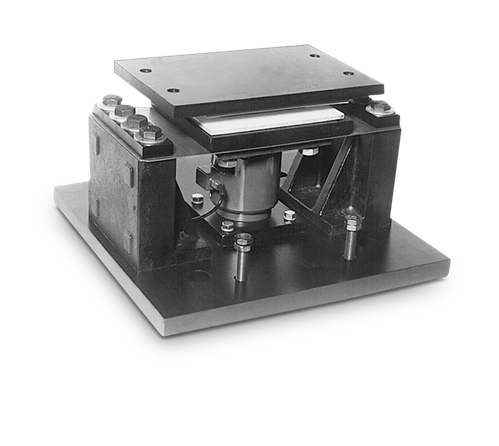

The MagnaMount tank, truck and railroad scale assembly is designed for use with Rice Lake Weighing Systems’ RLCSP1 or VPG Revere CP or CSP load cells. The “shielded cell” load cell mounting assembly is a highly reliable design that shields the load cell from shock and side load effects, assuring accurate weighing even under adverse loading conditions.

Applications:

  • Truck scale mount*
  • Heavy-capacity horizontal tanks*
  • Railroad track mount*

    *Check rods required

Download product PDF
Categories: ,

Features

MagnaMount® Tank, Truck, Rail Assembly

  • Capacities (per module): 50,000 lb, 100,000 lb and 200,000 lb
  • Protects load cell from shock and side loads
  • Low-profile design
  • High-strength load bearing plate made of highgrade carbon steel hardened to Rockwell C 48-54
  • PTFE-coated shock absorbing pads
  • Compatible with VPG® Revere CP and CSP and Rice Lake Weighing Systems® RLCSP1 NTEP Certified load cells

Specifications

Rated Capacity C H L L1 L2 L3 L4 T W W1 W2 W3 W4 W5
lb/in
50,000 1.25 7.39 13.00 1.75 11.25 8.50 1.37 3/4-10 UNC 12.00 1.75 8.50 8.00 4.50 1.75
100,000 1.50 11.29 20.00 2.25 18.00 15.50 1.25 7/8-9 UNC 17.00 2.50 12.00 9.00 5.50 1.75
200,000 2.00 14.10 26.00 5.00 19.00 16.00 1.50 1-8 UNC 26.00 5.00 16.00 12.50 5.50 3.50
