Mechanical Portable

$0.00

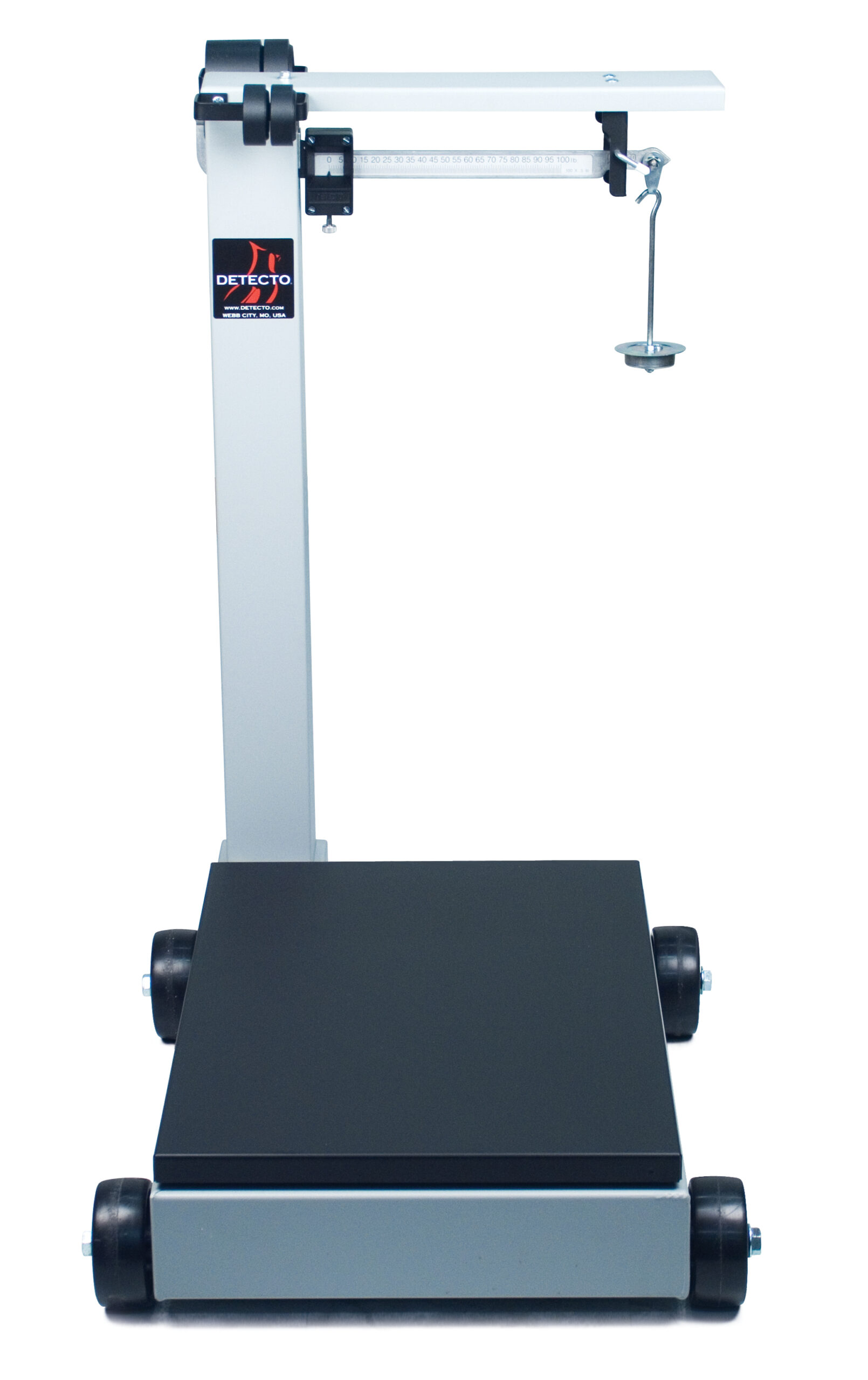

The 854F portable weighbeam series scales comes in five different capacities to select from and they are constructed entirely of heavy-duty welded steel with electrostatic powder paint coating for long life. These mechanical rolling scales are NTEP and Measurement Canada certified, available in metric or avoirdupois (lb) or both, and have a 19 in W x 28 in D / 48 cm W x 71 cm D platform. They may be used in receiving, agriculture, warehousing, or general industrial weighing. No power is required, so they are completely portable. The four 5-in/13-cm diameter rubolene wheels provide maneuverability. The weights and hanger are included.

These legal-for-trade portable floor scales let the weighing come to you. They offer maintenance-free operation through their lever system and require no power to operate, providing years of trouble-free use in tough environments. The die-cast beam with easy-to-read numbers is viewable on the front and back. These scales are ideal for weighing propane tanks and use in hazardous locations due to their mechanical design. The 854F series is adaptable for versatile use in receiving departments, inventory management, commercial foodservice, in-plant weighing, material handling, bag filling, and general weighing applications. It is lightweight (116 lb / 53 kg net weight) and easy to maneuver with its four large rubolene wheels. The 854F series is suitable for environments that require intrinsically safe equipment and locations without access to electricity.

Download product PDF
Category:

Features

  • Ideal for weighing propane tanks
  • May be used in hazardous locations due to their mechanical design
  • 5 different capacities available to choose from
  • Constructed entirely of heavy-duty welded steel
  • Electrostatic powder paint coating for long life
  • 19 in W x 28 in D / 48 cm W x 71 cm D platform
  • 5 in / 13 cm diameter rubolene wheels for maneuverability
  • Die-cast weighbeam may be read from either side
  • NTEP and Measurement Canada certified
  • Available in metric or avoirdupois (lb) or both
  • Weights and hanger included
  • Use in receiving, agriculture, warehousing, or general industrial weighing
  • No power required for complete portability
  • Suitable for environments that require intrinsically safe equipment
  • Also available in digital models (see 5852F/8852F series)

Specifications

​854F100P:
Capacity: 1,000 lb
Front of Beam: 100 lb x 1/2 lb
Back of Beam: 100 lb x 1/2 lb
Platform Dimensions: 19 in W x 28 in D / 48 cm W x 71 cm D
Overall Dimensions: 24.1 in W x 35 in D x 41.9 in H / 61.2 cm W x 88.9 cm D x 106.4 cm H
UPC Code: 809161114201

​854F50P:
Capacity: 500 lb
Front of Beam: 50 lb x 1/4 lb
Back of Beam: 50 lb x 1/4 lb
Platform Dimensions: 19 in W x 28 in D / 48 cm W x 71 cm D
Overall Dimensions: 24.1 in W x 35 in D x 41.9 in H / 61.2 cm W x 88.9 cm D x 106.4 cm H
UPC Code: 809161114300

​854F50K:
Capacity: 500 kg
Front of Beam: 50 kg x 1/4 kg
Back of Beam: 50 kg x 1/4 kg
Platform Dimensions: 19 in W x 28 in D / 48 cm W x 71 cm D
Overall Dimensions: 24.1 in W x 35 in D x 41.9 in H / 61.2 cm W x 88.9 cm D x 106.4 cm H
UPC Code: 809161114409

​854F50PK:
Capacity: 500 kg / 200 kg
Front of Beam: 20 kg x 100 g
Back of Beam: 50 lb x 1/4 lb
Platform Dimensions: 19 in W x 28 in D / 48 cm W x 71 cm D
Overall Dimensions: 24.1 in W x 35 in D x 41.9 in H / 61.2 cm W x 88.9 cm D x 106.4 cm H
UPC Code: 809161114508

​854F100PK:
Capacity: 1,000 lb / 500 kg
Front of Beam: 50 kg x 1/4 kg
Back of Beam: 100 lb x 1/2 lb
Platform Dimensions: 19 in W x 28 in D / 48 cm W x 71 cm D
Overall Dimensions: 24.1 in W x 35 in D x 41.9 in H / 61.2 cm W x 88.9 cm D x 106.4 cm H
UPC Code: 809161114607




Platform, Base, and Column: Mild steel with gray and black powder coat paint
Wheels: 5 in / 13 cm diameter x 2 in / 5 cm depth rubolene with 550 lb load rating
Net Weight: 116 lb / 53 kg
Shipping Weight: 125 lb / 57 kg
Certifications: NTEP (CC 88-106 ) Measurement Canada (S.WA-4097 )
Country of Origin: USA

Models

854F100P Portable Scale, Mechanical Beam, 19″ x 28″, 1,000 Lb Capacity Call For Pricing
854F50P Portable Scale, Mechanical Beam, 19″ x 28″, 500 Lb Capacity Call For Pricing
854F50K Portable Scale, Mechanical Beam, 19″ x 28″, 500 Kg Capacity Call For Pricing
854F50PK Portable Scale, Mechanical Beam, 19″ x 28″, 500 Lb / 200Kg Capacity Call For Pricing
854F100PK Portable Scale, Mechanical Beam, 19″ x 28″, 1,000 Lb / 500Kg Capacity Call For Pricing
