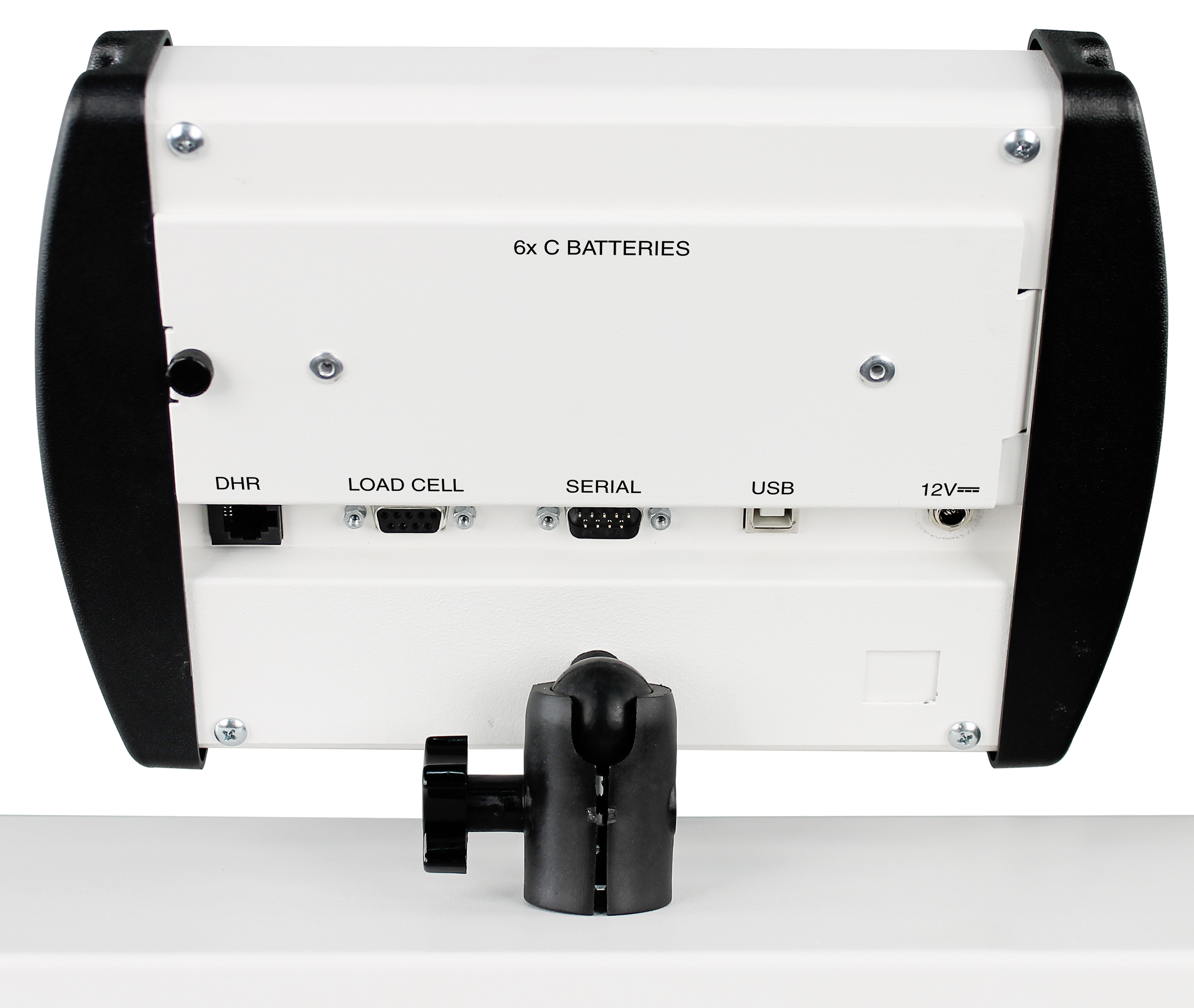

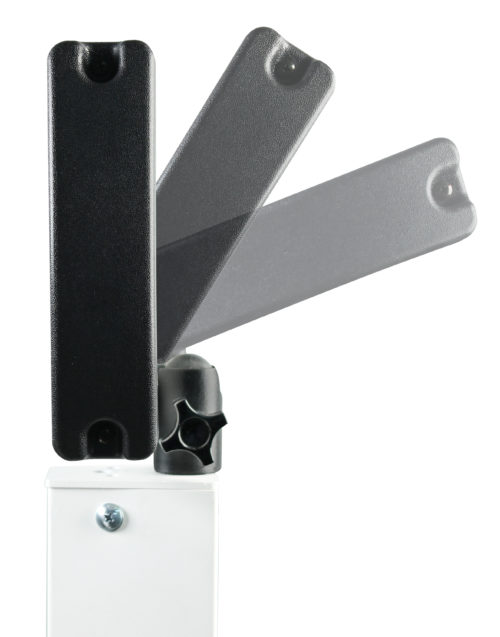

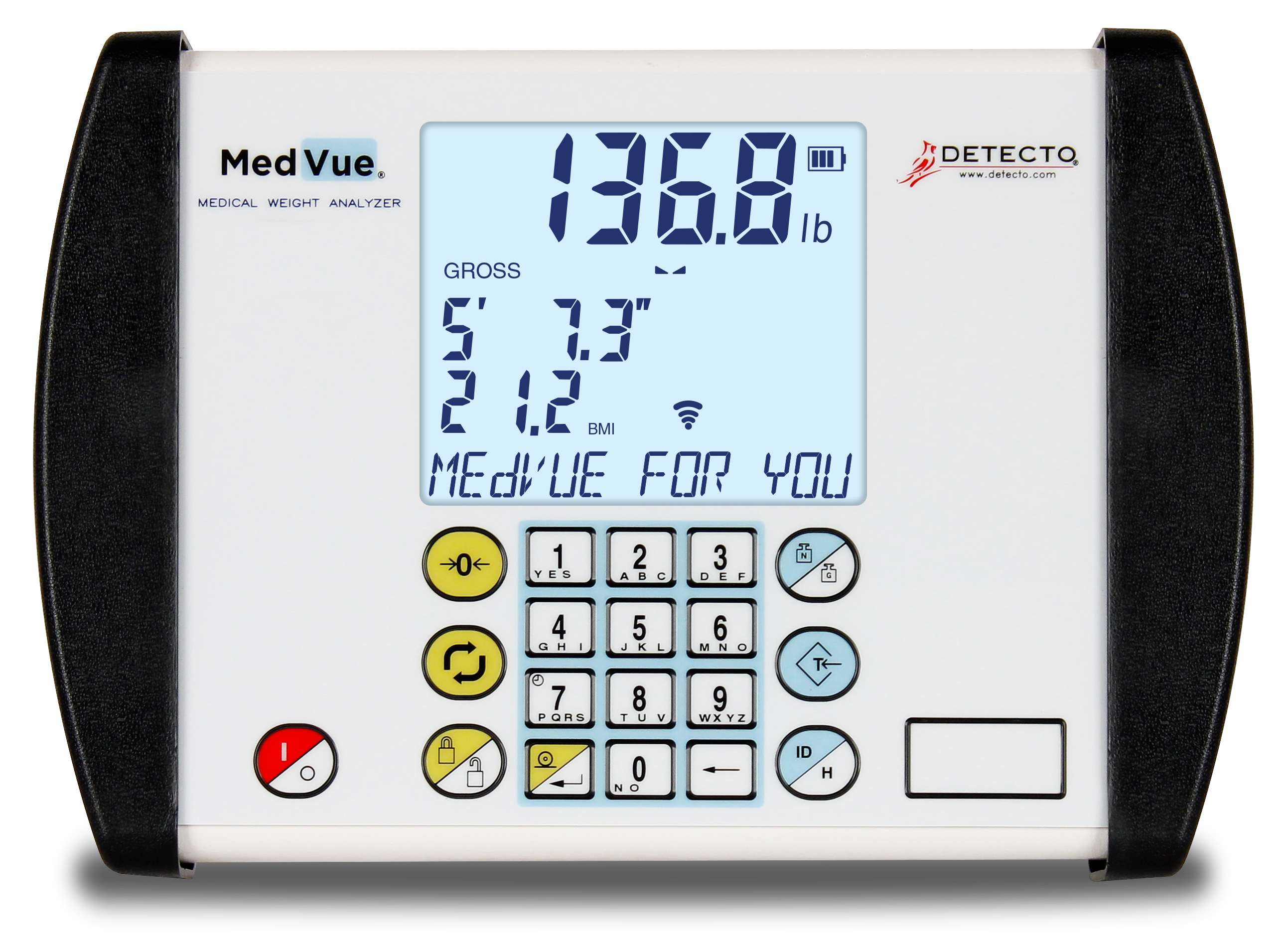

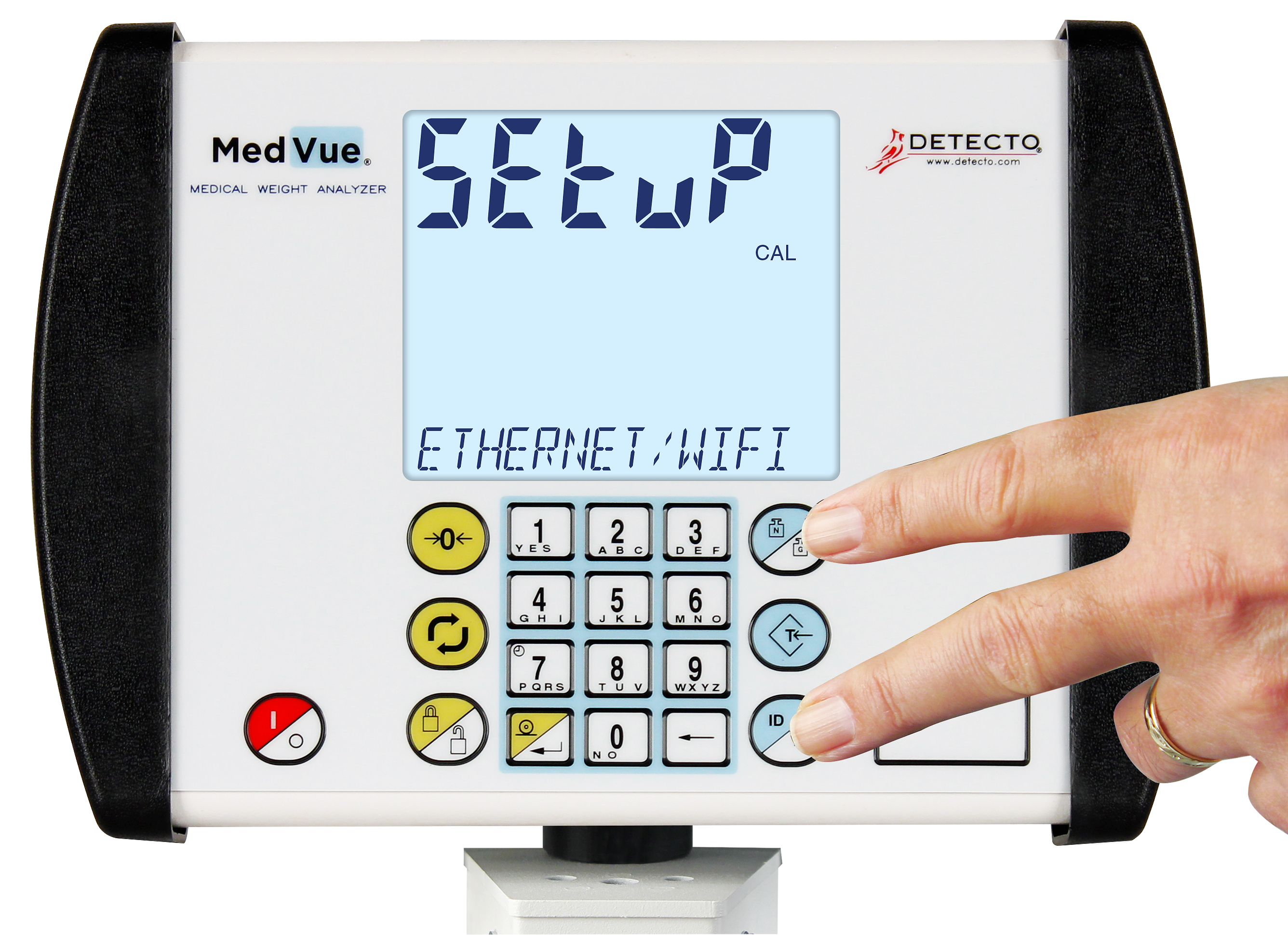

DETECTO?s MedVue medical weight analyzer is utilized on select clinical scales. The MedVue features a vivid 3.5-in-wide by 3-in-high backlit LCD display screen with nearly 1-in-high weight digit readouts for easy visibility. The MedVue?s 350-degree swivel mounting bracket allows the display to be tilted and rotated into position wherever it is the most convenient for the medical professional and/or patient to view. A host of other benefits include 14-digit patient ID which may be entered via the alphanumeric keypad, 99 stored tare weights, 200 stored transactions, 1LOOK display, and four different languages available in set-up (English, Spanish, French, and German). The MedVue offers a host of both wired and optional wireless connectivity for sending measurement data to multiple devices all at once.

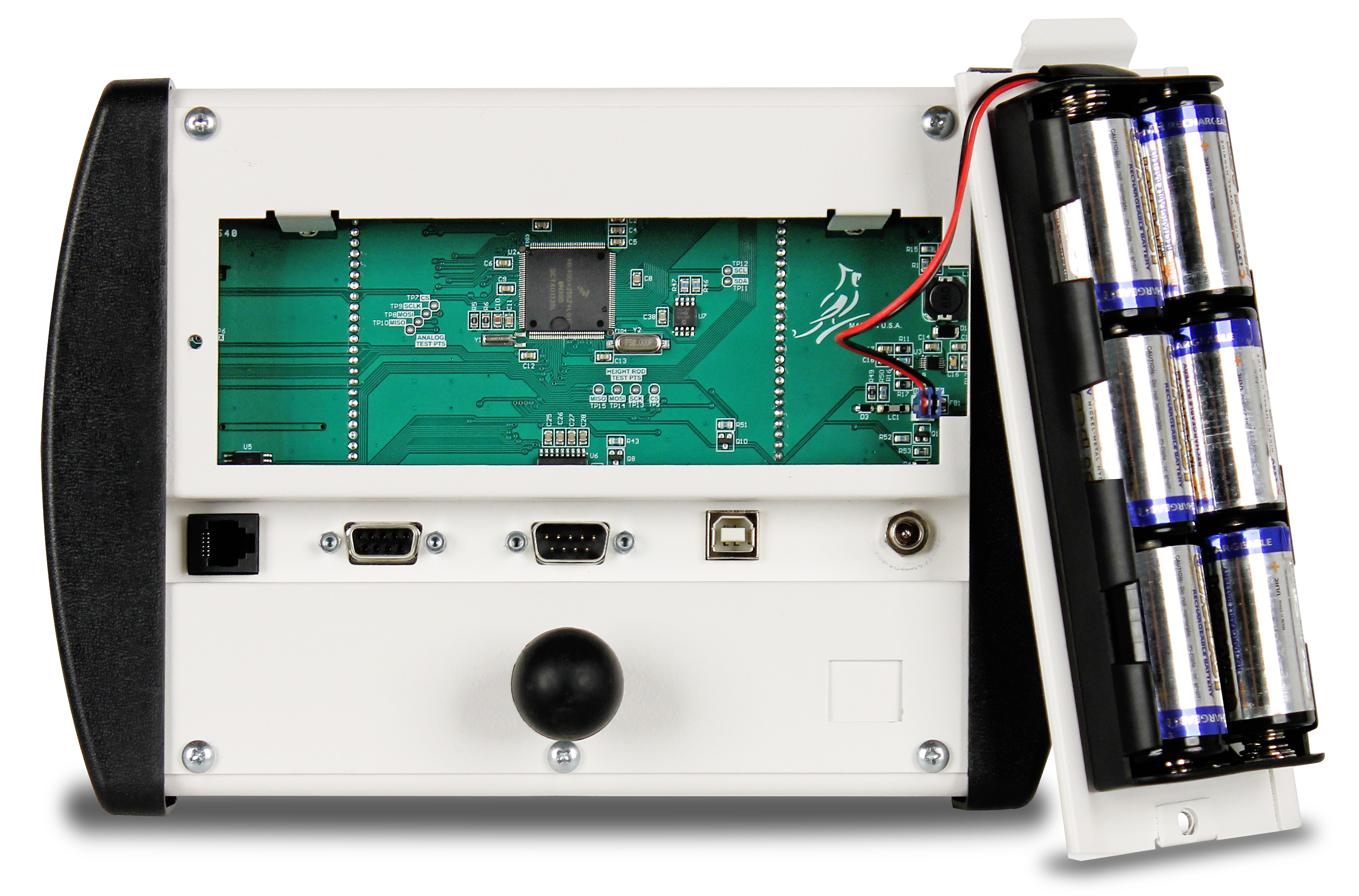

Power Requirements: 6 ?C? cell Alkaline, Ni-Cad or NiMH batteries (not included) OR an optional 12 VDC 1.25A wall plug-in AC power adapter (Detecto part number MV1PWR) Overall LCD Display Size: 3.5 inch W x 3 inch H (89 mm W x 76 mm H) backlit blue LCD Weight Display: 5 digit, seven segment, 0.875 inch (22.23 mm) high LCD Height Display: 4 digit, seven segment, 0.5 inch (12.7 mm) high LCD Body Mass Index Display: 3 digit, seven segment, 0.5 inch (12.7 mm) high LCD ID Display: 14 digit, 14 segment, 0.35 inch (8.89 mm) high LCD Sensitivity: 0.5 uV/division (0 to 3.0 mV/V), Class III Operating Temperature: 14 to 104 ?F (-10 to +40 ?C) Signal Input Range: 0 to 15mV max. Transducer Excitation: 5.0 VDC Number of Load Cells: up to 4 each 350 ? Load Cell Cable Length: 30 feet (9 meters) max. Resolution: 10,000 divisions Capacities: eight: 10,000 divisions commercial – Height: 0 – 9? 11.9 – BMI: up to 999 NTEP: Certificate of Conformance Number 13-011 Division Value: 1, 2 or 5 x 1, 0.1, 0.01, 0.001 Sample Rate: 1 to 100 samples per second selectable Auto Zero Range: 0.5 or 1 through 9 divisions Weighing Units: Pounds (lb), Pounds/Kilograms (lb/kg), Kilograms (kg) and Kilograms/Pounds (kg/lb) Keyboard: Membrane type with 19 keys Enclosure Size: 9.8 inch W x 6.8 inch H x 1.8 inch D (248.9 mm W x 172.7 mm H x 45.7 mm D) Construction: Painted Steel Battery Life: 7,560 weighments (with backlight fully ON) / 10,620 weighments (with backlight fully OFF) LCD Viewing Range: Up to 30 feet / 10 meters for weight digits
Options
MV1PWR
Medical Grade Power Supply With US Plug
MVIP
Wired Ethernet Option Card
MVMK
MedVue Mounting Kit (Swivel Ball Socket)
MVMK1
MedVue Mounting Kit with 3P Top Plate
MVMK2
MedVue Mounting Kit with 6550 Transition Plate
MVMK3
MedVue Mounting Kit with Desktop / Wall Mount Bracket
