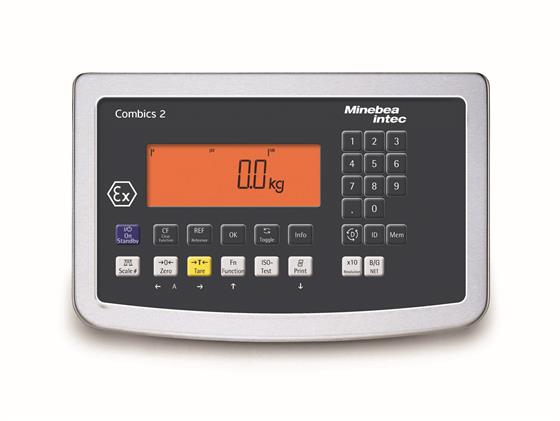

Minebea Intec Combics 2 Ex Explosion Proof Digital Weight Indicator

$0.00

The Combics 2 Ex Indicator complies with all current international requirements for use in explosive areas. The following certificates are available: IECEx | ATEX Zone 1 | 21 | 2 | 22 and FM Class I, II, III Div. 1, 2.

Download product PDF
Categories: ,

Features

  • Amber backlit LCD dot matrix display
  • On/Off, Zero, Tare?and Print/Data Keys
  • Function keys for: Gross/net toggle; three-way unit toggle; 10X higher
  • resolution toggle
  • Two header line storage
  • Battery charge status display (with connection of battery pack)
  • Numeric keypad with two IDs for entering identifier codes and preset tare
  • Date/time fully integrated
  • GMP printable record
  • Three built-in LED checkweighing lights
  • Bar graph weighing range indicator
  • Application data and totalization memory stored in battery-backed RAM
  • Optional barcode scanner for preset tare, reference weight and ID entry
  • Requires power supply

Specifications

Load Cell:
4 or 6 wire

Supply Voltage:
6 V

Housing:
304 stainless steel

Ingress Protection Rating:
IP69K/NEMA Type 4X

Dimensions:
(W x D x H): 11.9 x 7.4 x 3.5 in
(302.3 x 188 x 89 mm)

Operating Temperature:
14? F to 104? F (-10? C to 40? C)

Warranty:
Two-year limited warranty
Accessories: One-year limited warranty

Approvals:
FM approved

Options

Part #46518 Product DescriptionPower Supply,Hazard Area Model YPS02-XUR
Part #46517 Product DescriptionPower Supply,Safe Area Model YPS02-ZKR
Part #103068 Product DescriptionBattery Pack,YRB02-X Intrinsically Safe, Lead Acid,30 Hours, Minebea Requires: 102078
Part #103069 Product DescriptionCharger,Battery YRB02-LD FOR YRB02-X Battery RLWS PN 103068 Length Is 19.8 Feet, 110-240VAC auto-ranging input
Part #103054 Product DescriptionAccessory,Combics, DWI Quick Disconnect for Combics 3 Ex (CIXS3)and YDI02-ZU2 RLSW PN 103055, Length Is 19.8 Feet
Part #155882 Product DescriptionBarrier,Zener YD105-ZU1 Minebea, RS-232 Converter, Includes 20m open-end cable
Part #155918 Product DescriptionInterface,485 OPT A19 Combics 3 EX for IS-X base
Part #155919 Product DescriptionCable,IS-X OPT M26 Combics 3 EX for IS-X base
Part #105607 Product DescriptionKit,Wall Mount Combics Tiltable SST

Models

Part #?158644Product DescriptionIndicator,CAIXS2-U EX Combics 2 EX-Proof Indicator, SS, FM approved, Requires Power Supply or Battery Pack
