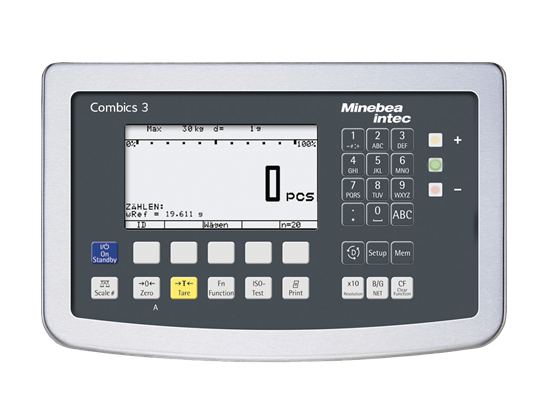

Minebea Intec Combics 3 Digital Weight Indicator

$0.00

The Combics series supports the production of high-quality, appealing and safe products.

Download product PDF
Category:

Features

  • IP protection rating (IP44, IP69K)
  • Amber backlit LCD display
  • On/Off Zero, Tare, Print/Data Keys
  • Function keys for: Gross/net toggle; three-way unit toggle; 10X higher resolution toggle
  • Keypad with two IDs for entering identifier codes and preset tare
  • Info key for quick and easy display of tare input and ID codes
  • Date/time fully integrated
  • GMP/GLP printable record
  • Platform toggling and four function keys
  • Three built-in LED checkweighing lights
  • Bar graph weighing range indicator
  • Application data and totalization memory stored in battery-backed RAM
  • Optional barcode scanner for preset tare, reference weight and ID entry
  • Stored customer-specific data records
  • Key for toggling between weighing applications, and five soft keys with text-supported user guidance
  • Input functions for entering up to four alphanumeric ID texts

Specifications

Load Cell Connection:
4 or 6 wire

Supply Voltage:
9 V

Power Requirements:
120-240 VAC, 17 W/23 VA maximum

Housing:
AISI 304 stainless steel

Dimensions:
(W x D x H): 11.9 x 7.4 x 3.5 in

Operating Temperature:
14? F to 104? F (-10? C to 40? C)

Net Weight:
5 lb

Warranty:
Two-year limited warranty
Accessories: One-year limited warranty

Options

05607 Kit,Wall Mount Combics Tiltable SST YDH02CISUS
171727 Bracket,Bench Mount Fits 10×10 in, 12×12 in and 18×18 in Combics platform, YDH12CWSUS
156440 Column,YDH01CWSUS Minebea Post Mount Assembly, 10x10in platform, 13in High, SST
156441 Column,YDH02CWSUS Minebea Post Mount Assembly, 12x12in platform, 19in High
156442 Column,YDH03CWSUS Minebea Post Mount Assembly, 18x18in platform, 29in High
103049 Accesory,Combics DWI Power Supply Module, Industrial, 24V (Replaces Standard Unit) Combics 1, Combics 1 Plus, Combics 2
155826 Output,Analog Combics 0-20mA, 4-20 mA, 0-10V, 16-bit YDO02C-AO
162640 Output,Ethernet TCP/IP Combics YD002C-ETH

Models

Part #?102405 Product DescriptionIndicator,CAISL3-U Combics 3 Indicator, IP44, 110-240VAC, US Power Cord
Part #?102407 Product DescriptionIndicator,CAIS3-U Combics 3 Indicator, IP69K, 110-240VAC, US Power Cord
Part #?115674 Product DescriptionIndicator,CAIS3-UV1 Minebea, Combics 3, Direct Connection to IS Platform, IP69K, LCD, RS-232C, A/D Converter for additional analog platform, 110-240 VAC, US Power Cord
