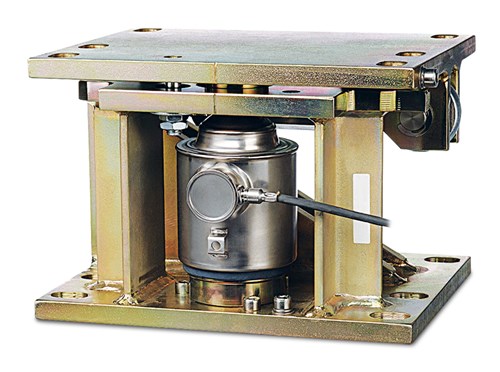

Minebea Intec Inteco Stainless Steel Star Mount Kits

$0.00

The stainless steel star mount kit is optimized for the Inteco load cell family to guarantee the best weighing performance. It covers the capacity range from 500 kg up to 300 t. The special design allows a horizontal displacement in the unconstrained direction of the load cell. All constrainers are 100% maintenance-free. There are two different materials available: stainless steel or mild steel zinc plated. Its unique design includes a dummy functionality to install the vessel without load cell. The top load disc remains in place even when the load cell is not mounted. The design principle integrates a lift-off protection and built-in stops.

Download product PDF
Category:

Features

  • Fast and easy installation
  • Mounting kit with dummy function included
  • Inteco load cell for capacities ranging from 500 kg to 300 t
  • Designed to withstand high lateral forces
  • Maintenance-free constrainer and module construction
  • Patent pending DE 101 38 435A1
  • Approval Certificate “Germanischer Lloyd” No. 47-458-03HH
  • Load cell output 1 mV/V
  • 15-year load cell warranty
  • 10,000 division load cell
  • 39 kN stainless steel mount destructive lateral force; 20 kN permissible lift-off protection
  • Foot 20 kN lateral force and lift-off protection

Options

3-Module Kit

158727 Mount Kit,Inteco-1532-U 3-Leg Tank Kit, Total Capacity 3,300lb (1,500kg) Stainless Steel Consists of 3 Inteco-500kgD1 Maxi Flexlock SS Load Cell 3 PR6001/10S Mount kit, 1 PR6130/64S SS J-box, and 25 ft PR6135 Cable
158788 Mount Kit,Inteco-3032-U Minebea 3-Leg Tank Kit, Total Capacity – 6,600lb (3,000kg) Consists of 3 Inteco-1tD1 Maxi Flexlock SS Load Cell 3 PR6001/10S Mount Kit, 1 PR6130/64S SS J-box, and 25 ft PR6135 Cable
158731 Mount Kit,Inteco-6032-U 3-Leg Tank Kit, Total Capacity 13,200lb (6,000kg) Stainless Steel Consists of 3 Inteco-2tD1 Maxi Flexlock SS Load Cell 3 PR6001/10S Mount kit, 1 PR6130/64S SS J-box, and 25 ft PR6135 Cable
158733 Mount Kit,Inteco-9032-U 3-Leg Tank Kit, Total Capacity 19,800lb (9000kg) Stainless Steel Consists of 3 Inteco-3tD1 Maxi Flexlock SS Load Cell 3 PR6001/10S Mount kit, 1 PR6130/64S SS J-box, and 25 ft PR6135 Cable
158735 Mount Kit,Inteco-15032-U 3-Leg Tank Kit, Total Capacity 33,300lb (15,000kg) Stainless Consists of 3 Inteco-5tD1 Maxi Flexlock SS Load Cell Cell, 3 PR6001/10S Mount kit, 1 PR6130/64S SS J-box, and 25 ft PR6135 Cable
158737 Mount Kit,Inteco-30032-U 3-Leg Tank Kit, Total Capacity 66,000lb (30000kg) Stainless Steel, Consists of 3 Inteco-10tD1 Maxi Flexlock SS Load Cell, 3 PR6001/10S Mount kit, 1 PR6130/64S SS J-box, and 25 ft PR6135 Cable
158739 Mount Kit,Inteco-60032-U 3-Leg Tank Kit, Total Capacity 132,000lb (60,000kg) Stainless Steel, Consists of 3 Inteco-20tD1 Maxi Flexlock SS Load Cells, 3 PR6001/11S Mount kit, 1 PR6130/64S SS J-box, and 25 ft PR6135 Cable
158741 Mount Kit,Inteco-90032-U 3-Leg Tank Kit, Total Capacity 198,000lb (90,000kg) Stainless Steel, Consists of 3 Inteco-30tD1 Maxi Flexlock SS Load 3 PR6001/11S Mount kit, 1 PR6130/64S SS J-box, and 25 ft PR6135 Cable
158743 Mount Kit,Inteco-150032-U 3-Leg Tank Kit, Total Capacity 330,500lb (150,000kg) Stainless Steel, Consists of 3 Inteco-50tD1 Maxi Flexlock SS Load Cell, 3 PR6001/11S Mount kit, 1 PR6130/64S SS J-box, and 25 ft PR6135 Cable



4-Module Kit

158729 Mount Kit,Inteco-2042-U 4-Leg Tank Kit, Total Capacity 4,400lb (2,000kg) Stainless Steel Consists of 4 Inteco-500kgD1 Maxi Flexlock SS Load Cell 3 PR6001/10S Mount kit, 1 PR6130/64S SS J-box, 1 PR6001/00s SS Foot, and 25 ft PR6135 Cable
158730 Mount Kit,Inteco-4042-U 4-Leg Tank Kit, Total Capacity 8,800lb (4000kg) Stainless Steel Consists of 4 Inteco-1tD1 Maxi Flexlock SS Load Cell 3 PR6001/10S Mount kit, 1 PR6130/64S SS J-box, 1 PR6001/00S SS Foot, and 25 ft PR6135 Cable
158732 Mount Kit,Inteco-8042-U 4-Leg Tank Kit, Total Capacity 17,600lb (8,000kg) Stainless Steel Consists of 4 Inteco-2tD1 Maxi Flexlock SS Load Cell 3 PR6001/10S Mount kit, 1 PR6130/64S SS J-box, 1 PR6001/00S SS Foot, and 25 ft PR6135 Cable
158734 Mount Kit,Inteco-12042-U 4-Leg Tank Kit, Total Capacity 26,400lb (12,000kg) Stainless Consists of 4 Inteco-3tD1 Maxi Flexlock SS Load Cell Cell, 3 PR6001/10S Mount kit, 1 PR6130/64S SS J-box, 1 PR6001/00S Foot, and 25 ft PR6135 Cable
158736 Mount Kit,Inteco-20042-U 4-Leg Tank Kit, Total Capacity 44,000lb (20000kg) Stainless Steel, Consists of 4 Inteco-5tD1 Maxi Flexlock SS Load Cell, 3 PR6001/10S Mount kit, 1 PR6130/64S SS J-box, 1 PR6001/00S SS Foot, and 25 ft PR6135 cable
158738 Mount Kit,Inteco-40042-U 4-Leg Tank Kit, Total Capacity 88,000lb (40000kg) Stainless Steel, Consists of 4 Inteco-10tD1 Maxi Flexlock SS Load Cell, 3 PR6001/10S Mount kit, 1 PR6130/64S SS J-box, 1 PR6001/00S SS Foot, and 25 ft PR6135 Cable
158740 Mount Kit,Inteco-80042-U 4-Leg Tank Kit, Total Capacity 176,000lb (80,000kg) Stainless Steel, Consists of 4 Inteco-20tD1 Maxi Flexlock SS Load Cell, 3 PR6001/11S Mount kit, 1 PR6130/64S SS J-box, 1 PR6001/01S SS Foot, and 25 ft PR6135 Cable
158742 Mount Kit,Inteco-120042-U 4-Leg Tank Kit, Total Capacity 264,500lb (120,000kg) Stainless Steel, Consists of 4 Inteco-30tD1 Maxi Flexlock SS Load Cell, 3 PR6001/11S Mount kit, 1 PR6130/64S SS J-box, 1 PR6001-01S SS Foot, and 25 ft PR6135 Cable
158744 Mount Kit,Inteco-200042-U 4-Leg Tank Kit, Total Capacity 440,500lb (200,000kg) Stainless Steel, Consists of 4 Inteco-50tD1 Maxi Flexlock SS Load Cell, 3 PR6001/11S Mount kit, 1 PR6130/64S SS J-box, 1 PR6001/01S SS Foot, and 25 ft PR6135 Cable
