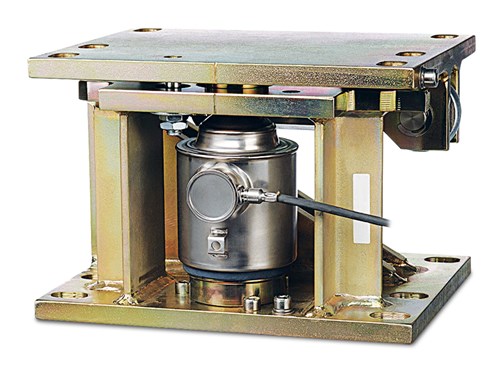

Minebea Intec Inteco Zinc-Plated Steel Star Mount Kits

$0.00

The zinc-plated star mount kit is optimized for the Inteco load cell family to guarantee the best weighing performance. It covers the capacity range from 500 kg up to 300 t. The special design allows a horizontal displacement in the unconstrained direction of the load cell. All constrainers are 100% maintenance-free. There are two different materials available: stainless steel or mild steel zinc plated. Its unique design includes a dummy functionality to install the vessel without load cell. The top load disc remains in place even when the load cell is not mounted. The design principle integrates a lift-off protection and built-in stops.

Download product PDF
Category:

Features

  • Fast and easy installation
  • Mounting kit with dummy function included
  • Designed to withstand high lateral forces
  • Maintenance-free constrainer and module construction
  • Patent pending DE 101 38 435A1
  • Approval Certificate “Germanischer Lloyd” No. 47-458-03HH
  • Load cell output 1 mV/V
  • 15-year load cell warranty
  • 10,000 division load cell
  • 45 kN zinc-plated mount destructive lateral force; 20 kN permissible lift-off protection
  • Foot 20 kN lateral force and lift-off protection

Options

3-Module Kit

158706 Mount Kit,INTECO-1531-U Minebea 3-Leg Tank Kit, 3,300lb (1,500kg) Total Capacity, Consists: 3-INTECO 500kgD1 Maxi Flexlock Zinc-plated Steel Load Cell, 3 PR6001/10N Mount Kit, 1 PR6130/64S SS J-Box and 25 ft PR6135 Cable

158708 Mount Kit,INTECO-3031-U Minebea 3-Leg Tank Kit, 6,600lb (3,000kg) Total Capacity, Consists: 3-INTECO 1tD1 Maxi Flexlock Zinc-plated Steel Load Cell, 3 PR6001/10N Mount Kit, 1 PR6130/64S SS J-Box and 25 ft PR6135 Cable

158710 Mount Kit,INTECO-6031-U Minebea 3-Leg Tank Kit, 13,200lb (6,000kg) Total Capacity, Consists: 3-INTECO 2tD1 Maxi Flexlock Zinc-plated Steel Load Cell, 3 PR6001/10N Mount Kit, 1 PR6130/64S SS J-Box and 25 ft PR6135 Cable

158712 Mount Kit,INTECO-9031-U 3-Leg Tank Kit, Total Capacity 19,800lb (9,000kg) Consists: 3-INTECO 3tD1 Maxi Flexlock Zinc-plated Steel Load Cell, 3 PR6001/10N Mount Kit, 1 PR6130/64S SS J-Box and 25 ft PR6135 Cable

158716 Mount Kit,INTECO-15031-U 3-Leg Tank Kit, Total Capacity – 33,000lb (15,000kg) Consists: 3-INTECO 5tD1 Maxi Flexlock Zinc-plated Steel 3 PR6001/10N Mounting Kit, 1 PR6130/64S SS J-Box, and 25 ft Cable

158719 Mount Kit,INTECO-30031-U 3-Leg Tank Kit, Total Capacity – 66,000lb (30,000kg) Consists: 3-INTECO 10tD1 Maxi Flexlock Zinc-plated Steel 3 PR6001/10N Mounting Kit, 1 PR6130/64S SS J-Box, and 25 ft Cable

158721 Mount Kit,INTECO-60031-U 3-Leg Tank Kit, Total Capacity – 132,000lb (60,000kg) 3 Inteco 20tD1 Maxi Flexlock Zinc-plated Load Cells, 3 PR6001/11N Mounting Kit, 1 PR6130/642S SS J-Box, and 25 ft Cable

158723 Mount Kit,INTECO-90031-U 3-Leg Tank Kit, Total Capacity 198,000lb (90,000kg) Consists of 3-Inteco/30tD1 Maxi Flexlock Zinc-plated Load Cell, 3 PR6001/11N Mount Kit, and 1 PR6130/64S SS J-box, and 25 ft PR6135 Cable

158725 Mount Kit,INTECO-150031-U 3-Leg Tank Kit, Total Capacity 330,500lb (150,000kg) Consists of 3-Inteco/50tD1 Maxi Flexlock Zinc-plated Load Cell, 3 PR6001/11N Mount Kit,1 pr6130/64S SS J-Box, AND 25 ft PR6135 Cable



4-Module Kit

158707 Mount Kit,INTECO-2041-U Minebea 4-Leg Tank Kit, 4,400lb (2,000kg) Total Capacity, Consists: 4-INTECO 500kgD1 Maxi Flexlock Zinc-plated Steel Load Cell, 3 PR6001/10N Mount Kit, 1 PR6130/64S SS J-Box, 1 PR6001/00N Zinc-plated Foot, and 25 ft PR6135 Cable
158709 Mount Kit,INTECO-4041-U Minebea 4-Leg Tank Kit, 8,800lb (4,000kg) Total Capacity, Consists: 4-INTECO 1tD1 Maxi Flexlock Zinc-plated Steel Load Cell, 3 PR6001/10N Mount Kit, 1 PR6130/64S SS J-Box 1 PR6001/00N Zinc-plated Foot, and 25 ft PR6135 Cable
158711 Mount Kit,INTECO-8041-U Minebea 4-Leg Tank Kit, 17,600lb (8,000kg) Total Capacity, Consists: 4-INTECO 2tD1 Maxi Flexlock Zinc-plated Steel Load Cell, 3 PR6001/10N Mount Kit, 1 PR6130/64S SS J-Box PR6001/00N Zinc-plated Foot, and 25 ft PR6135 Cable
158713 Mount Kit,INTECO-12041-U Minebea 4-Leg Tank Kit, 26,400lb (12,000kg) Total Capacity, Consists: 4-INTECO 3tD1 Maxi Flexlock Zinc-plated Steel Load Cell, 3 PR6001/10N Mount Kit, 1 PR6130/64S SS J-Box 1 PR6001/00N Zinc-plated Foot, and 25 ft Cable

158718 Mount Kit,INTECO-20041-U 4 Leg Tank Kit, Total Capacity – 44,000lb (20,000kg) Consists: 4-INTECO 5tD1 Maxi Flexlock Zinc-plated Steel 3 PR6001/10N Mounting Kit, 1 PR6130/64S SS J-Box, and 1 PR6001-00N Zinc-plated Foot, and 25 ft Cable

158720 Mount Kit,INTECO-40041-U 4-Leg Tank Kit, Total Capacity – 88,000lb (40,000kg) Consists: 4-INTECO 10tD1 Maxi Flexlock Zinc-plated Steel 3 PR6001/10N Mounting Kit, 1 PR6130/64S SS J-Box, 1 PR6001/00N Zinc-plated Foot, and 25 Ft Cable
158722 Mount Kit,INTECO-80041-U 4-Leg Tank Kit, Total Capacity 176,000lb (80,000kg) Consists of 4-Inteco/20tD1 Maxi Flexlock Zinc-plated Load Cell, 3 PR6001/11N Mount Kit, 1 PR6001/01N Zinc-plated Foot, 1 PR6130/64S SS J-box, and 25 ft PR6135 Cable

158724 Mount Kit,INTECO-120041-U 4-Leg Tank Kit, Total Capacity 264,500lb (120,000kg) Consists of 4-Inteco PR6203/30tD1 Maxi Flexlock Zinc-plated Load Cell, 3-PR6001/11N Mount Kit, 1-PR6001/01N Zinc-plated Foot, 1-PR6130/64S SS J-box, and 25 ft PR6135 Cable

158726 Mount Kit,INTECO-200041-U 4-Leg Tank Kit, Total Capacity 440,500lb (200,000kg) Consists of 4-Inteco/50tD1 Maxi Flexlock Zinc-plated Load Cell, 3 PR6001/11N Mount Kit, 1 PR6001/01N Zinc-plated Foot, 1 PR6130/64S SS J-box, and 25 ft PR6135 Cable
