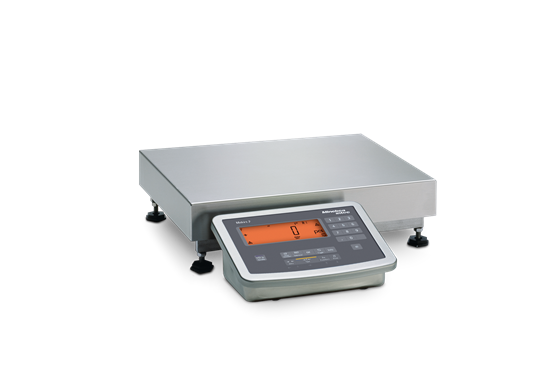

Minebea Intec Midrics 2 Series and Combics Systems

$0.00

Use Minebea Intec Midrics 2 Series and Combics Systems in counting, checkweighing, classification, totalizing, net-total formulation, animal weighing, percent weighing and neutral measurement.

Download product PDF
Category:

Features

  • Painted versions have IP65 protection rating for?industrial use
  • 304 stainless steel versions have IP67/IP68 protection ratings
  • Four adjustable feet, level indicator on LCE and NCE
  • 10 ft cable platformE
  • Midrics 2 with 10-key touch pad and application programs
  • Midrics 2 application programs – counting, checkweighing, classification, totalizing, net-total formulation, animal weighing, percent weighing, neutral measurement
  • Weighing ranges from 6?kg to 150 kg
  • Accessories: User installed interface kits, printer, external battery pack, software tools, panel mount kit

Specifications

Power Supply:
100 – 200 VAC, 50 – 60 Hz

Readability:
15,000 scale intervals

Cable Length:
1.5 to 6 m (varies by capacity)

Warranty:
Two-year limited warranty

Options

156440 Column,YDH01CWSUS Minebea Post Mount Assembly, 10x10in platform, 13in High, SST
156441 Column,YDH02CWSUS Minebea Post Mount Assembly, 12x12in platform, 19in High
156442 Column,YDH03CWSUS Minebea Post Mount Assembly, 18x18in platform, 29in High

Models

Mild Steel with MIS2-U

Part #?156428 Product DescriptionScales,MW2P1UE-10CC-L Minebea, 10x10in, 15lb x 0.0005lb (6kg x 0.0002), Midrics 2 Mild Steel with MIS2-U
Part #?156429 Product DescriptionScales,MW2P1UE-50DD-L Minebea, 12x12in, 60lb x 0.002lb (30kg x 0.001), Midrics 2 Mild Steel with MIS2-U
Part #?156430 Product DescriptionScales,MW2P1UE-100EE-L Minebea, 18x18in, 150lb x 0.005lb (60kg x 0.002), Midrics 2 Mild Steel with MIS2-U
Part #?156431 Product DescriptionScales,MW2P1UE-250GG-L Minebea, 24x24in, 300lb x 0.01lb (150kg x 0.005), Midrics 2 Mild Steel with MIS2-U

Stainless Steel with MIS2-U

Part #?156432 Product DescriptionScales,MW2S1UE-10CC-L Minebea, 10x10in, 15lb x 0.0005lb (6kg x 0.0002), Midrics 2 Stainless Steel with MIS2-U
Part #?156433 Product DescriptionScales,MW2S1UE-50DD-I Minebea, 12x12in, 60lb x 0.002lb (30kg x 0.001), Midrics 2 Stainless Steel with MIS2-U
Part #?156434 Product DescriptionScales,MW2S1UE-100EE-L Minebea, 18x18in, 150lb x 0.005lb (60kg x 0.002), Midrics 2 Stainless Steel with MIS2-U
Part #?156435 Product DescriptionScales,MW2S1UE-250GG-L Minebea, 24x24in, 300lb x 0.01lb (150kg x 0.005), Midrics 2 Stainless Steel with MIS2-U
