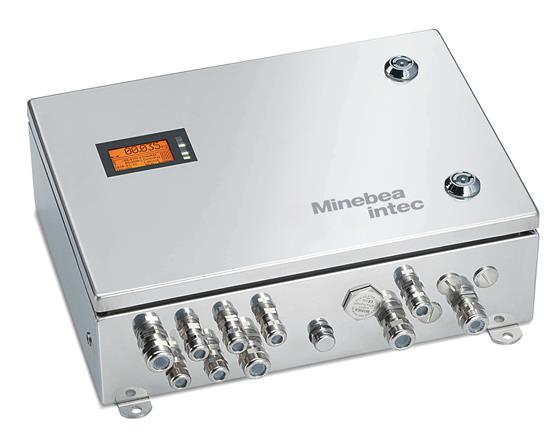

Minebea Intec PR 5230 Fieldbus Transmitter

$0.00

The fieldbus transmitter PR 5230 is a product for readout and transmit weight values to installed networks and control systems.

Download product PDF
Category:

Features

  • IP66, stainless steel, electro-polished construction
  • Display for weight and status information
  • OIML approval for 10,000e, and an internal resolution of 4 and 8 Mio. counts
  • SmartCalibration feature for fast calibration even without weights
  • Serial Interface RS-485/422 and RS-232
  • Option cards: Analog output 0 to 10 or 4-20 mA, DeviceNet and Ethernet/IP
  • Load cell connection board for up to four load cells

Specifications

Housing:
Housing IP66 material: stainless steel electro-polished
RoHS conform

Dimensions:
(W x D x H): 13.78 x 9.84 x 5.91 in
(350 x 250 x 150 mm)

Weight:
Net: 1.45 kg (3.2 lb)

Display and Status:
LCD, transflective, back-lit
Weight: 6-digits
Size: 128 + 64 pixel, graphic
Information can be configured
Status LEDs to signal operation and
error conditions.

Internal Keys:
In the housing: 3 keys for Zero, Tare, Test

Supply Voltage:
230 VAC, (+10/-15 %): 24 VDC, (?20 %)

Power Consumption:
11 W

Control Outputs:
Quantity: 3
Relay output, passive,
Functions: Limits, weight status
Voltage: max. 30 VDC:
Current: max. 30 mA

Control Inputs:
Quantity: 3 opto-isolated input, passive,
Functions: zero setting, taring
Voltage: max. 30 VDC
Current: max. 10 mA

Remote I/O:
The I/O can be set internally via a function and remote via fieldbus or PC

In/Output:
All I/O circuits fully galvanically isolated from sensor input and supply 3 inputs/3 outputs (relays)

Load Cell Connection:
All strain gauge load cells; 6- or 4-wire connection

Load Cell Supply:
12 V, short-circuit proof. External load cell supply possible.

Minimum Load Impedance:
Min. 75 ?
(e.g. 6 load cells with 600 O or 4 load cells with 350 ohm)

Measuring Principle:
Measuring amplifier: Delta-Sigma converter
Measuring time: min 5 ms ? max. 1600 ms

Accuracy:
7.5 nV (appr. 4.8 Mio. div.) Usable resolution: 0.2 ?V/d

LC Input Signal:
Measuring signal: 0 bis 36 mV (for 100 % nominal load)

WandM Approval (in preparation):
10,000 e class III acc. to EN 45501; according to. OIML R76, min. verification interval: 0.5 ?V/e at 160 ms

Linearity:
< 0.003 %

Temperature Effects:
Zero: TK0 m < 0.05 ?V/K RTI
Span: TKspan < ?2.5 ppm/K

Digital Filter for Load Cell:
4th order (low pass), Bessel, aperiodic or Butterworth

Ethernet Interface for Optional IP Card:
Ethernet TCP/IP and Modbus TCP
Definition of an IP adress: ? AutoIP; ? DHCP Server classification; ? manual entering of an IP adress
Automatic detection of signal transmission and corresponding change over (cross-over or patch cable)
Webservice via SOAP|UPnP (Simple Object Access Protocol) Synchronal Modbus UDP

Serial Interfaces:/strong>
RS 422/485 and RS232
Protocols: Remote Display, SMA, Modbus RTU, printer and Minebea digital scales (XBPI ? protocol)

Options Analogue Output PR 5230/06 (C11):
?-1? VDC or 4 -2? mA, internal resolution 16 bit, usable stepwidth: 0.5 ?A max. load 500 O, user configurable

Fieldbus PR 1721/4x (C2x):
Profibus-DP, Interbus-S, DeviceNet, CC-Link, Profinet and EtherNet/IP

Load Cell Connection Board PR 5230/22 (C31):
For the internal connection of up to 4 Load cells (instead using a cable junction box)

Environmental Conditions Temperature:
WandM: ?10? C to 40? C
Operation: ?10? C to 50? C
Storage: ?20? C to 70? C

ATEX Approvals PR 5230:
II 3G Ex nA nC IIC T4
II 3D Ex tD A22 IP6X T80? C
SAG 09ATEX004X
II (2)G [Ex ib] IIC
II (2)D [Ex ibD]
KEMA 10 ATEX 0065 X

Options

158863 Module,Ethernet IP Minebea PR1721/47
158864 Module,DeviceNet 5.1 Minebea PR1721/44
160431 Module,0-4-20Ma interface Minebea PR5230/06, 9405 152 30061

Models

Part #158863 Product DescriptionModule,Ethernet IP Minebea PR1721/47
Part #158864 Product DescriptionModule,DeviceNet 5.1 Minebea PR1721/44
Part #160431 Product DescriptionModule,0-4-20Ma interface Minebea PR5230/06, 9405 152 30061 ?
