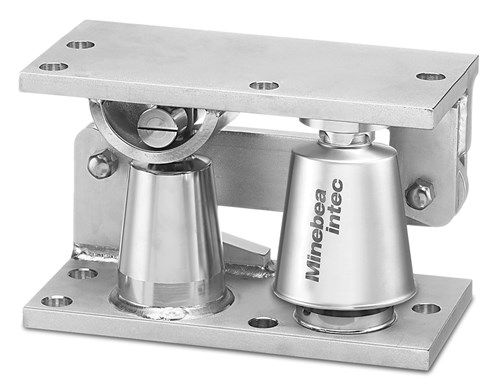

Minebea Intec PR6202 Hygienic Weigh Module Kits

The PR6202 range of load cells is specially designed to meet the high demands of the food, pharmaceutical and chemical industries. These products are made completely from stainless steel and are specially designed for use with process vessels. All horizontal surfaces are inclined for easy draining, and gaps and undercuts have purposely been avoided. The materials and surface quality were also selected to ensure the load cell meets tried and tested international standards and specifications.

Its unique design principle enables it to compensate for motions caused by mechanical/thermal contractions or expansions of containers and/or padding construction in combination with its mounting kit, which has been specially designed for this area of application. The PR6202 is designed for consistent, high accuracy.

Category:

Features

  • Proven rocker pin principle for accurate repeatability
  • Easy corner adjustment by matched load cell output
  • All stainless steel construction (316 stainless steel load cells)
  • Wide operating temperature range
  • High overload capacity
  • Resists vibration for consistent high accuracy
  • Hermetically sealed, IP68/69K (depth of 1.5 m for 10,000 hours)
  • EX-version available (PR 6202/..E)
  • 10,000 division load cell, 2 mV/V
  • 15-year warranty
  • 50 kN destructive lateral force, and 25 kN permissible lift-off protection
  • Foot 35 kN lateral force and lift-off protection

Options

3-Module Kit

158761 Mount Kit,PR6202-3032-U Minebea 3-Leg Tank Kit, Total Capacity 6,600lb (3,000kg) Consists of 3 PR6202/1tC1 1000kg Maxi Flexlock SS Load Cell, 3 PR6002/10S Mount Kit, 1 PR6130/64S SS J-Box, and 25 ft PR6135 Cable
158764 Mount Kit,PR6202-6032-U Minebea 3-Leg Tank Kit, Total Capacity 13,200lb (6,000kg) Consists of 3 PR6202/2tC1 2000kg Maxi Flexlock SS Load Cell, 3 PR6002/10S Mount Kit, 1 PR6130/64S SS J-Box, and 25 ft PR6135 Cable
158767 Mount Kit,PR6202-12032-U Minebea 3-Leg Tank Kit, Total Capacity 26,000lb (12,000kg) Consists of 3 PR6202/4tC1 4000kg Maxi Flexlock SS Load Cell, 3 PR6002/10S Mount Kit, 1 PR6130/64S SS J-Box, and 25 ft PR6135 Cable
158770 Mount Kit,PR6202-18032-U Minebea 3-Leg Tank Kit, Total Capacity 39,500lb (18,000kg) Consists of 3 PR6202/6tC1 6000kg Maxi Flexlock SS Load Cell, 3 PR6002/10S Mount Kit, 1 PR6130/64S SS J-Box, and 25 ft PR6135 Cable
158772 Mount Kit,PR6202-30032-U Minebea 3-Leg Tank Kit, Total Capacity 66,000lb (30,000kg) Consists of 3 PR6202/10tC1 10000kg Maxi Flexlock SS Load Cell, 3 PR6002/10S Mount Kit, 1 PR6130/64S SS J-Box, and 25 ft PR6135 Cable
158929 Mount Kit,PR6202-75032-U Minebea 3-Leg Tank Kit, Total Capacity 165,000lb (75,000kg) Consists of 3 PR6202/25tC1 25,000 kg LMaxi Flexlock SS Load cells 3 PR6002/11S Mounts, 1 PR6103/64S SS J-box, and 25 ft Cable
158775 Mount Kit,PR6202-150032-U Minebea 3-Leg Tank Kit, Total Capacity 330,500lb (150,000kg) Consists of 3 PR6202/50tC1 50000kg Maxi Flexlock SS Load Cell, 3 PR6002/11S Mount Kit, 1 PR6130/64S SS J-Box, and 25 ft PR6135 Cable



4-Module Kit

158762 Mount Kit,PR6202-4042-U Minebea 4-Leg Tank Kit, Total Capacity 8,800lb (4,000kg) Consists of 4 PR6202/1tC1 1000kg Maxi Flexlock SS Load Cell, 3 PR6002/10S Mount Kit, 1 PR6130/64S SS J-Box, 1 PR6002/04S SS Foot, and 25 ft PR6135 Cable
158765 Mount Kit,PR6202-8042-U Minebea 4-Leg Tank Kit, Total Capacity 17,600lb (8,000kg) Consists of 4 PR6202/2tC1 2000kg Maxi Flexlock SS Load Cell, 3 PR6002/10S Mount Kit, 1 PR6130/64S SS J-Box, 1 PR6002/04S SS Foot, and 25 ft PR6135 Cable
158769 Mount Kit,PR6202-16042-U Minebea 4-Leg Tank Kit, Total Capacity 35,000lb (16,000kg) Consists of 4 PR6202/4tC1 4000kg Maxi Flexlock SS Load Cell, 3 PR6002/10S Mount Kit, 1 PR6130/64S SS J-Box, 1 PR6002/04S SS Foot, and 25 ft PR6135 Cable
158771 Mount Kit,PR6202-24042-U Minebea 4-Leg Tank Kit, Total Capacity 52,900lb (24,000kg) Consists of 4 PR6202/6tC1 6000kg Maxi Flexlock SS Load Cell, 3 PR6002/10S Mount Kit, 1 PR6130/64S SS J-Box, 1 PR6002/04S SS Foot, and 25 ft PR6135 Cable
158773 Mount Kit,PR6202-40042-U Minebea 4-Leg Tank Kit, Total Capacity 88,000lb (40,000kg) Consists of 4 PR6202/10tC1 10000kg Maxi Flexlock SS Load Cell, 3 PR6002/10S Mount Kit, 1 PR6130/64S SS J-Box, 1 PR6002/04S SS Foot, and 25 ft PR6135 Cable
158774 Mount Kit,PR6202-100042-U Minebea 4-Leg Tank Kit, Total Capacity 220,000lb (100,000kg) Consists of 4 PR6202/25tC1 25,000kg Maxi Flexlock SS Load Cell, 3 PR6002/11S Mount Kit, 1 PR6130/64S SS J-Box, 1 PR6002/05S SS Foot, and 25 ft PR6135 Cable
158776 Mount Kit,PR6202-200042-U Minebea 4-Leg Tank Kit, Total Capacity 440,500lb (200,000kg) Consists of 4 PR6202/50tC1 50000kg Maxi Flexlock SS Load Cell, 3 PR6002/11S Mount Kit, 1 PR6130/64S SS J-Box, 1 PR6002/05S SS Foot, and 25 ft PR6135 Cable
