Specifications
Material:

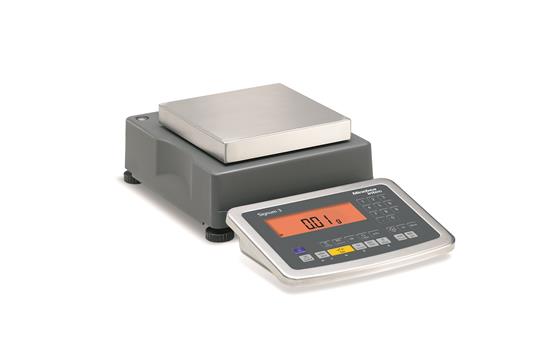

SIWSXBBP, SIWXSDCP ? Stainless steel display unit, painted platform with stainless steel load plate
SIWXSBBS, SIWXSDCS ? Brushed stainless steel
IP Protection:
IP65
IP44 Zone 1 ONLY: SIWXSBBP, SIWXSBBS 1.3 lb (0.6kg)
Net Weight/Gross Weight:
SIWXSBBP, SIWXSBBS : 19.8/23.8 lb (9.0/10.8 kg)
SIWXSDCP, SIWXSDCS : 33/39.6 lb (15.0/18.0 kg)
Packaging Dimensions:
SIWXSBBP, SIWXSBBS (W x D x H): 22.4 x 15.7 x 14.5 in
(570 x 400 x 370 mm)
SIWXSDCP, SIWXSDCS (W x D x H): 20 x 17.3 x 16.1 in
(510 x 440 x 410 mm)
Operating Temperature:
SIWXSBBP, SIWXSBBS 50? F to 104? F (10? C to 40? C)
SIWXSDCP, SIWXSDCS 14? F to 104? F (-10? C to 40? C)
Data Interfaces:
RS-232
Can be switched to RS-485 or RS-422 connection via 14-Pin round socket
Supply Voltage:
Via external power supply, connection via 14-Pin round socket (20 cm cable)
Power Supply Hazardous Area:
ATEX: YPSC01-X
Power Supply Safe Area:
ATEX: YPSC01-Z
FM/CSA: YPS02-ZKR (PN 46517)
Battery Operation:
Via external battery YRB02-X (103068) Charger PN 103069
Cable Length:
2 m ( 6.6 ft) between display unit and platform
Warranty:
Two-year limited warranty
Options
46518 Power Supply,Hazard Area Model YPS02-XUR 8ft Intrinsically Safe Cable with Connector for Attachment to Scale or Indicator and 8ft Cable to Power requiring Hardwire to AC Electrical Source by Licensed Electrian
103068 Battery Pack,YRB02-X Intrinsically Safe, Lead Acid,30 Hours, Minebea Requires: 102078
103069 Charger,Battery YRB02-LD FOR YRB02-X Battery RLWS PN 103068 Length Is 19.8 Feet, 110-240VAC auto-ranging input
153218 Column,Signum DC bases Minebea YDH01P
155884 Column,BBP Bases Minebea Signum, YDH02P
103055 Barrier,Zener RS232-RS232 Minebea YD105-ZU2
103057 Cable,RS422 1 ft YCC422-X Minebea option, no connectors
46517 Power Supply,Safe Area Model YPS02-ZKR 3ft Cable Length from Brick to AC Power Source & 65ft Intrinsically Safe Cable to Connect to Scale or Indicator.
103059 Accessory,Combics, DWI Zener Barrier, With Option Cable Up To 3,200 Feet. Requires YCC422-X Type A, RLWS 103057 3,200 Feet Connection To CIXS3, Or YCC422-X Type B, RLWS 103058 3,200 Feet Quick Disconnect
102078 Power Cord,for 110VAC Power Supply Sartorius PN 6971954 EB15DCE-IOUR, BP-16000-S, EA Series, Used with 102077 or 191429
