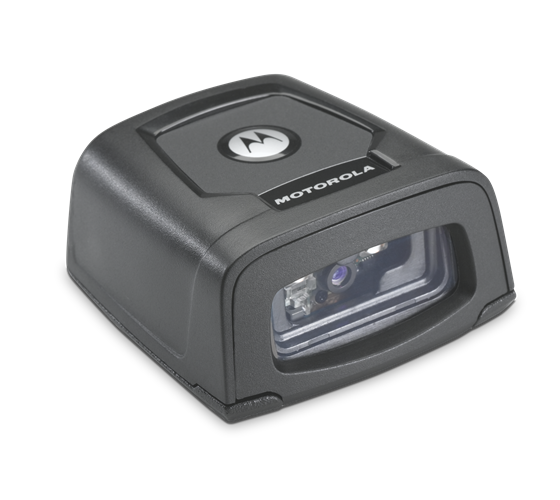

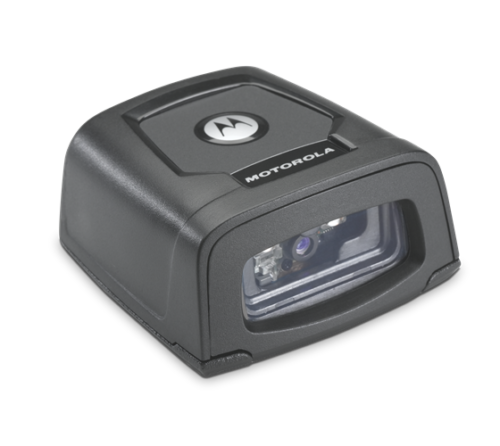

The Motorola DS457 laser scanner delivers hand-free convenience and extraordinary scanning speed on any bar code, on any surface.
Dimensions:
1.15 (H) x 2.3 (L) x 2.44 in (W)
2.92 (H) x 5.84 (L) x 6.2 cm (W)
Weight:
3.9 oz (111 g)
Power Maximum:?
5 VDC +/- 10% at 450 mA
Performance Characteristics:?
Sensor Resolution 752 (H) x 480 (V) gray scale
Imager Field of View DS457 SR: 39.6? horizontal, 25.7? vertical
Aiming Element 655 ? 10 nm (VLD)
Illumination Element 625 ? 5 nm (LED)
Symbology Decode Capability:
1D All major 1D bar codes
2D PDF417, DataMatrix, QR Code, Aztec,
Composite Codes and MaxiCode
Postal US Postnet, US Planet, UK Postal, Australian
Postal, Japan Postal
Communications:
Interfaces Supported 9-Pin male D-sub USB (full speed) and TTL level RS-232 with
RTS and CTS
Operating Temperature:
-4? to 122?F (-20? to 50?C*) (* Laser aimer disabled above 113?F /45?C)
Storage Temperature:
-40? to 158?F (-40? to 70?C) Storage: 85% RH, non-condensing at 70?C
Ingress Protection Rating:
IP54
Humidity:
95% RH, non-condensing at 50?C
Drop Resistance:
Withstands multiple 30 in (76 cm) drops to concrete
Image File Formats:
BMP, TIFF, JPG
Regulatory:?
Electrical Safety ETL, VDE, CETL, EN60950, Ctick, VCCI
Laser Classification Intended for use in CDRH Class II/IEC 825 Class I devices
EMI/RFI FCC Part 15 Class B, ICES-003 Class B, CISPR22 Class B
Warranty:?
Three-year warranty against defects in workmanship and materials
| Part #?154077 | Product DescriptionScanner, DS457-SR Mini Motorola 1D & 2D, 9-pin Male D-sub, USB and RS232, Requires 5VDC Power +/1 10% @ 450mA |
