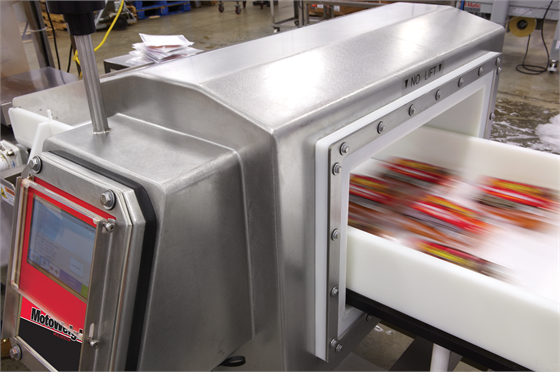

MotoWeigh Metal Detection Systems

$0.00

MotoWeigh Metal Detection Systems are designed to detect disturbances in a generated magnetic field, making them better suited for products varying in size, shape and orientation.

Download product PDF
Categories: ,

Features

Software

  • Four levels of security
  • Easy setup and product learning
  • Easily change product boundaries/rejection
  • One touch log reporting
  • Eight fields of data recorded on large hard drive
  • USB, Ethernet?and RS485 communication ports
  • English or Spanish

Hardware

  • 7 in color touchscreen interface
  • 304 stainless steel construction
  • NEMA Type 4X, 304 stainless steel housing and enclosure
  • IP66 rated
  • Easily removable belt
  • Adjustable foot pads or casters
  • Single-point junction box
  • Anti-static UHMW slider bed

Specifications

Construction:
304 stainless steel

Display:
7 in color touchscreen

Language Support:
English and Spanish

Inputs:
Eight configurable (for photo eyes, remote emergency stop, etc.) that can be set to active high or active low

Outputs:
Nine programmable (for reject mechanism, system faults, system warnings, etc.)

Speed:
Up to 240 ft/minute (73 m/min) depending on configuration

Operating Temperature:
Integral control 14? F (-10? C) to 120? F (49? C)

Storage Temperature:
14? F (-10? C) to 175? F (80? C)

Maximum Operating Altitude:
6,561 ft (2,000 m)

Power Requirements:
100 to 240 VAC, 50 or 60 Hz

Options

Reject mechanism
Paddle
Linear
Drop
Lock box
IP69K
Ferrous, non-ferrous, and 316 stainless steel test wands; individual wands and kits
LED communication tower
Audible alarms

Models

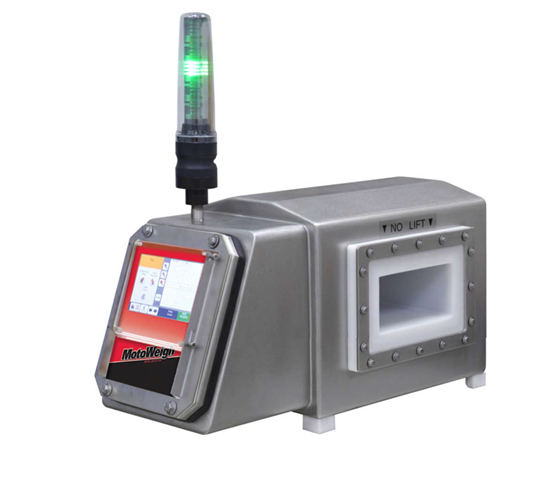

Metal Detector Only
186289 Head,Metal Detector 26×6 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $17,016.00
170657 Head,Metal Detector 8Wx4H 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $12,870.00
170659 Head,Metal Detector 8Wx6H 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $12,924.00
170660 Head,Metal Detector 8Wx8H 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $13,032.00
170669 Head,Metal Detector8Wx10H 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $13,947.00
170670 Head,Metal Detector 8×12 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $14,216.00
170671 Head,Metal Detector 14×6 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $14,163.00
170672 Head,Metal Detector 14×8 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $14,647.00
170673 Head,Metal Detector 14×10 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $14,755.00
170674 Head,Metal Detector 14×12 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $14,916.00
170692 Head,Metal Detector 14×14 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $15,724.00
170675 Head,Metal Detector 20×6 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $16,209.00
170676 Head,Metal Detector 20×8 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $16,370.00
170677 Head,Metal Detector 20×10 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $16,586.00
170678 Head,Metal Detector 20×12 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $16,801.00
170679 Head,Metal Detector 20×14 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $16,855.00
170680 Head,Metal Detector 20×16 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $17,501.00
170681 Head,Metal Detector 20×18 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $17,878.00
170682 Head,Metal Detector 20×20 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $18,201.00
170683 Head,Metal Detector 26×8 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $17,070.00
170684 Head,Metal Detector 26×10 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $17,609.00
170685 Head,Metal Detector 26×12 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $17,609.00
170686 Head,Metal Detector 26×14 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $17,878.00
170687 Head,Metal Detector 26×16 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $18,147.00
170688 Head,Metal Detector 26×18 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $18,524.00
170689 Head,Metal Detector 26×20 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $19,224.00

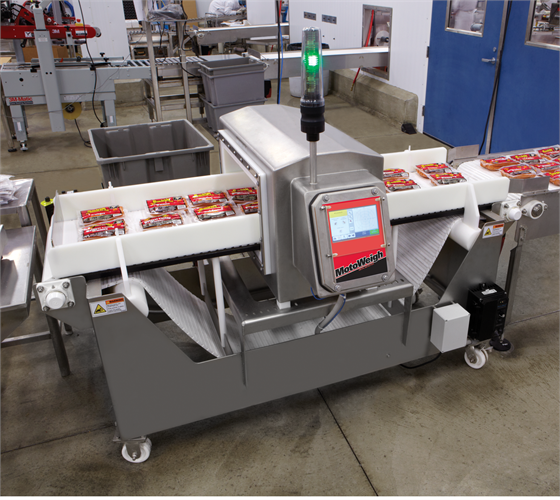

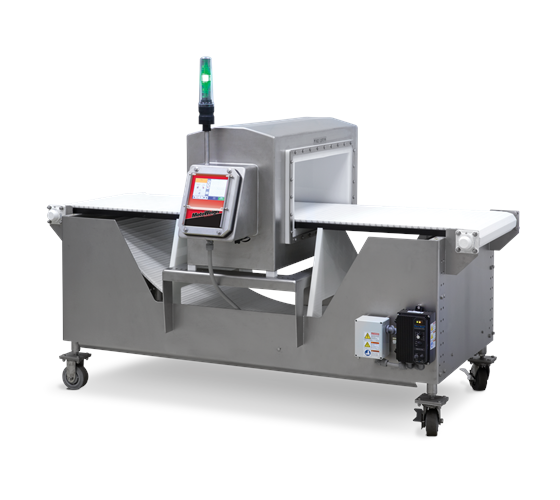

Metal Detector with Conveyor
186290 System,Metal Detection 26×6 Aperture size 24×84 Conveyor Modular, variable-speed belting Quickly disassembled for routine cleaning 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $33,216.00
170695 System,Metal Detection 8×4 Aperture size 6×60 Conveyor Modular, variable-speed belting Quickly disassembled for routine cleaning 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $32,785.00
170704 System,Metal Detection 8×6 Aperture size 6×60 Conveyor Modular, variable-speed belting Quickly disassembled for routine cleaning 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $32,785.00
170705 System,Metal Detection 8×8 Aperture size 6×60 Conveyor Modular, variable-speed belting Quickly disassembled for routine cleaning 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $32,785.00
170706 SHOW, Metal Detection 8×10 Aperture size 6×60 Conveyor Modular, variable-speed belting Quickly disassembled for routine cleaning 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $32,785.00
170707 System,Metal Detection 8×12 Aperture size 6×60 Conveyor Modular, variable-speed belting Quickly disassembled for routine cleaning 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $32,563.00
170708 System,Metal Detection 14×6 Aperture size 12×60 Conveyor Modular, variable-speed belting Quickly disassembled for routine cleaning 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $24,369.13
170709 System,Metal Detection 14×8 Aperture size 12×60 Conveyor Modular, variable-speed belting Quickly disassembled for routine cleaning 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $24,369.13
170710 System,Metal Detection 14×10 Aperture size 12×60 Conveyor Modular, variable-speed belting Quickly disassembled for routine cleaning 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $24,369.13
170711 System,Metal Detection 14×12 Aperture size 12×60 Conveyor Modular, variable-speed belting Quickly disassembled for routine cleaning 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $24,369.13
170712 System,Metal Detection 14×14 Aperture size 12×60 Conveyor Modular, variable-speed belting Quickly disassembled for routine cleaning 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $24,369.13
170713 System,Metal Detection 20×6 Aperture size 18×72 Conveyor Modular, variable-speed belting Quickly disassembled for routine cleaning 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $26,901.59
170714 System,Metal Detection 20×8 Aperture size 18×72 Conveyor Modular, variable-speed belting Quickly disassembled for routine cleaning 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $26,901.59
170715 System,Metal Detection 20×10 Aperture size 18×72 Conveyor Modular, variable-speed belting Quickly disassembled for routine cleaning 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $26,901.59
170716 System,Metal Detection 20×12 Aperture size 18×72 Conveyor Modular, variable-speed belting Quickly disassembled for routine cleaning 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $26,901.59
170717 System,Metal Detection 20×14 Aperture size 18×72 Conveyor Modular, variable-speed belting Quickly disassembled for routine cleaning 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $26,901.59
170718 System,Metal Detection 20×16 Aperture size 18×72 Conveyor Modular, variable-speed belting Quickly disassembled for routine cleaning 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $26,901.59
170719 System,Metal Detection 20×18 Aperture size 18×72 Conveyor Modular, variable-speed belting Quickly disassembled for routine cleaning 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $26,901.59
170720 System,Metal Detection 20×20 Aperture size 18×72 Conveyor Modular, variable-speed belting Quickly disassembled for routine cleaning 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $26,901.59
170721 System,Metal Detection 26×8 Aperture size 24×84 Conveyor Modular, variable-speed belting Quickly disassembled for routine cleaning 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $30,131.63
170722 System,Metal Detection 26×10 Aperture size 24×84 Conveyor Modular, variable-speed belting Quickly disassembled for routine cleaning 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $30,131.63
170723 System,Metal Detection 26×12 Aperture size 24×84 Conveyor Modular, variable-speed belting Quickly disassembled for routine cleaning 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $30,131.63
170724 System,Metal Detection 26×14 Aperture size 24×84 Conveyor Modular, variable-speed belting Quickly disassembled for routine cleaning 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $30,131.63
170725 System,Metal Detection 26×16 Aperture size 24×84 Conveyor Modular, variable-speed belting Quickly disassembled for routine cleaning 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $30,131.63
170726 System,Metal Detection 26×18 Aperture size 24×84 Conveyor Modular, variable-speed belting Quickly disassembled for routine cleaning 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $30,131.63
170727 System,Metal Detection 26×20 Aperture size 24×84 Conveyor Modular, variable-speed belting Quickly disassembled for routine cleaning 304 SST Washdown NEMA 4x, IP69k 7 inch color touchscreen display Password protected access Auto setup and product learning Easily managed product boundaries/rejection USB port for data collection List price: $30,131.63
