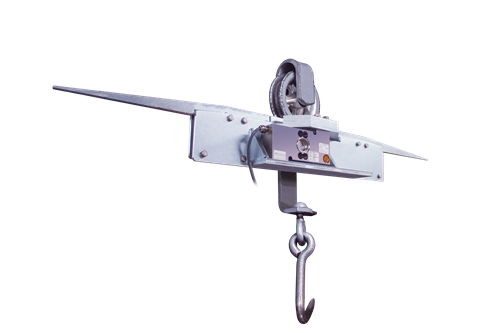

MS200 Portable Monorail Scale
$0.00
Download product PDF
Features
- 8-inch live-rail designed to weigh one trolley
- 750 × 0.5 lb resolution
- Compatible with both 3/8 in and 1/2 in rails
- Requires less than 41 in of straight rail to install
- Electroless nickel plated, steel construction
- 25 ft of load cell cable for flexible installation
- Slightly recessed live-rail for the trolley roller provides stable weighments
Specifications
Construction:
Electroless nickel plated steel construction, stainless steel hardware
Load Cell Construction:
Stainless steel |
Bridge Resistance:
350 ohm nominal
Rated Output:
2 mV/V
Nonlinearity:
0.03% full scale |
Warranty:
One-year limited
Approvals:
NTEP 90-003, Class III, 1,500 d |
Options
| 19743 |
Scale,Monorail MS200HB Portable 750x.5 lb NTEP III 1.5 USDA Zinc. Compatible with both 3/8″ and 1/2″ rails. |
|
|
| 16984 |
LIT,Installation Manual MS200 and MS202 Monorail Scale (English) |
|
|
| 167585 |
Load Cell,SPT 1510-500kg 25ft 2mv/v 350 Ohm TH SST WS NTEP III S Monorail |
|
|
| 216728 |
Monorail, Config and Cal Indicator Configuration and Monorail Calibration. Includes: Larger Crate Required for Indicator and Monorail Packaging. |
|
|
