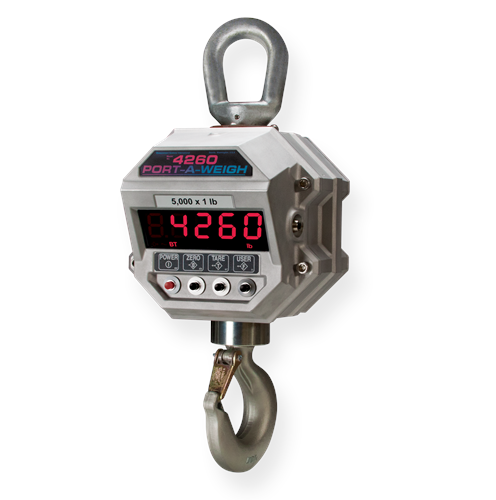

MSI-4260 Port-A-Weigh Crane Scale

$0.00

  • Crane unit with 5-digit, 1.2 in (30 mm) LED display
  • Top lifting eye or shackle, bottom thrust bearing swivel hook
  • 12 volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger (NA plug standard)
  • NEMA Type 4 IP66 rated, not safe for emersion but able to be used outdoors
  • Intrinsically Safe configurations available
  • Optional approvals:?FM cFMus and ATEX
Download product PDF
Category:

Features

? Crane unit with five-digit, 1.2in (30mm) LED display
? Top lifting eye or shackle, bottom thrust bearing swivel hook
? 12 volt rechargeable battery and universal 115/230 VAC, 50/60Hz
battery charger (NA plug standard)

Specifications

Accuracy:
? (0.1% +1 d) of applied load
Resolution:
3,000 to 5,000 d standard (up to 10,000 d available)
Enclosure:
NEMA Type 4, IP66 marine grade 356 alloy anodized
cast aluminum
Lifting Eye, Shackle & Hook:
Crosby or equal with 360? thrust-bearing swivel hook
Design Overload:
200% Safe / 500% Ultimate (except where noted)
Functions:
Power: Turns unit on or off
Zero: Zeros applied load up to 100% of capacity
(limited range in NTEP Certified configuration)
Tare: Tares applied load and displays weight in Net
mode F1: Programmable as test, units, net/gross, total
and peak hold
Display:
Five-digit, 1.2 in (30mm) LED with programmable
brightness control
Displayable Units:
Pounds or kilograms selectable
Annunciators:
COZ, Net, Gross, Total, Peak, Low Battery, lb/kg,
Motion, Setpoints
Power:
12 volt rechargeable battery. 115/230 VAC battery
charger is included
Operating Time:
Up to 200 hours between charging with typical use,
less with RF Modem option
Operating Temperature:
-40? F to 122? F (Industrial)
Auto-Off Mode:
Select for 15, 30, 45 minutes, 1 hour or Off
Auto Sleep Mode:
Power down during non-use and power up with
weight change or any key press
Service Counters:
Counts number of lifts over percentage of capacity and
lifts over capacity
Calibration:
Digital
Filtering:
OFF, LO, HI-1, HI-2 selectable
Warranty:
One-year limited warranty
Approvals:
NTEP CC 89-090 – 500 lb-2,000 lb (250 kg-1,000 kg)
NTEP CC 89-090A1 – 5,000 lb-70,000 lb (2,000 kg35,000 kg)

Options

(Contact Arlington Scale for application consultation)
? Rugged remote control (control for Off, Zero, Tare and other functions)
? RF modem install for connectivity to MSI-8000, MSI-8000HD RF,
MSI-8004HD RF remote display (100 ft line of sight)
? NTEP Certified configuration
? Anti-heat shielding for high temperature applications
? Substitute bottom swivel hook with shackle
? Oversized top lifting eye or shackle
? Oversized bottom hook
? Universal direct power supply; 85-265 VAC, 47?440Hz / 130?300 VDC
? Low headroom top adapter
? Audible alarm
? Wi-Fi or Bluetooth communications (additional use with MSI-ScaleCore Connect
(available for download at Google Play Store))
? Potential receivers: MSI-8000, MSI-8000HD RF, MSI-8004HD RF, TranSend, LaserLight2
? Custom top and bottom interfaces
? Factory Mutual and ATEX approved Intrinsically Safe models available

Models

139460? ??MSI-4260B 500 Lb Final Assembly, Port-A-Weigh Crane Scale. Standard Features Include: 5-Digit LED Display, Top Lifting Eye, And Bottom Thrust-Bearing Swivel Hook. A Twelve-Volt Rechargeable Battery And Universal Charger Are? ? ? ? ? ? ? ? ? ? ? ? ? ? ?Also Included.250 kg500 lbs

139461? ??MSI-4260B 2000 Lb Final Assembly, Port-A-Weigh Crane Scale. Standard Features Include: 5-Digit LED Display, Top Lifting Eye, And Bottom Thrust-Bearing Swivel Hook. A Twelve-Volt Rechargeable Battery And Universal Charger Are? ? ? ? ? ? ? ? ? ? ? ? ?Also Included.1000 kg2000 lbs

139462? ??MSI-4260B 5000 Lb Final Assembly, Port-A-Weigh Crane Scale. Standard Features Include: 5-Digit LED Display, Top Lifting Eye, And Bottom Thrust-Bearing Swivel Hook. A Twelve-Volt Rechargeable Battery And Universal Charger Are? ? ? ? ? ? ? ? ? ? ? ? ?Also Included.2500 kg5000 lbs

139463??MSI-4260B 10000 Lb Final Assembly, Port-A-Weigh Crane Scale. Standard Features Include: 5-Digit LED Display, Top Lifting Eye, And Bottom Thrust-Bearing Swivel Hook. A Twelve-Volt Rechargeable Battery And Universal Charger Are? ? ? ? ? ? ? ? ? ? ? ? Also Included.5000 kg10000 lbs

139464? ?MSI-4260B 20000 Lb Final Assembly, Port-A-Weigh Crane Scale. Standard Features Include: 5-Digit LED Display, Top Lifting Eye, And Bottom Thrust-Bearing Swivel Hook. A Twelve-Volt Rechargeable Battery And Universal Charger Are? ? ? ? ? ? ? ? ? ? ? Also Included.10000 kg20000 lbs

139465? ?MSI-4260B 30000 Lb Final Assembly, Port-A-Weigh Crane Scale. Standard Features Include: 5-Digit LED Display, Top Lifting Eye, And Bottom Thrust-Bearing Swivel Hook. A Twelve-Volt Rechargeable Battery And Universal Charger Are? ? ? ? ? ? ? ? ? ? ? Also Included.15000 kg30000 lbs

139466? ?MSI-4260B 50000 Lb Final Assembly, Port-A-Weigh Crane Scale. Standard Features Include: 5-Digit LED Display, Top Lifting Eye, And Bottom Thrust-Bearing Swivel Hook. A Twelve-Volt Rechargeable Battery And Universal Charger Are? ? ? ? ? ? ? ? ? ? ? Also Included.25000 kg50000 lbs

139467? ?MSI-4260B 70000 Lb Final Assembly, Port-A-Weigh Crane Scale. Standard Features Include: 5-Digit LED Display, Top Lifting Eye, And Bottom Thrust-Bearing Swivel Hook. A Twelve-Volt Rechargeable Battery And Universal Charger Are? ? ? ? ? ? ? ? ? ? ? ?Also Included.35000 kg70000 lbs

139468? ?MSI-4260B 100000 Lb Final Assembly, Port-A-Weigh Crane Scale. Standard Features Include: 5-Digit LED Display, Top Lifting Eye, And Bottom Thrust-Bearing Swivel Hook. A Twelve-Volt Rechargeable Battery And Universal Charger Are? ? ? ? ? ? ? ? ? ? Also Included.50000 kg100000 lbs
