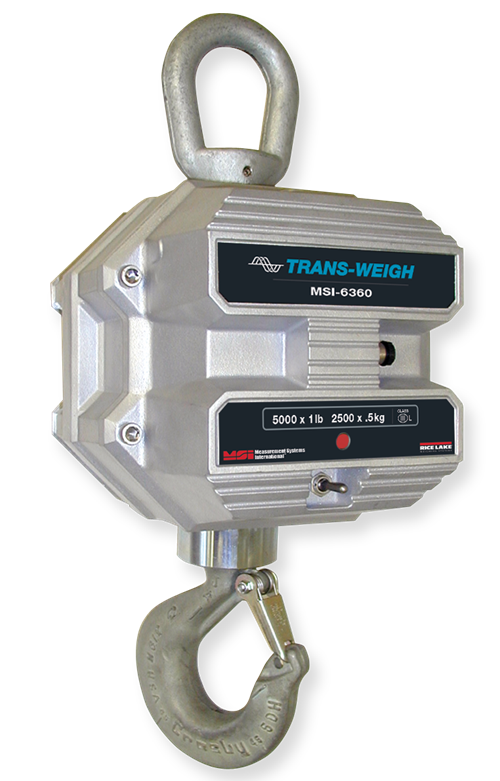

MSI-6360 Trans-Weigh Crane Scale

$0.00

Download product PDF
Category:

Features

  • Top lifting eye or shackle, bottom thrust bearing swivel hook
  • 12 volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger (NA plug standard)
  • RF modem install for connectivity to MSI-8000, MSI-8000HD RF, MSI-8004HD RF
    remote display, TranSend™ and LaserLight2 remote display. Typically 100ft – 300ft, line of sight;
    for longer range consult factory.
  • Meets or exceeds OSHA, ANSI, ASME and other safety design standards (5:1 Ultimate Safety Factor)

Options
(Contact MSI for application consultation)

  • Anti-heat shielding for high-temperature applications
  • Rugged Remote (control for on/off, zero, tare, and other functions)
  • Substitute bottom swivel hook with shackle
  • Oversized top lifting eye or shackle
  • Oversized bottom hook
  • Low headroom top adapter
  • Universal direct power supply; 85 to 265 VAC, 47 to 440 Hz / 130 to 300 VDC
  • Wi-Fi communication is available for specialty applications
  • Custom top and bottom interfaces
  • Crane scale cart

Specifications

Accuracy:
± (0.1% +1 d) of capacity

Resolution:
3,000 to 5,000 d standard (Up to 10,000 d available)

Enclosure:
NEMA Type 4, IP66, marine grade 356 alloy anodized cast aluminum

Lifting Eye, Shackle & Hook:
Crosby® or equivalent with 360° thrust-bearing swivel hook

Design Overload:
200% Safe / 500% Ultimate (except where noted)

 Functions:
On/Off

Displayable Units:
Pounds or kilograms selectable

Power:
12 Volt rechargeable battery, 115/230 VAC battery charger included

Operating Time:
Up to 40 hours between charging with typical use

Temperature Range:
Operating: -40 °F to 176 °F (-40 °C to 80 °C)
Certified: 14 °F to 104 °F (-10 °C to 40 °C)

 Calibration:
Digital via MSI ScaleCore remote device

Radio Link:
802.15.4 at 2.4 GHz

Radio Link Effective Range:
Typically 100 to 300 ft line of sight

Warranty:
One-year limited

Approvals:
NTEP 19-122: 500 to 70,000 lb

Options

215829 MSI-6360 500LB TRANSWEIGH F/A. RADIO LINK, SCALECORE SOFTWARE, 12 VDC BATTERY, SWIVEL HOOK
215830 MSI-6360 2K TRANS-WEIGH F/A. RADIO LINK, SCALECORE SOFTWARE, 12 VDC BATTERY, SWIVEL HOOK
215831 MSI-6360 5K TRANS-WEIGH F/A. RADIO LINK, SCALECORE SOFTWARE, 12 VDC BATTERY, SWIVEL HOOK
215832 MSI-6360 10K TRANS-WEIGH F/A. RADIO LINK, SCALECORE SOFTWARE, 12 VDC BATTERY, SWIVEL HOOK
215833 MSI-6360 20K TRANS-WEIGH F/A. RADIO LINK, SCALECORE SOFTWARE, 12 VDC BATTERY, SWIVEL HOOK
215834 MSI-6360 30K TRANS-WEIGH F/A. RADIO LINK, SCALECORE SOFTWARE, 12 VDC BATTERY, SWIVEL HOOK
215836 MSI-6360 70K TRANS-WEIGH F/A. RADIO LINK, SCALECORE SOFTWARE, 12 VDC BATTERY, SWIVEL HOOK
215837 MSI-6360 100K TRANS-WEIGH F/A. RADIO LINK, SCALECORE SOFTWARE, 12 VDC BATTERY, SWIVEL HOOK
144773 RADIO MODULE XBEE-PRO 802.15.4 U.FL CONNECT
139381 MSI-8000 Remote Display RF Handheld (Requires an MSI Crane Scale or MSI-7300 equipped with a RF modem)
173014 MSI-Rugged Remote Control Non-CE for Products with XBEE Radios
153591 FINAL ASSY REMOTE DISPLAY AC POWER 8000HD
178281 8004HD Display AC, RedGrn 1.5in Dual Color LED Display, 85~264VAC
178004 4in LASERLIGHT2 MSI RF Includes ScaleCore RF Kit and Tilt Mounting Bracket
178006 6in LASERLIGHT2 MSI XBEE RF Includes ScaleCore RF Kit and Tilt Mount Bracket
159221 MSI CRANE CART (48.50)
175308 Modem WiFi 802.11b/g U.FL xBee Footprint. Microchip RN171XVU-I/RM.
Consult AC power supply
Consult Anti-heat shield
Consult Audible alarm
