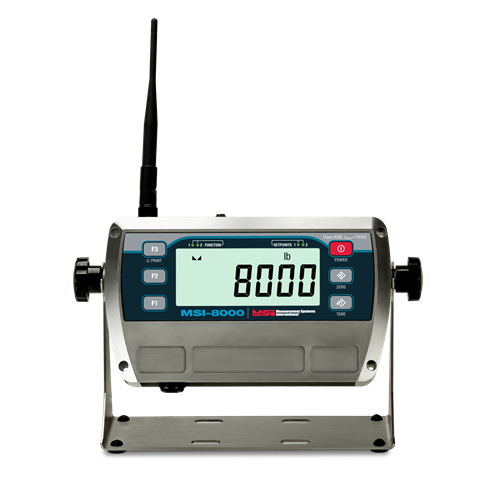

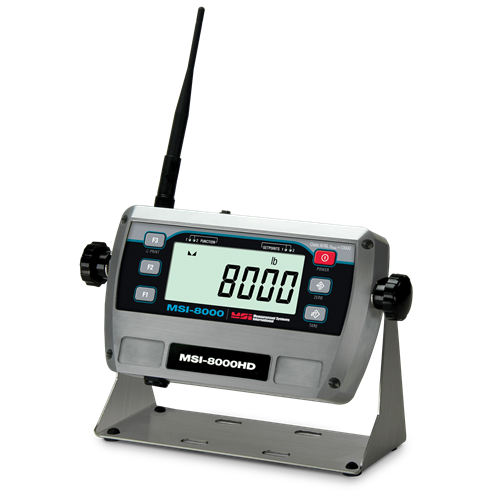

MSI-8000HD Indicator/Remote Display

$0.00

Fortified by the acclaimed reputation of its star precursor, MSI-8000HD is the heavy duty version of the reputable handheld MSI-8000 RF remote display. The milled anodized aluminum, IP68-rated, enclosure is mountable in either a direct panel mount or optional tilt stand. The full waterproof construction resists most elements making it especially appealing to the petro-chemical, energy, marine and aerospace industries. Fully compatible with all MSI ScaleCore-based crane scales and dynamometers, the MSI-8000HD provides utmost versatility for any application.

Rugged, Versatile Communication

User-definable function keys and a bold six-digit one inch display ease usability and readability. Process control, safety and other systems benefit with optional relays installed to optimize workflow and operator ease. The MSI-8000HD meters may be used as a fully functional weigh meter with the standard inclusion of a precision 24-bit A/D. Additionally, the MSI-8000HD-2 has RF capability to transmit data to a secondary MSI-8000 or non-A/D MSI-8000HD. Wi-Fi, Ethernet or serial option cards are available for direct connections to networks and computers for advanced traceability and reporting.

Download product PDF
Category:

Features

  • Compatible with all ScaleCore™-based products including: MSI-7300 Dyna-Link 2, MSI-3460 Challenger 3, MSI-4260 Port-A-Weigh, MSI-7000 and MSI-7001 TranSend™, MSI-9600HT and MSI-6360
  • LCD display
  • IP68 milled aluminum enclosure
  • Time and date
  • Membrane keypad for remote-control functionality
  • User-definable function keys for added versatility
  • Swivel tilt stand

Options
(Contact MSI for application consultation)

  • Up to 8 configurable relay outputs
  • Wi-Fi communications
  • 802.15.4 Serial RF
  • FHSS
  • Wired Ethernet

Specifications

Power:
90-267 VAC, 9-36 VDC, 18-72 VDC, 120-300 VDC
Optional battery power module available

Excitation Voltage:
4.8V current limited and over-voltage protected

RF Remote Channels:
Up to four remote sensors, monitored individually, in pairs or sum all (non-A/D version only)

Service Counters:
A/D version only

A/D Inputs:
Two independent or summing load cell inputs

Filtering:
Off, Low, Hi-1, Hi-2



RF Radio Link:
2.4 GHz 802.15.4
Compatible with all ScaleCore™ based products including:
MSI-7300 Dyna-Link 2, MSI-3460 Challenger 3,
MSI-4260 Port-A-Weigh, MSI-7000 and MSI-7001

RF Effective Range:
Typically 100 to 300 ft, line of sight; for longer range consult factory

Communication Ports:
Dual RS-232 communication ports

Optional Communications:
Wi-Fi
Serial RF (Single Sequence or FHSS)

Annunciators:
Stable, COZ, peak, kg, kN. lb, M, ton, setpoint, function LEDs
Channels: 1, 2, 3, 4, TTL

Display:
Six-digit 1.0 in (26.4 mm) LCD

Units Displayed:
Pounds, kilograms, tons, metric tons, kilonewtons

Keys/Buttons:
On/Off, Zero (100%), Tare, Print, and Two user-defined keys for the following functions: peak hold, high resolution, total, view total, net/gross, units switching

Rating/Material:
Enclosure: NEMA Type 4, IP68 milled anodized aluminum with O-ring gaskets

Temperature Range:
Operating: -4 °F to 140 °F (-20 °C to 60 °C)
Certified: 14 °F to 104 °F (-10º °C to 40 °C)

Warranty:
One-year limited

Approvals:
NTEP CC 15-110 (-10 °C to 40 °C)

Options

153591 FINAL ASSY REMOTE DISPLAY AC POWER 8000HD
154853 FINAL ASSY REMOTE DISPLAY BATTERY POWER 8000HD
160476 FINAL ASSY REMOTE DISPLAY 8000HD 7-36VDC Non Isolated
159377 FINAL ASSY REMOTE DISPLAY 8000HD 18-72VDC Isolated
159376 FINAL ASSY REMOTE DISPLAY 8000HD 9-36VDC Isolated
158427 Final Assy 8000HD Meter Non-RF AC Power
158428 Final Assy 8000HD Meter Non-RF Battery Power
160478 FINAL ASSY 8000HD METER NON-RF 7-36VDC Non Isolated
159381 FINAL ASSY 8000HD METER NON-RF 18-72VDC Isolated
159380 FINAL ASSY 8000HD METER NON-RF 9-36VDC Isolated
158425 Final Assy 8000HD Meter RF AC Power
158426 Final Assy 8000HD Meter RF Battery Power
160477 FINAL ASSY 8000HD METER RF 7-36VDC Non Isolated
159379 FINAL ASSY 8000HD METER RF 18-72VDC Isolated
159378 FINAL ASSY 8000HD METER RF 9-36VDC Isolated
176958 Final Assy 8000HD Meter WIFI, AC Power
176960 Final Assy 8000HD Meter WIFI, Battery Power
176964 Final Assy 8000HD Meter WIFI, 7-36VDC Non Isolated
176966 Final Assy 8000HD Meter WIFI, 9-36VDC Isolated
176968 Final Assy 8000HD Meter WIFI, 18-72VDC Isolated
