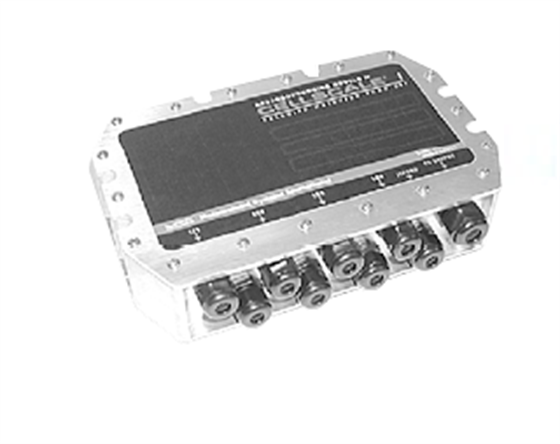

MSI-9002 Breakout Summing Box

Features

?4 precision metal film summing resistors with 15 turn pots
?All inputs transient protected and EMI filtered
?Each input can be switched in or out
?Screwless terminals for all wires. Accommodates AWG 16 to 24 wire
?Designed for AC or DC excitation
?Uses signal trim summing
?Rugged milled aluminum, O-ring gasketed, NEMA 4, IP65 (NEMA 6, IP67 with optional connectors by special order)
?8 waterproof feedthroughs for load cell cabling and 1 large feedthrough for output to CellScale
?Comes with 3 m (10 ft) interface cable to the CellScale. Longer cables available by special order
?User supplies all other cables (usually part of the load cell or scale)
?Feedthrough connectors accommodate round cables with diameters from 4 mm (0.16 in) to 8 mm (0.31
