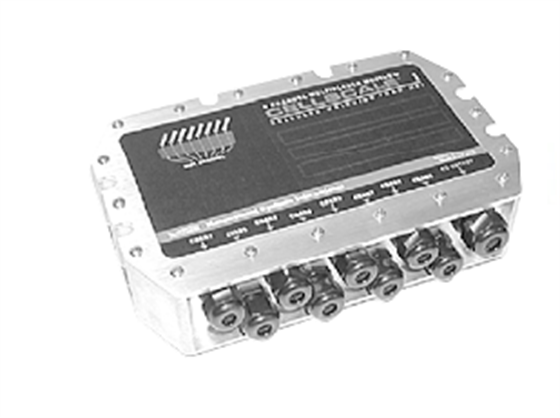

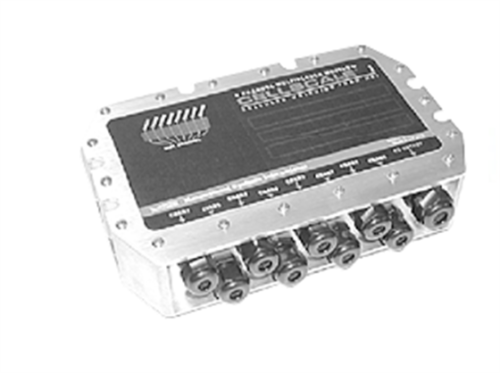

MSI-9008 Multiplexer

Features

?New generation analog switches
?All inputs transient protected and EMI filtered
?Excitation switched for reduced power consumption and increased load cell count
?Screwless terminals for all wires. Accomodates AWG 16 to 24 wire
?Designed for AC or DC excitation
?The Mux channel is controlled by a three bit signal from the CellScale
?Rugged milled aluminum, O-ring gasketed, NEMA 4, IP65 (NEMA 6, IP67 with optional connectors by special order)
?8 waterproof feedthroughs for load cell cabling and 1 large feedthrough for output to CellScale
?Comes with 3m (10 ft) interface cable to CellScale. Longer cables available by special order
?User supplies all other cables (usually part of the load cell or scale). Feedthrough connectors accomodate round cables with diameters from 4 mm (0.16 in) to 8 mm (.31 in)
