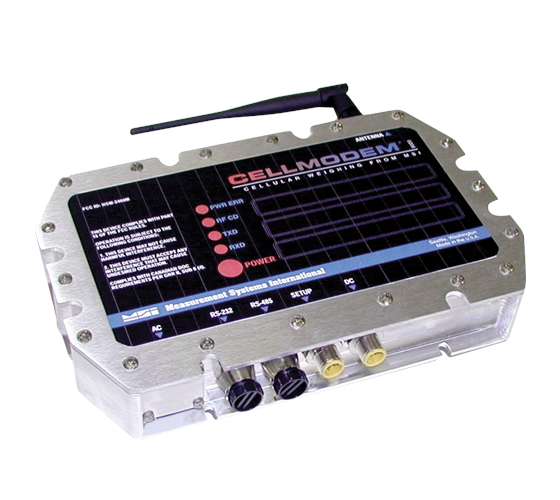

MSI-9020 CellModem

$0.00

The CellModem provides a wireless interface from a CellScale to any serial device with support for computers, scoreboards, printers, PLCs and virtually any serial connected device

Download product PDF
Categories: ,

Features

  • Modem only component; provides serial interface with computers, printers and scoreboards to a CellScale network
  • 2.4 GHz spread spectrum frequency hopping
  • Power cable, 13 ft (4 m) for 9-30 VDC input
  • One communication port; RS-232 or RS-422, 13 ft (4 m) interface cable
  • NEMA Type 4, IP65 enclosure (NEMA Type 6, IP67 with long range antenna)

Specifications

Enclosure:
NEMA Type 4, IP65 milled anodized aluminum with O-ring gaskets
NEMA Type 6, IP67 with optional long range antenna

Weight:
3.5 lb (1.6 kg)

Annunciators:
3 LED status lamps for Power, Data TX/RX and Configuration

Power Input:
9-30 VDC (Internal 85-265 VAC, 47-440 Hz power supply optional)

Operating Temperature:
-4?F to 158?F (-20?C to 70?C)

Radio Link:
FHSS at 2.4 GHz (up to 64 network selections)

Radio Link Effective Range:
Typically 500 ft (150 m) indoor, 1000 ft (300 m) outdoor with standard antennas.
(See optional antennas for longer range)

Standard Antenna:
1/2 wave 2dBi, articulated

RFI/EMI Shielding:
Exceeds NIST HB44 and CE Standards

Data I/O:
1 Comm Port with two connector interfaces for RS-232 and RS-422

Warranty:
One-year limted

Approvals:
NTEP CC 05-077

Models

Part #?138477Product DescriptionFINAL ASSY 9020 2450 DC
