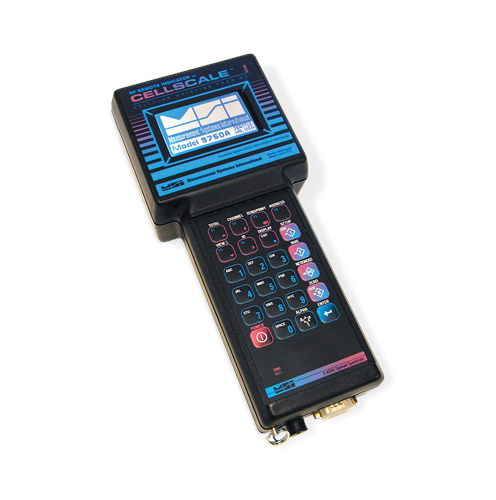

The MSI-9750A CellScale RF portable indicator functions as a simple, easy-to-use, full-featured portable RF terminal when networked with other CellScale family products.
Compatible with MSI-6260CS, MSI-9300 and MSI-9000 CellScale
1.4 in x 2.6 in (36 mm x 67 mm), eight line, 21 character LCD display
2.4 GHz spread spectrum transceiver
Power supply: six cell NiMH battery pack
Charger board: SMD NiMH fast charge (charges battery pack in two hours or less)
RS-232 data I/O
Real-time clock
NEMA Type 3, IP55 enclosure
AC adapter/battery charger; 90-264 VAC, 47-63 Hz (NA plug standard)
Specifications
Enclosure:
NEMA Type 3, IP54 ,Rugged Molded PVC, O-ring gasketed.
Dimensions:
4.6in x 10.3in x 2.4 in (117 x 262 x 60.5 mm)
Weight:
2.2 lb (1 kg)
Keypad:
24 keys?11 key alphanumeric, 7 control keys and 6 user programmable keys.
Password protected with lock feature
Display:
1.4in x 2.6in (36 x 67 mm) backlight LCD capable of 8 lines, 21 characters each. Backlight selectable On, Off or Automatic. Red/Green LED battery charging indicator
Operating Time:
Up to 8 hours typical use. Selectable automatic shut off for battery conservation
Operating Temperature:
-4? to 158?F (-20? to 70?C)
Radio Link:
FHSS at 2.4 GHz (Up to 64 network selections)
Radio Effective Range:
Typically 500 ft (150 m) indoors, 1000 ft (300 m) outdoors with standard antennas
RFI/EMI Shielding:
Exceeds NIST HB44 and CE Standards
Connectors:
Charger Input: Standard 2.5 mm coaxial; RS-232: Standard DB-9 male
Warranty:
One-year limited
Approvals:
NTEP CC 05-077
Models
Part #?138486
Product DescriptionMSI-9750A RF Indicator Final Assembly, Portable. Compatible With MSI-6260CS, MSI-9300 And MSI-9000 CellScale. Includes Integrated Rechargeable Battery And Universal Charger
