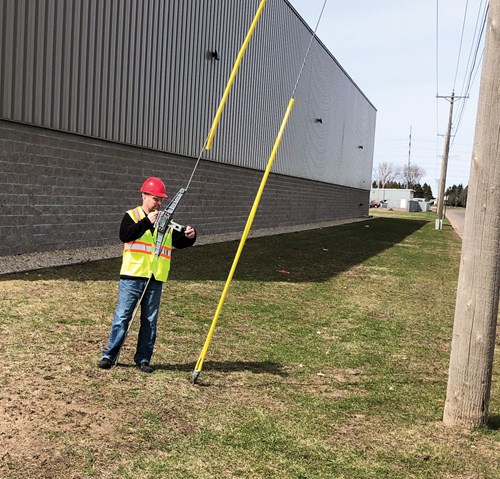

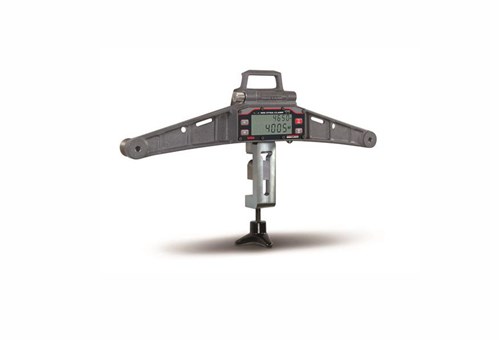

The MSI Dyna-Clamp tension meter has a wire rope engagement site window to help ensure accurate tension readings. The MSI Dyna-Clamp features an easy-turn power screw, to make measuring wire rope tension simple and effortless, even in difficult environments.
Meeting Safety Standards with Every Application
The MSI Dyna-Clamp has accommodations for a safety strap, complying with OSHA requirements. Users can measure wire ropes with up to one-inch diameters without changing equipment.
Large, Easy-To-Read Display
The Dyna-Clamp’s large LCD display can be clearly read in bright, sunny conditions and features a scratch-resistant overlay for added durability. Two lines on the display allow users to view two measurements. The live wire rope tension is prominently displayed on the primary display line, while the secondary display line is configurable to show wire rope diameter, average tension, or peak tension.
Up to 8 factory calibrations included at no additional cost
Options
(Contact MSI for application consultation)
Heavy-duty carrying case
Specifications
Power:
Battery operated two AA cells 1.5 V alkaline batteries
(can be replaced with rechargeable NiMH cells)Max Tension:
12,500 lbf (5,670 kgf /55.60 kN)
Operating Time:
Alkaline AA-cells: 24 hours
Wire Rope:
Diameter 3/16 in (5 mm) to 1 in (25 mm)
Accuracy:
±3% of capacity
Units:
lbf, kgf, kN
Resolution:
Standard: 2,500 divisions
Display:
Primary display (bottom) six, 0.7 in (18 mm) numeric digits
Secondary display (top) eight, 0.5 in (13 mm) numeric digitsFunction Keys:
Two programmable keys (user-defined) – F1, F2
(test, unit, print, scroll, actfun)
Two permanent keys – power, zero
Setpoints:
Two dedicated setpoints for minimum and maximum allowable wire rope tension (LEDs for
measurements outside of allowable range)
Auto-Off Mode:
Prolongs battery life by turning power OFF after 15, 30, 45 or 60 minutes of no activity (user determined)
Enclosure:
IP65 powder-coated aluminum frameCalibration:
Up to eight factory programmed wire rope calibrations
Operating Temperature:
-4 °F to 122 °F (-20 °C to 50 °C)
Operator Use:
Outdoor
Storage:
Indoor
Warranty:
Two-year limited
Approvals:
CE Marked
UKCA
Options
189581
Dyna-Clamp Line Tensiometer for 1.0in Rope 12,500lbs
