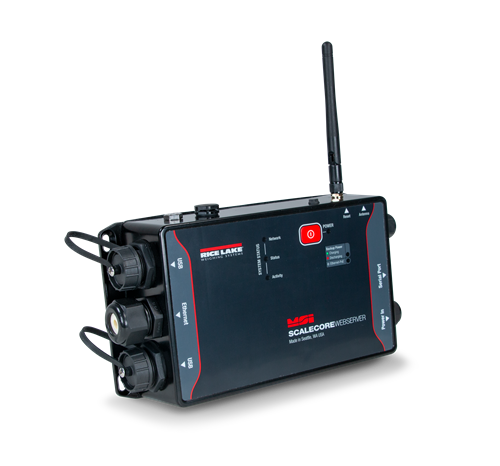

MSI ScaleCore Webserver is a network interface with a built-in web-browser allowing remote monitoring of your scale system from virtually anywhere.
Multiple Weighing Devices
Communicate with any combination of up to seven devices and any MSI ScaleCore based scale or weighing instrument equipped with Wi-Fi modem.
This can include:
MSI-3460
MSI-4260
MSI-4260M
MSI-7300*
MSI-8000
MSI-8000HD
MSI-8004HD
MSI-7000
MSI-7000HD
MSI-7001
MSI-7001HD
*(consult for applications utilizing the MSI-7300)
Operators have the option of viewing individual scale weights or easily summing several scales together. This makes the MSI ScaleCore Webserver ideal for applications utilizing multiple pick points in a lifting application or for viewing individual tank leg values for load cell mount kits.
Wireless Network Router
MSI ScaleCore Webserver can operate as its own wireless router or be used in conjunction with an existing wireless network to connect with each weighing device. A tiered login for supervisors and operators will help simplify operation by protecting critical functions and settings not used in day-to-day processes.

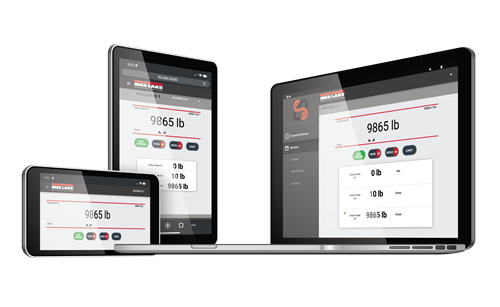

Display and control multiple ScaleCore based scales, indicators, remote displays and receivers through network connected devices using a web browser, including cell phones, tablets, and PCs.
Capable of functioning either with an existing Wi-Fi network or as its own Wi-Fi router
Can be powered by a dedicated power input or directly through the Ethernet cable where PoE (Power over Ethernet) is supported
RS-232 communications at up to 460 Kbps
Scale / load cell summing
Tiered login to limit scale functionality for different levels of users
Specifications
Minimum System Requirements:
Will display on any device with a web browser supporting HTML 5
Connected ScaleCore based MSI scales and indicators are required to have the optional Wi-Fi radio module
Connectivity:
Wi-Fi 2.4 GHz IEEE 802.11g
Gigabit Ethernet
2 × USB 2.0 Interface
RS-232 Serial
Status Annunciators:
Units (lb, kg, short tons (tn), metric tons (t), (NONE) gross/net, motion, center of zero
Operating Temperature:
-10 °C to 40 °C (14 °F to 104 °F)
Effective Range:
Typically 100 to 300 ft, line of sight; for longer range consult factory
Enclosure:
IP65, aluminum black powder coated (excludes 85 to 265VAC model)
Power:
5 to 6 VDC, 7 to 14 VDC, 85 to 265 VAC, PoE
Warranty:
One year limited
Approvals:
NTEP CC 21-098 Classes III and IIIL at 10,000d
