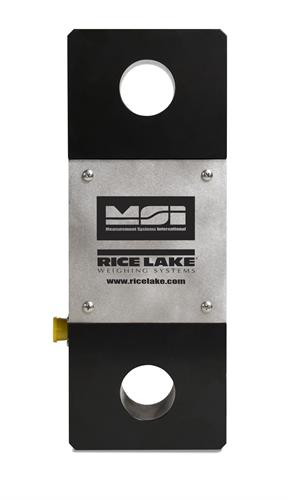

MSI Tension Link

The MSI tension link is an ideal integration solution for cranes. Install between a crane block and lifting equipment to provide force measurement for lifted items.

Category:

Features

The MSI Tension Link integrates between a crane block and lifting equipment to provide force measurement for lifted items, making it an ideal integration for cranes. The MSI Tension Link features a 7:1 safety factor for compliance with industrial and military safety requirements.

Specifications

Bridge:
Input Resistance:
1,500 ohm

Output Resistance:
2,000 ohm

Full Scale Output:
0.8mV/V

Material:
4340 steel

Accuracy:
0.1% of rated capacity

Connector Pin Out:
A:? EX+
B:? Sig +
C:? Sig ?
D:? EX-

Models

181907 2K? ? ? 7200 Style Load Cell?
181908 5K? ? ?7200 Style Load Cell?
181909 10K? ?7200 Style Load Cell?
178093 25K? ?7200 Style Load Cell?
178094 50K? ?7200 Style Load Cell?
181910 100K? 7200 Style Load Cell?

134505 Mating Cable Assembly, 10 ft
