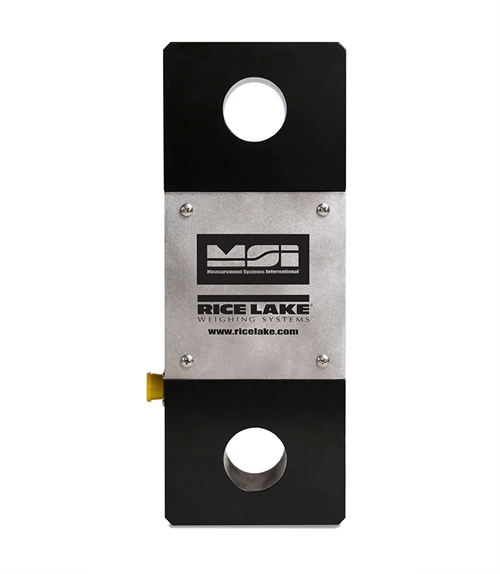

MSI Tension Link Load Cell

$0.00

The MSI Tension Link integrates between a crane block and lifting equipment to provide force measurement for lifted items, making it an ideal integration for cranes. The MSI Tension Link features a 7:1 safety factor for compliance with industrial and military safety requirements.

Download product PDF
Category:

Features

Integrates between a crane block and lifting equipment to provide force measurement for lifted items. This ideal integration for cranes features a 7:1 safety factor for compliance with industrial and military safety requirements.

Options
(Contact MSI for application consultation)

  • Crosby® top and bottom shackles

Specifications

Input Resistance:
1,500 ohmOutput Resistance:
2,000 ohm		 Full Scale Output:
0.8 mV/VConnector Pin Out:
A: EX +
B: Sig +
C: Sig —
D: EX —		 Accuracy:
0.1% sensor accuracyMaterial:
4340 steel

Options

181907 Final Assy 2K 7200 Style Load Cell Only
181908 Final Assy 5K 7200 Style Load Cell Only
181909 Final Assy 10K 7200 Style Load Cell Only
178093 Final Assy 25K 7200 Style Load Cell Only
178094 Final Assy 50K 7200 Style Load Cell Only
181910 Final Assy 100K 7200 Style Load Cell Only
165978 Cable, LP to 7001LC 6.5ft PT06-10-6S to M12 Shielded, PUR Outer Jacket, 2m
165979 Cable, LP to 7001LC 10ft PT06-10-6S to M12 Shielded, PUR Outer Jacket, 3m
165990 Cable, LP to 7001LC 25ft PT06-10-6S to M12 Shielded, PUR Outer Jacket, 7.6m
134505 Cable Assy,Mating 10 Foot Length 20 AWG
