Cardinal Scale’s PDX and MTX load cell kits may be used to retrofit Mettler Toledo™ PowerCell® digital load cells with Cardinal Scale SmartCell® DC series digital load cells. There is no junction box and no power at the scale needed with DC series digital load cells, offering you numerous advantages. These kits convert existing Mettler Toledo™ PowerCell® scales to SmartCell® DC digital load cells and give you access to iSite Cloud-based remote monitoring. The kits include NTEP and OIML legal-for-trade stainless steel, environmentally-sealed DC series digital load cells for years of trouble-free service. The anti-rotation system includes top and bottom cups that allow DC load cells to be interchangeable with Mettler Toledo™ PowerCell® digital load cells. The Cloud-based iSite remote monitoring software comes standard and offers e-mail and/or text alerts to authorized Cardinal Scale dealers, ensuring your scale is performing at all times during peak operations.
Plug-and-play digital load cell interconnect cables are included in the kits. They feature internal metal sheathing for rodent protection. The quick-connect cables form a watertight seal quickly and easily.

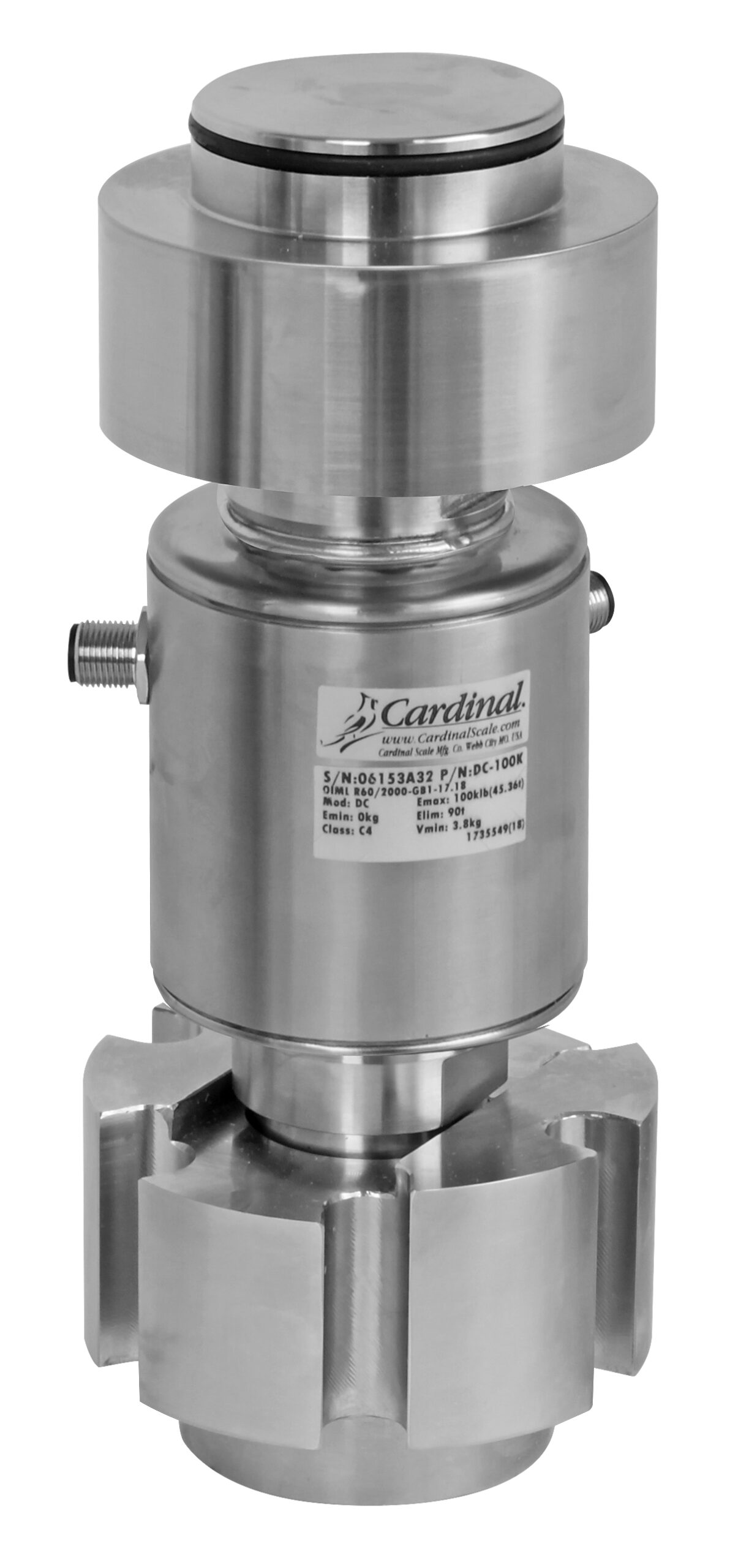

The top and bottom cups are CNC machined and precipitation hardened to a minimum of 40 Rockwell C to allow the integration of DC load cells into a scale that originally used a MTX or PDX load cell. These stainless steel cups maintain the effectiveness of Cardinal Scale’s anti-rotation mechanism while working with the MTX or PDX mounting arrangements.
Cardinal Scale’s patented software algorithm called SmartCal® allows a single technician to calibrate a scale by placing a test weight over each load cell only once. You simply move the test weight over a load cell, press a key, then repeat for the remaining load cells and you’ve calibrated the scale. This means one step: calibrate and trim in one pass!
The Cloud-based iSite remote monitoring software comes standard with all SmartCell-enabled scales and offers e-mail and/or text alerts to authorized Cardinal Scale dealers, ensuring your scale is performing at all times during peak operations. Cardinal Scale’s optional 225D Navigator weight indicator provides truck ID numbers and truck tares, plus diagnostic readouts onscreen for individual load cells connected to SmartCells.

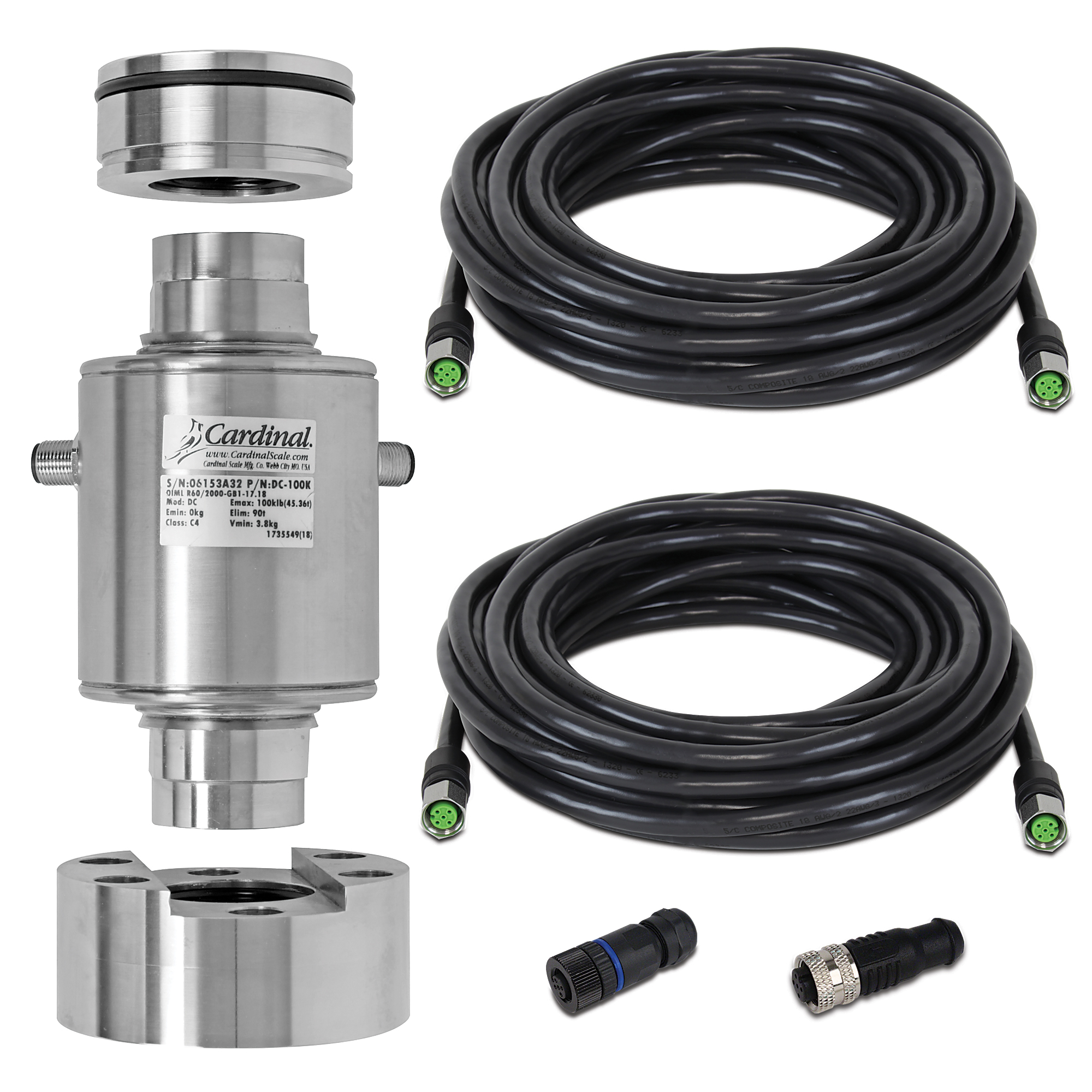

Complete Kit Includes:
4, 6, 8, 10, or 12 DC digital load cells
Top and bottom cups
15 ft and 27 ft bundles of load cell interconnect cables
Interchangeable with Mettler Toledo™ PowerCell® digital load cells
Both PDX and MTX conversion kits available (see models on back page)
Stainless steel, environmentally-sealed load cells for years of trouble-free service
High-capacity vehicle weighing
Heavy-duty compression load cells with self-centering column
OIML and NTEP certified for international use
Hermetically-welded, protection class IP69K load cells
Rugged enclosure for protection from the elements
Extra-robust upper and lower cups for optimal weighbridge support and stability
Durable stainless steel construction that is built to last
Machined precision and precipitation hardened
Specifications
Capacity (Model DC-50K): 22,700 kg / 50,000 lb Capacity (Model DC-100K): 45,000 kg / 100,000 lb Cell Type: Digital compression load cell Rated Output: Cardinal digital output Protection Class: IP69K Connectors: 5-Pin, M12 Male, A-Coding Construction: Stainless Steel NTEP Certification: 20-038 OIML Certification: R60/2000-GB1-17.18 Includes: iSite remote diagnostic monitoring software with e-mail and text alerts Mounting: Extra robust upper and lower receiver cups Min. Dead Load: 0%Ln Service Load: 120%Ln Safe Load Limit: 200% Rated Capacity Accuracy Class: 4,000 n. OIML Total Error: < ±0.013%Sn Repeatability Error: < ±0.015%Sn Temperature Effect on Zero: < ±0.01%Sn/5 °C Temperature Effect on Sensitivity: < ±0.006 %Sn/5 °C Creep Error: < ±0.012 %Sn Input Voltage Range: 12 V – 24 V Insulation Resistance: > 5000 MΩ Maximum Deflection (at Ln): 0.6-1 mm Temperature Compensation: -10 to +40˚C Temperature Limits: -50 to +60˚C (OIML certified up to +40˚C)
Models
DC-50K-PDX-4
Cardinal DC-50K Adapter Kit for PDX Load Cell Replacement, 4 Cell System
Call For Pricing
DC-50K-PDX-6
Cardinal DC-50K Adapter Kit for PDX Load Cell Replacement, 6 Cell System
Call For Pricing
DC-50K-PDX-8
Cardinal DC-50K Adapter Kit for PDX Load Cell Replacement, 8 Cell System
Call For Pricing
DC-50K-PDX-10
Cardinal DC-50K Adapter Kit for PDX Load Cell Replacement, 10 Cell System
Call For Pricing
DC-50K-PDX-12
Cardinal DC-50K Adapter Kit for PDX Load Cell Replacement, 12 Cell System
Call For Pricing
DC-100K-PDX-4
Cardinal DC-100K Adapter Kit for PDX Load Cell Replacement, 4 Cell System
Call For Pricing
DC-100K-PDX-6
Cardinal DC-100K Adapter Kit for PDX Load Cell Replacement, 6 Cell System
Call For Pricing
DC-100K-PDX-8
Cardinal DC-100K Adapter Kit for PDX Load Cell Replacement, 8 Cell System
Call For Pricing
DC-100K-PDX-10
Cardinal DC-100K Adapter Kit for PDX Load Cell Replacement, 10 Cell System
Call For Pricing
DC-100K-PDX-12
Cardinal DC-100K Adapter Kit for PDX Load Cell Replacement, 12 Cell System
Call For Pricing
DC-50K-MTX-4
Cardinal DC-50K Adapter Kit for MTX Load Cell Replacement, 4 Cell System
Call For Pricing
DC-50K-MTX-6
Cardinal DC-50K Adapter Kit for MTX Load Cell Replacement, 6 Cell System
Call For Pricing
DC-50K-MTX-8
Cardinal DC-50K Adapter Kit for MTX Load Cell Replacement, 8 Cell System
Call For Pricing
DC-50K-MTX-10
Cardinal DC-50K Adapter Kit for MTX Load Cell Replacement, 10 Cell System
Call For Pricing
DC-50K-MTX-12
Cardinal DC-50K Adapter Kit for MTX Load Cell Replacement, 12 Cell System
Call For Pricing
DC-100K-MTX-4
Cardinal DC-100K Adapter Kit for MTX Load Cell Replacement, 4 Cell System
Call For Pricing
DC-100K-MTX-6
Cardinal DC-100K Adapter Kit for MTX Load Cell Replacement, 6 Cell System
Call For Pricing
DC-100K-MTX-8
Cardinal DC-100K Adapter Kit for MTX Load Cell Replacement, 8 Cell System
Call For Pricing
DC-100K-MTX-10
Cardinal DC-100K Adapter Kit for MTX Load Cell Replacement, 10 Cell System
Call For Pricing
DC-100K-MTX-12
Cardinal DC-100K Adapter Kit for MTX Load Cell Replacement, 12 Cell System
