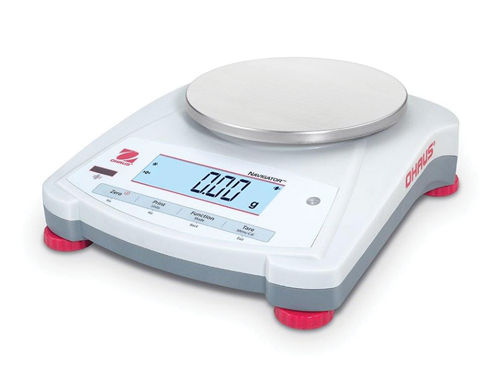

Navigator XT Series, Ohaus Toploader Balance

$0.00

The Navigator® series offers a unique combination of features, including touchless sensors, ultra-fast response time and superior overload protection for use in a wide variety of weighing applications.

Unsurpassed Cleanliness

Designed with two touchless sensors that free up your hands, the Ohaus Navigator compact bench scale allows you to focus on handling samples and keeping the scale free from contaminants. The touch-free control of tare, zero, print, function and display backlight helps to minimize touching the keypad, thereby avoiding cross-contamination or unwanted residue on or from the scale. A polished stainless steel pan, corrosion-free plastic housing and spill-resistant pan sub-assembly embodies a hygienic design that is easy to clean. The optional full-body in-use cover wraps over and around the housing and keypad to guard against spills, dust and contamination.

Unmatched Productivity

The Ohaus Navigator has amazing stabilization in less than one second to provide fast, accurate and repeatable weighing results; improving operator efficiency and increasing productivity. It includes an internal rechargeable lead acid battery that operates up to 100 hours (or over twelve eight-hour days) of normal use on a full charge. With maximized portability, the scale can be transported and used where power outlets are not readily available. A wave of the hand over the touchless sensors eliminates the extra effort or time to press the keys. A bright backlit LCD display provides optimum visibility in any lighting condition – indoors or out – with large digits and indicators that make it fast and easy to read the weighing results.

Unbeatable Durability

Built to handle serious loads, the Ohaus Navigator has a superior mechanical overload protection system to enable the scale to safely bear loads up to four times its rated capacity. It is constructed of a high-strength 304 type stainless steel pan and impact-resistant ABS plastic housing that helps the scale stand up to years of use. The touchless sensors minimize keypad use, reducing operational wear and tear.

Download product PDF

Features

  • Touchless IR (infrared) sensors minimize keypad use
  • Program IR sensor to control zero, print tare, backlight and power functions
  • Backlit 0.8 in LCD display for high visibility
  • Illuminated level indicator at start-up
  • Integrated transportation and calibration lock switch
  • Hygienic design for easy cleanup in food, laboratory and industrial applications
  • Impact-resistant ABS plastic housing with polished stainless steel spill-resistant pan
  • Non-skid leveling feet

Specifications

Weighing Units:
Gram, Carat, Ounce, Pound, Carat, Pennyweight, Troy Ounce, Grain, Pound/Ounce, (See technical manual for complete listing)Operating Modes:
Weighing, Percent, Parts Counting, Check weighing, Display Hold, Accumulation/Totalization

Power:
12 VDC 0.42 A AC adapter, 100 to 240 V, four C-batteries (not included)

Stabilization Time:
1 second (NVT4201 = 1.5 seconds)

Ext. Cal. Mass (optional):
NVT2201: 2 lb (1 kg)
NVT4201: 5 lb (2 kg)
NVT6200: 10 lb (5 kg)
NVT12000: 10 lb (5 kg)
NVT2200: 20 lb (10 kg)

Operating Temperature:
10 °C to 40 °C (50 °F to 104 °F) at 20% to 85% RH

Est. Weight:
5.1 lb (2.3 kg)Warranty:
One-year limited

Return Policy:
OHAUS standard policy – restock fee may apply

Options

194607 Scale,Navigator NVT2201 2200g x 0.1g, AC Adaptor 100-240V
194608 Scale,Navigator NVT4201 4200g x 0.1g, AC Adaptor 100-240V
194609 Scale,Navigator NVT6200 6200g x 1g, AC Adaptor 100-240V
194610 Scale,Navigator NVT12000 12,000g x 1g, 100-240 VAC Adaptor
194611 Scale,Navigator NVT22000 22,000g x 1g, AC Adaptor 100-240V
