OIML Range 20 kg Precision Laboratory Metric Sets

$0.00

OIML precision laboratory metric sets with a 20 kilogram range are used in density measurement, tolerance checking, mass standards and OIML guidelines for balance and scale verification.

Download product PDF
Categories: ,

Features

  • Nominal value marked on weights
  • Serial numbers applied to case (weights may be marked with symbol)
  • Density is approximately 7.95 g/cm3
  • OIML E1, E2, F1 and F2 polish finish
  • OIML M1 and M2 satin finish

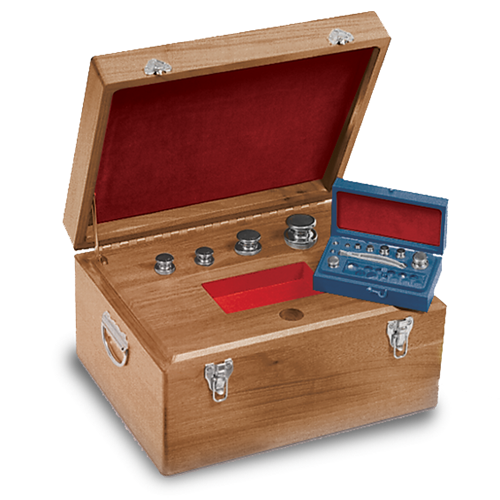

  • E1, E2, F1, F2 and M1 weights include protective case
  • Weights manufactured international recommendation, OIML R111 specifications
  • E1 and E2 supplied with Accredited Certificate per OIML R111

Specifications

20 kg – 1 mg 20 kg – 100 mg 20 kg – 1 g 20 kg – 100 g 20 kg – 1 kg
1 – 20 kg 1 – 20 kg 1 – 20 kg 1 – 20 kg 1 – 20 kg
1 – 10 kg 1 – 10 kg 1 – 10 kg 1 – 10 kg 1 – 10 kg
1 – 5 kg 1 – 5 kg 1 – 5 kg 1 – 5 kg 1 – 5 kg
2 – 2 kg 2 – 2 kg 2 – 2 kg 2 – 2 kg 2 – 2 kg
1 – 1 kg 1 – 1 kg 1 – 1 kg 1 – 1 kg 1 – 1 kg
1 – 500 g 1 – 500 g 1 – 500 g 1 – 500 g
2 – 200 g 2 – 200 g 2 – 200 g 2 – 200 g
1 – 100 g 1 – 100 g 1 – 100 g 1 – 100 g
1 – 50 g 1 – 50 g 1 – 50 g
2 – 20 g 2 – 20 g 2 – 20 g
1 – 10 g 1 – 10 g 1 – 10 g
1 – 5 g 1 – 5 g 1 – 5 g
2 – 2 g 2 – 2 g 2 – 2 g
1 – 1 g 1 – 1 g 1 – 1 g
1 – 500 mg 1 – 500 mg
2 – 200 mg 2 – 200 mg
1 – 100 mg 1 – 100 mg
1 – 50 mg
2 – 20 mg
1 – 10 mg
1 – 5 mg
2 – 2 mg
1 – 1 mg
Piece Count
29 21 17 10 6
Total Weight
41.11111 kg 41.11105 kg 41.111 kg 41 kg 40 kg
Part # Part # Part # Part # Part #
65210-Class E2 96416-Class E2 96414-Class E2 96417-Class E2 96418-Class E2
65211-Class F1 96428-Class F1 96425-Class F1 96426-Class F1 96427-Class F1
65212-Class F2 96447-Class F2 96441-Class F2 96442-Class F2 96443-Class F2

Options

36092 Form,Statement of Accuracy
11714 Weight Glove,Cloth White
11711 Weight,Tweezers 3.54x.46 Delrin
152414 Tweezers,Straight Tip 140 mm, Tips made of PA12 Plastic and Carbon Fiber
25836 Serial Number
50035 Weight Forceps, 4-3/4 Plastic, 200g to 500g
11755 Cover,Leaf Weight
50000 Tong ASSY,24cmx7.5cm W/ Surgical Tubing On Ends
50037 Weight,Lift 2kg and 5kg OIML Polycarbonate

Models

65210 Weight Set,20kg-1mg OIML Class E2 SST, Calibration Certificate Included
96416 Weight Set,20kg-100mg OIML Class E2 SST (5221), Calibration Certificate Included
96414 Weight Set,20kg-1g OIML Class E2 SST (5221), Calibration Certificate Included
96417 Weight Set,20kg-100g OIML Class E2 SST (5221), Calibration Certificate Included
96418 Weight Set,20kg-1kg OIML Class E2 SST (5221), Calibration Certificate Included
