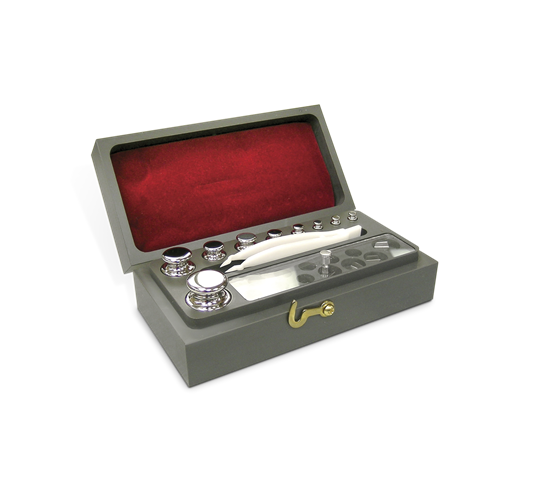

OIML Range 200 g Precision Laboratory Metric Sets

$0.00

OIML precision laboratory metric sets with a 200 gram range are used in density measurement, tolerance checking, mass standards and OIML guidelines for balance and scale verification.

Download product PDF
Categories: ,

Features

  • Nominal value marked on weights
  • Serial numbers applied to case (weights may be marked with symbol)
  • Density is approximately 7.95 g/cm3
  • OIML E1, E2, F1 and F2 polish finish
  • OIML M1 and M2 satin finish
  • E1, E2, F1, F2 and M1 weights include protective case
  • Weights manufactured international recommendation, OIML R111 specifications
  • E1 and E2 supplied with Accredited Certificate per OIML R111

Specifications

200 g – 1 mg (2) 200 g – 1 mg 200 g – 100 mg 200 g – 1 g (2) 200 g – 1 g (2) 200 g – 100 g
1 – 200 g 2 – 200 g 1 – 200 g 1 – 200 g 2 – 200 g 2 – 200 g
1 – 100 g 1 – 100 g 1 – 100 g 1 – 100 g 1 – 100 g 1 – 100 g
1 – 50 g 1 – 50 g 1 – 50 g 1 – 50 g 1 – 50 g
2 – 20 g 2 – 20 g 2 – 20 g 2 – 20 g 2 – 20 g
1 – 10 g 1 – 10 g 1 – 10 g 1 – 10 g 1 – 10 g
1 – 5 g 1 – 5 g 1 – 5 g 1 – 5 g 1 – 5 g
2 – 2 g 2 – 2 g 2 – 2 g 2 – 2 g 2 – 2 g
1 – 1 g 1 – 1 g 1 – 1 g 1 – 1 g 1 – 1 g
1 – 500 mg 1 – 500 mg 1 – 500 mg
2 – 200 mg 2 – 200 mg 2 – 200 mg
1 – 100 mg 1 – 100 mg 1 – 100 mg
1 – 50 mg 1 – 50 mg
2 – 20 mg 2 – 20 mg
1 – 10 mg 1 – 10 mg
1 – 5 mg 1 – 5 mg
2 – 2 mg 2 – 2 mg
1 – 1 mg 1 – 1 mg
Piece Count
22 23 15 10 11 3
Total Weight
411.11 g 611.11 g 611 g 410 g 610 g 500 g
Part # Part # Part # Part # Part # Part #
40546-Class E1   40547-Class E1 40548-Class E1   40549-Class E1
40550-Class E2 96468-Class E2 40551-Class E2 40552-Class E2 96469-Class E2 40553-Class E2
40554-Class F1 96470-Class F1 40555-Class F1 40556-Class F1 96471-Class F1 40557-Class F1
40558-Class F2 96472-Class F2 40559-Class F2 40560-Class F2 96473-Class F2 40561-Class F2

Options

36092 Form,Statement of Accuracy
11714 Weight Glove,Cloth White
11711 Weight,Tweezers 3.54x.46 Delrin
152414 Tweezers,Straight Tip 140 mm, Tips made of PA12 Plastic and Carbon Fiber
50035 Weight Forceps, 4-3/4 Plastic, 200g to 500g
11755 Cover,Leaf Weight
25836 Serial Number

Models

40546 Weight Set,200g-1mg OIML Class E1 SST, Calibration Certificate Included
40549 Weight Set,200g-100g OIML Class E1 SST, Calibration Certificate Included
40548 Weight Set,200g-1g OIML Class E1 SST, Calibration Certificate Included
40547 Weight Set,200g-100mg OIML Class E1 SST, Calibration Certificate Included
