OIML Range 5 kg Precision Laboratory Metric Sets

$0.00

OIML precision laboratory metric sets with a five kilogram range are used in density measurement, tolerance checking, mass standards and OIML guidelines for balance and scale verification.

Download product PDF
Categories: ,

Features

  • Nominal value marked on weights
  • Serial numbers applied to case (weights may be marked with symbol)
  • Density is approximately 7.95 g/cm3
  • OIML E1, E2, F1 and F2 polish finish
  • OIML M1 and M2 satin finish

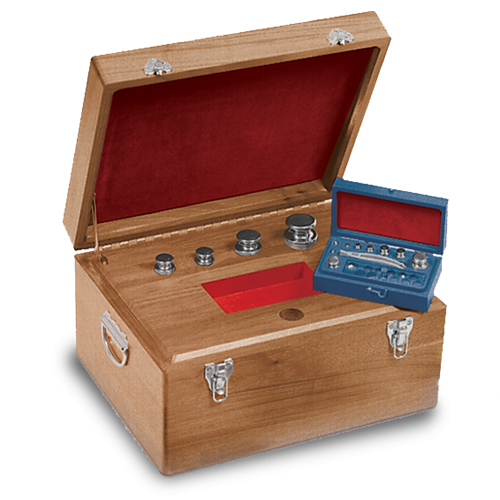

  • E1, E2, F1, F2 and M1 weights include protective case
  • Weights manufactured international recommendation, OIML R111 specifications
  • E1 and E2 supplied with Accredited Certificate per OIML R111

Specifications

5 kg – 1 mg 5 kg – 100 mg 5 kg – 1 g 5 kg – 100 g 5 kg – 1 kg
1 – 5 kg 1 – 5 kg 1 – 5 kg 1 – 5 kg 1 – 5 kg
2 – 2 kg 2 – 2 kg 2 – 2 kg 2 – 2 kg 2 – 2 kg
1 – 1 kg 1 – 1 kg 1 – 1 kg 1 – 1 kg 1 – 1 kg
1 – 500 g 1 – 500 g 1 – 500 g 1 – 500 g
2 – 200 g 2 – 200 g 2 – 200 g 2 – 200 g
1 – 100 g 1 – 100 g 1 – 100 g 1 – 100 g
1 – 50 g 1 – 50 g 1 – 50 g
2 – 20 g 2 – 20 g 2 – 20 g
1 – 10 g 1 – 10 g 1 – 10 g
1 – 5 g 1 – 5 g 1 – 5 g
2 – 2 g 2 – 2 g 2 – 2 g
1 – 1 g 1 – 1 g 1 – 1 g
1 – 500 mg 1 – 500 mg
2 – 200 mg 2 – 200 mg
1 – 100 mg 1 – 100 mg
1 – 50 mg
2 – 20 mg
1 – 10 mg
1 – 5 mg
2 – 2 mg
1 – 1 mg
Piece Count
28 20 16 8 4
Total Weight
11.11111 kg 11.111 kg 11.11 kg 11 kg 10 kg
Part # Part # Part # Part # Part #
30785-Class E1 30789-Class E1 30793-Class E1 30797-Class E1 30802-Class E1
30786-Class E2 30790-Class E2 30794-Class E2 30798-Class E2 30803-Class E2
30787-Class F1 30791-Class F1 30795-Class F1 30800-Class F1 30804-Class F1
30788-Class F2 30792-Class F2 30796-Class F2 30801-Class F2 30805-Class F2
126169-Class M1   126168-Class M1

Options

36092 Form,Statement of Accuracy
11714 Weight Glove,Cloth White
11711 Weight,Tweezers 3.54x.46 Delrin
152414 Tweezers,Straight Tip 140 mm, Tips made of PA12 Plastic and Carbon Fiber
25836 Serial Number
50035 Weight Forceps, 4-3/4 Plastic, 200g to 500g
11755 Cover,Leaf Weight
50000 Tong ASSY,24cmx7.5cm W/ Surgical Tubing On Ends
50037 Weight,Lift 2kg and 5kg OIML Polycarbonate

Models

30785 Weight Set,5kg-1mg OIML Class E1 SST, Calibration Certificate Included
30789 Weight Set,5kg-100mg OIML Class E1 SST, Calibration Certifiate Included
30793 Weight Set,5kg-1g OIML Class E1 SST, Calibration Certificate Included
30797 Weight Set,5kg-100g OIML Class E1 SST, Calibration Certificate Included
30802 Weight Set,5kg-1kg OIML Class E1 SST, Calibration Certificate Included
