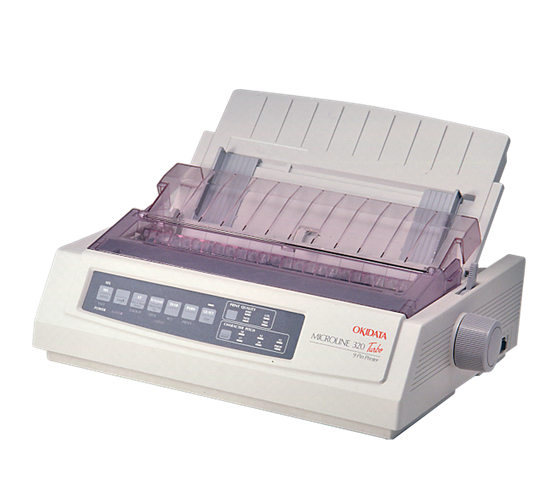

Okidata 320-390-420 Turbo

The Okidata 186/320/390/420 Turbo forms printers are rugged, reliable and built for speed.

Unfortunately this product has been DISCONTINUED. For similar products click here.
Category:

Features

  • Vertical tabs
  • Long-lasting, self-inking ribbon cartridge
  • Bit image graphics for plotting charts, graphs and drawings
  • Full ASCII character set
  • Friction and adjustable pin feed paper handling
Okidata 320/420 Turbo*:
  • Nine-pin, long-life print head (parallel input)
  • Centronics-compatible parallel interface
  • Near letter-quality printing at 63 characters per second
  • 80 columns with standard characters, 160 columns with condensed characters
  • Front access panel for quick and easy control of type size, print quality and other frequently used printer functions
Okidata 390 Turbo:
  • 24-pin, long-life print head
  • Supports Windows 95/98
  • Superior, professional quality printer
  • Auto-tear accurately positions continuous forms for a clean tear at the perforation
  • Three scaleable fonts

Specifications

Print Method:?
Okidata 320/420: 9-Pin (0.34 mm dia.) serial impact dot matrix
Okidata 390: 24-Pin (0.20 mm dia.) serial impact dot matrix

Graphics Resolution:
Okidata 320/420: 240 (H) x 216 (V) DPI maximum (Epson/IBM)
Okidata 390: 360 (H) x 360 (V) DPI maximum (Epson/IBM AGM)

Print Speed** (cps):
Okidata 320: NLQ: 75; Utility: 300;
High Speed Draft: 390;
Super Speed Draft: 435
Okidata 390: LQ: 105; Utility: 315;
Super Speed Draft: 390 (15 cpi)
Okidata 420: NLQ95;
High Speed Draft: 5p 510; Utility: 570, Super 570

Feed Rate:
5.0 ips

Emulations:
Okidata 320: Epson EX-PPR II and OKI Microline
Okidata 390: Epson ESC/P2, IBM ProPrinter and IBM AGM
Okidata 420: Epson Fx IMB Pro Point Micro

Interface:
Okidata 320/390/420: IEEE 1284 bidirectional parallel; Windows 95 plug and play compatible, USB
Okidata 390: Centronics and IEEE 1284 bidirectional parallel

Compatibility:
Windows XP, 2000, 98/95

Receive Buffer:
Okidata 320: 28K
Okidata 390: 23K
Okidata420: 128K

Code Pages:
Standard ASCII; Epson character set I and II; IBM character set I, I and All; Code Page 850, 860, 863, 865, 437; BRASCII and ABICOMP

Resident Fonts:
Okidata 390: LQ: Courier, Letter Gothic, Orator, Prestige, Roman and Swiss/Bold; Utility:?Gothic

Scaleable Fonts:
Okidata 320/420: Courier, Gothic (22-216 pt. in one pt. increments)
Okidata 390: Courier, Roman and Swiss? (8-64 pt. in one pt. increments)

Bar Codes:
Code 39, UPC A, UPC E, EAN 8, EAN 13, Interleaved 2 of 5, Code 128 (A, B, C), PostNet?

Paper Input:
Single/multi-part, continuous, cut sheet, envelopes, card stock, labels
Bottom feed with pull tractor option

Number Of Copies:
Okidata 320: Six
Okidata 390: Four
Okidata 420: Six

Tractor:
3.5 to 10.5 in wide (88.9-266.7 mm wide), rear push with zero tear and paper park (optional)

Paper Thickness:
Rear feed: 0.014 in (0.35 mm) maximum;
Bottom feed***: 0.017 in (0.43 mm) maximum, expandable to 0.01 in (.78 mm)

Paper Path:
Bottom, rear or top

Paper Weight:
Cut sheet 16 to 24 lb (7.2 to 10.8 kg), Continuous 16 to 20 lb (7.2 to 9.1 kg)

Electrical:
115 VAC, 230 VAC

Power Consumption:
Okidata 320: Operating: 100 W
Okidata 390: Operating: 43 W Idle: 10 W
Okidata 420: 20,000 hours

Reliability (MTBF):
10,000 hours (25% duty cycle, 35% page density)

Print Head Life:
200 million characters

Ribbon Type:
Black cartridge (2 million characters nominal life)

Operating Temperature:
40? F to 104? F (4? C to 40? C) at 25% to 80% relative humidity

Overall Size:
Okidata 320 and 390: (W x D x H):?15.7 x 13.6 x 4.6 in
(398.8 x 345.4 x 116.8 mm)
Okidata 420: 15.7 x 13.6 x 6.0 in

Est. Ship Weight:
Okidata 320: 16 lb (7.2 kg)
Okidata 390: 15 lb (6.8 kg)
Okidata 420: 17 lb (7.7 kg)

Warranty:
320/390: One-year limited warranty (includes print head)
420: Three-year limited warranty

** Print speeds apply to all ?pitches (10, 12, 17.1, and 20 cpi)
*** Requires optional pull tractor (part #41224)

Options

Part #121454 Product DescriptionBoard,RS232 Input Okidata 320/321 Rev I0 & higher, 390 Rev H0 & higher and 420 Rev E0 and higher
Part #132249 Product DescriptionRibbon,Black Okidata 420
Part #21226 Product DescriptionCover,Dust 320 Okidata
Part #41363 Product DescriptionLIT,Manual Okidata 320/321 Turbo User
Part #20239 Product DescriptionBoard,RS232 Input Okidata 320/321 Rev HO and Lower, 390 Rev GO and Lower, 420 Rev DO and Lower
Part #20664 Product DescriptionCartridge,Ribbon Black Okidata 184 and 186 Printer, Magnetec 3500-S, Okidata 320 and 390
Part #41224 Product DescriptionPrinter OPT,Tractor Pull Kit 320 Turbo 390 Microline Okidata

etete

Part #41224 Product DescriptionPrinter OPT,Tractor Pull Kit 320 Turbo 390 Microline Okidata
Part #20239 Product DescriptionBoard,RS232 Input Okidata 320/321 Rev HO and Lower, 390 Rev GO and Lower, 420 Rev DO and Lower
Part #20664 Product DescriptionCartridge,Ribbon Black Okidata 184 and 186 Printer, Magnetec 3500-S, Okidata 320 and 390

Models

Part #?126438 Product DescriptionPrinter,Microline 320 232 Turbo, RS-232, Parallel, USB Type B, Okidata, 117 VAC Hardware handshaking is default setup. For Indicator setup, change to no handshaking
Part #?41222 Product DescriptionPrinter,Microline 320 Turbo Centronics Parallel & USB Interfaces Okidata 117VAC
Part #?41223 Product DescriptionPrinter,Microline 320 Turbo Centronics Okidata 230VAC
Part #?75106 Product DescriptionPrinter,Microline 390 Turbo, Okidata, Parallel Interface, 24 Pin Printhead, 110VAC
Part #?102959 Product DescriptionPrinter,Microline 420 OKI Okidata 117VAC, Parallel Interface
