Olympus Concrete Deck Truck Scales with AC Analog Load Cells

$0.00

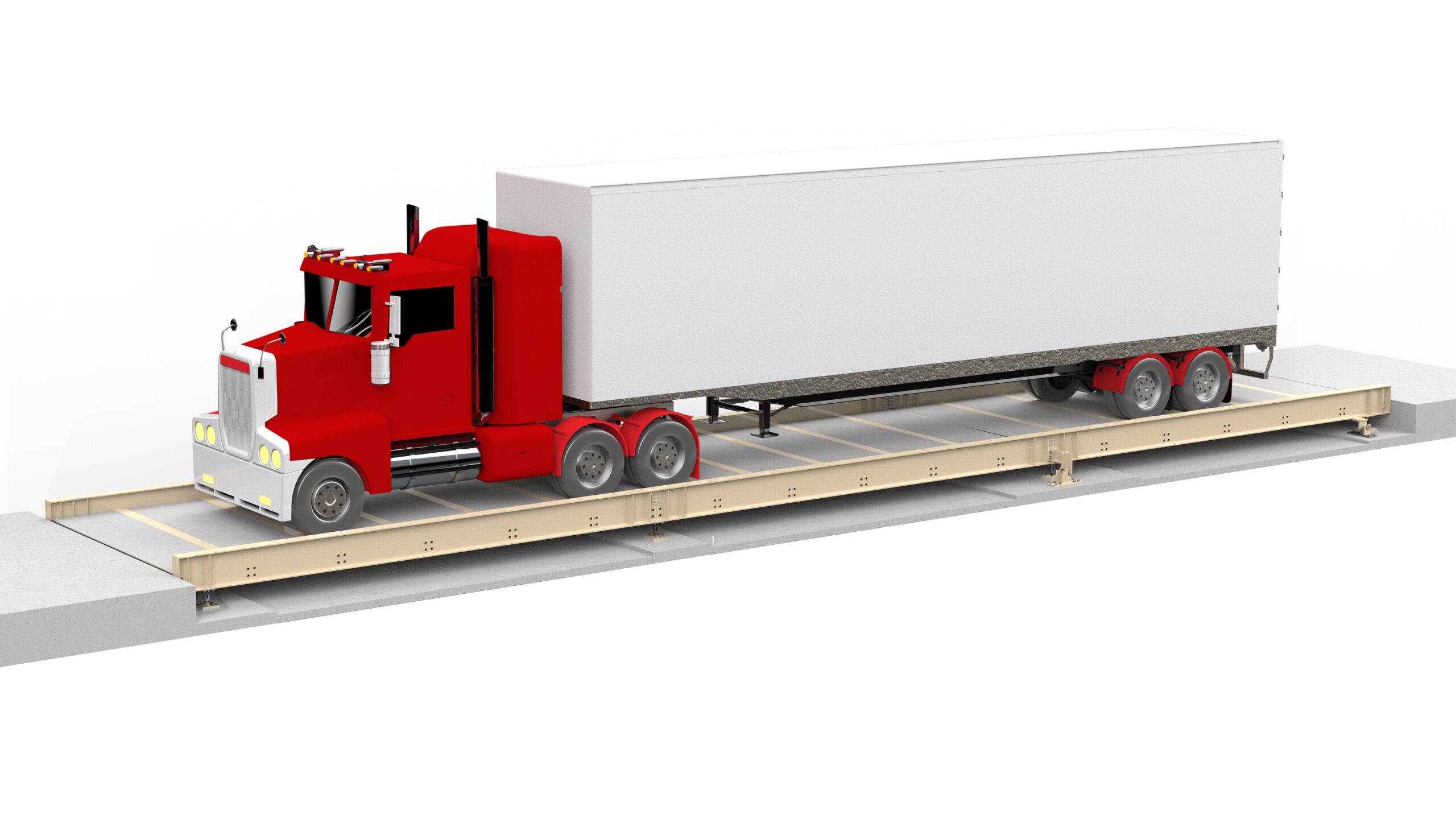

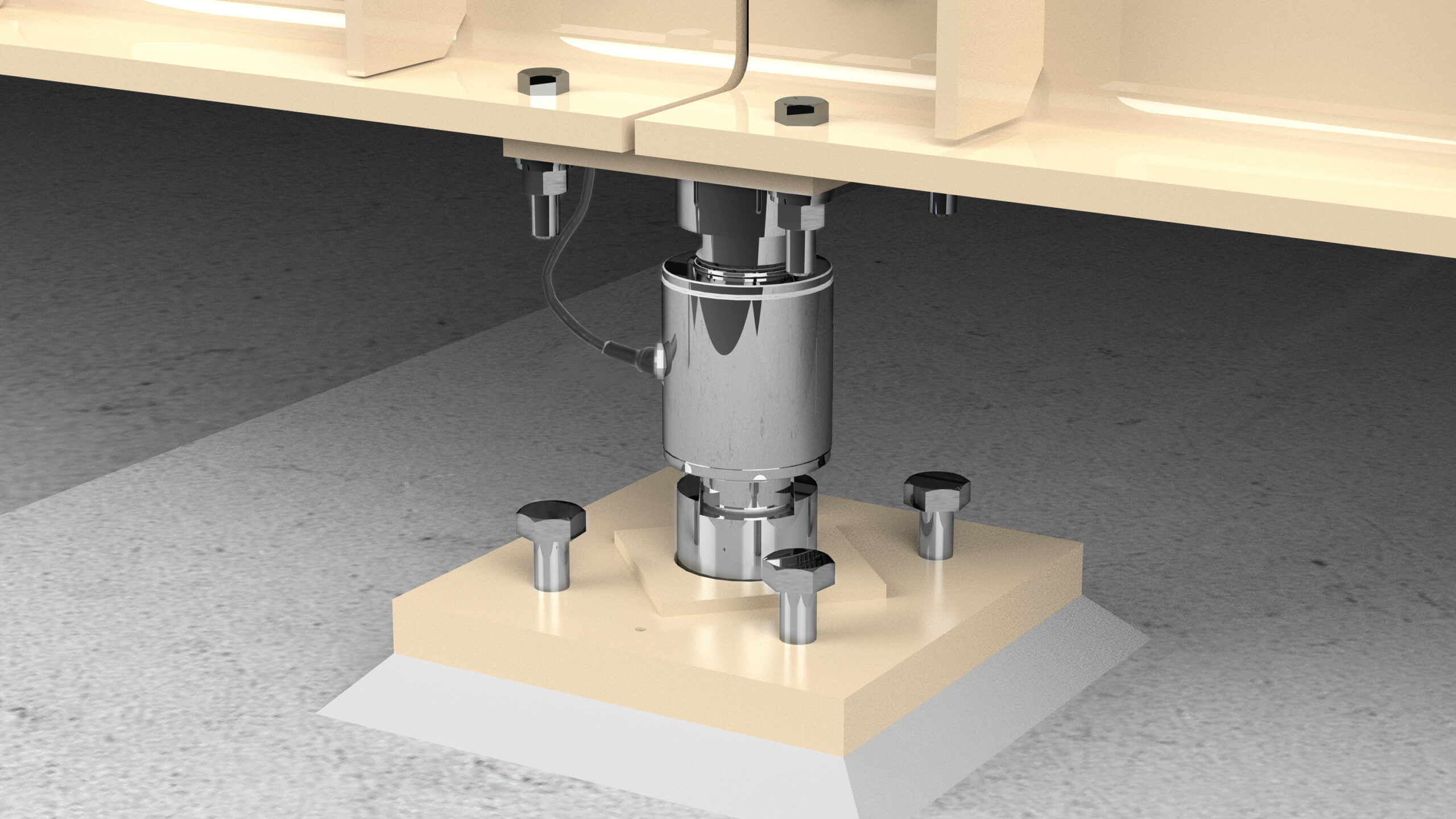

Cardinal Scale’s Olympus concrete deck low-profile side rail truck scales are engineered and manufactured for ease of shipment to job sites around the world with bolt-together installation that will provide years of reliable, accurate truckload weighing. These NTEP and OIML legal-for-trade certified, 28-inch/70-cm-high, low-profile side rail scales are designed to minimize costs associated with delivery to job sites. The models listed on this product page include AC series analog load cells, which are stainless steel compression load cells with an IP69K waterproof rating. A weatherproof stainless steel junction box is included.

Cardinal Scale’s Olympus truck scales bolt together for the field pouring of concrete. The 18-inch/455-mm-high I-beam, hip-style construction features a 8-inch/200-mm concrete deck (concrete not included). Olympus truck scales stand up to heavy truck loads with their wide-flange I-beams utilized throughout the weighbridge that add rigidity to each side of the truck scale and serve as guide rails for safe truck loading.

All Cardinal truck scales go through an extensive 3-stage washing system at the factory, which washes the scale completely to remove all mill scale and surface imperfections. The weighbridges are then powder-coated with zinc-enriched anti-corrosion paint and baked in an industrial oven at 450° F degrees for two hours. This baked-on powder paint provides a weatherproof UV-protected finish due to the maximum coating adhesion preparation.

Olympus truck scales include the foundation kit, standard rodent protection, and bolt-down anchors. Anti-corrosion industrial tan powder coat paint is standard on the weighbridges. Rebar and deck sheeting is not included.​

Download product PDF
Category:

Features

  • Side Rail Guidance for Driver, Truck, and Load Safety
  • NTEP and OIML Legal-for-Trade Certified up to 14 ft. Wide
  • Bolt-Together Design for Overseas Shipments
  • Standard Platform Lengths Available from 10 ft. up to 100 ft. Long
  • Standard Widths Available: 10, 11, 12, and 14 ft. Wide
  • Four Different Load Cell Types Available to Choose From
  • Available with Your Choice of Analog, Digital or Hydraulic Load Cells
  • Overall Scale Capacities Available Ranging from 60 Tons up to 100 Tons
  • Heavyweight 30-Ton Concentrated Load Capacity (CLC)
  • Built-in I-beam Guide Rails
  • Pour-in-Place Concrete Deck Weighbridges
  • Long-Lasting Baked-On Tan Powder Coat Paint
  • Analog Compression Load Cells for Models Listed on this Page
  • Anti-Rotation Mounting Load Cell Stands
  • IP69K Waterproof Load Cell Rating
  • Easy Access to Load Cells
  • Stainless Steel Compression Load Cells
  • Stainless Steel Junction Boxes

Specifications

verall Capacities: From 60 tons up to 100 tons standard
Concentrated Load Capacity: 30 tons
Platform Lengths: From 10 ft up to 100 ft long standard
Platform Widths: 10, 11, 12, and 14 ft widths available
Load Cells: AC series analog compression stainless steel waterproof load cells
Junction Box: Stainless steel weatherproof enclosure
Paint: Baked-on, heavy-duty polyester anti-corrosion tan powder paint
Concrete: 8 in / 200 mm high pour-in-place concrete deck (concrete not included)
I-beam Guide Rail Height: 18 in / 455 mm high hip-style I-beam construction
Approvals: NTEP and OIML legal for trade certified
Includes: Foundation kit, standard rodent protection, checking, and bolt-down anchors. Rebar and deck sheeting is not included.
Other Load Cells Available to Choose From: Cardinal Scale model DC, SCBD, and SST load cells
Warranty: Standard 5-year bridge-and-below warranty
Country of Origin: USA

Models

1032108 Truck Scale, Olympus, 8″ Concrete Deck, 10′ X 11′, 30 ton CLC, 60 Ton Capacity, AC Load Cells Call For Pricing
1032109 Truck Scale, Olympus, 8″ Concrete Deck, 20′ X 11′, 30 ton CLC, 60 Ton Capacity, AC Load Cells Call For Pricing
1032110 Truck Scale, Olympus, 8″ Concrete Deck, 40′ X 11′, 30 ton CLC, 90 Ton Capacity, AC Load Cells Call For Pricing
1032111 Truck Scale, Olympus, 8″ Concrete Deck, 47′ X 11′, 30 ton CLC, 90 Ton Capacity, AC Load Cells Call For Pricing
1032112 Truck Scale, Olympus, 8″ Concrete Deck, 60′ X 11′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1032113 Truck Scale, Olympus, 8″ Concrete Deck, 70′ X 11′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1032114 Truck Scale, Olympus, 8″ Concrete Deck, 80′ X 11′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1032115 Truck Scale, Olympus, 8″ Concrete Deck, 100′ X 11′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1032116 Truck Scale, Olympus, 8″ Concrete Deck, 10′ X 12′, 30 ton CLC, 60 Ton Capacity, AC Load Cells Call For Pricing
1032117 Truck Scale, Olympus, 8″ Concrete Deck, 20′ X 12′, 30 ton CLC, 60 Ton Capacity, AC Load Cells Call For Pricing
1032118 Truck Scale, Olympus, 8″ Concrete Deck, 40′ X 12′, 30 ton CLC, 90 Ton Capacity, AC Load Cells Call For Pricing
1032119 Truck Scale, Olympus, 8″ Concrete Deck, 47′ X 12′, 30 ton CLC, 90 Ton Capacity, AC Load Cells Call For Pricing
1032120 Truck Scale, Olympus, 8″ Concrete Deck, 60′ X 12′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1032121 Truck Scale, Olympus, 8″ Concrete Deck, 70′ X 12′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1032122 Truck Scale, Olympus, 8″ Concrete Deck, 80′ X 12′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1032123 Truck Scale, Olympus, 8″ Concrete Deck, 100′ X 12′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1032124 Truck Scale, Olympus, 8″ Concrete Deck, 10′ X 14′, 30 ton CLC, 60 Ton Capacity, AC Load Cells Call For Pricing
1032125 Truck Scale, Olympus, 8″ Concrete Deck, 20′ X 14′, 30 ton CLC, 60 Ton Capacity, AC Load Cells Call For Pricing
1032126 Truck Scale, Olympus, 8″ Concrete Deck, 40′ X 14′, 30 ton CLC, 90 Ton Capacity, AC Load Cells Call For Pricing
1032127 Truck Scale, Olympus, 8″ Concrete Deck, 47′ X 14′, 30 ton CLC, 90 Ton Capacity, AC Load Cells Call For Pricing
1032128 Truck Scale, Olympus, 8″ Concrete Deck, 60′ X 14′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1032129 Truck Scale, Olympus, 8″ Concrete Deck, 70′ X 14′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1032130 Truck Scale, Olympus, 8″ Concrete Deck, 80′ X 14′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1032131 Truck Scale, Olympus, 8″ Concrete Deck, 100′ X 14′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1032158 Truck Scale, Olympus, 8″ Concrete Deck, 10′ X 11′, 30 ton CLC, 60 Ton Capacity, AC Load Cells Call For Pricing
1032159 Truck Scale, Olympus, 8″ Concrete Deck, 20′ X 11′, 30 ton CLC, 60 Ton Capacity, AC Load Cells Call For Pricing
1032160 Truck Scale, Olympus, 8″ Concrete Deck, 40′ X 11′, 30 ton CLC, 90 Ton Capacity, AC Load Cells Call For Pricing
1032161 Truck Scale, Olympus, 8″ Concrete Deck, 47′ X 11′, 30 ton CLC, 90 Ton Capacity, AC Load Cells Call For Pricing
1032162 Truck Scale, Olympus, 8″ Concrete Deck, 60′ X 11′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1032163 Truck Scale, Olympus, 8″ Concrete Deck, 70′ X 11′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1032164 Truck Scale, Olympus, 8″ Concrete Deck, 80′ X 11′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1032165 Truck Scale, Olympus, 8″ Concrete Deck, 100′ X 11′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1032166 Truck Scale, Olympus, 8″ Concrete Deck, 10′ X 12′, 30 ton CLC, 60 Ton Capacity, AC Load Cells Call For Pricing
1032167 Truck Scale, Olympus, 8″ Concrete Deck, 20′ X 12′, 30 ton CLC, 60 Ton Capacity, AC Load Cells Call For Pricing
1032168 Truck Scale, Olympus, 8″ Concrete Deck, 40′ X 12′, 30 ton CLC, 90 Ton Capacity, AC Load Cells Call For Pricing
1032169 Truck Scale, Olympus, 8″ Concrete Deck, 47′ X 12′, 30 ton CLC, 90 Ton Capacity, AC Load Cells Call For Pricing
1032170 Truck Scale, Olympus, 8″ Concrete Deck, 60′ X 12′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1032171 Truck Scale, Olympus, 8″ Concrete Deck, 70′ X 12′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1032172 Truck Scale, Olympus, 8″ Concrete Deck, 80′ X 12′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1032173 Truck Scale, Olympus, 8″ Concrete Deck, 100′ X 12′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1032174 Truck Scale, Olympus, 8″ Concrete Deck, 10′ X 14′, 30 ton CLC, 60 Ton Capacity, AC Load Cells Call For Pricing
1032175 Truck Scale, Olympus, 8″ Concrete Deck, 20′ X 14′, 30 ton CLC, 60 Ton Capacity, AC Load Cells Call For Pricing
1032176 Truck Scale, Olympus, 8″ Concrete Deck, 40′ X 14′, 30 ton CLC, 90 Ton Capacity, AC Load Cells Call For Pricing
1032177 Truck Scale, Olympus, 8″ Concrete Deck, 47′ X 14′, 30 ton CLC, 90 Ton Capacity, AC Load Cells Call For Pricing
1032178 Truck Scale, Olympus, 8″ Concrete Deck, 60′ X 14′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1032179 Truck Scale, Olympus, 8″ Concrete Deck, 70′ X 14′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1032180 Truck Scale, Olympus, 8″ Concrete Deck, 80′ X 14′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1032181 Truck Scale, Olympus, 8″ Concrete Deck, 100′ X 14′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1032100 Truck Scale, Olympus, 8″ Concrete Deck, 10′ X 10′, 30 ton CLC, 60 Ton Capacity, AC Load Cells Call For Pricing
1032101 Truck Scale, Olympus, 8″ Concrete Deck, 20′ X 10′, 30 ton CLC, 60 Ton Capacity, AC Load Cells Call For Pricing
1032102 Truck Scale, Olympus, 8″ Concrete Deck, 40′ X 10′, 30 ton CLC, 60 Ton Capacity, AC Load Cells Call For Pricing
1032103 Truck Scale, Olympus, 8″ Concrete Deck, 47′ X 10′, 30 ton CLC, 90 Ton Capacity, AC Load Cells Call For Pricing
1032104 Truck Scale, Olympus, 8″ Concrete Deck, 60′ X 10′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1032105 Truck Scale, Olympus, 8″ Concrete Deck, 70′ X 10′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1032106 Truck Scale, Olympus, 8″ Concrete Deck, 80′ X 10′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1032107 Truck Scale, Olympus, 8″ Concrete Deck, 100′ X 10′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1032150 Truck Scale, Olympus, 8″ Concrete Deck, 10′ X 10′, 30 ton CLC, 60 Ton Capacity, AC Load Cells Call For Pricing
1032151 Truck Scale, Olympus, 8″ Concrete Deck, 20′ X 10′, 30 ton CLC, 60 Ton Capacity, AC Load Cells Call For Pricing
1032152 Truck Scale, Olympus, 8″ Concrete Deck, 40′ X 10′, 30 ton CLC, 90 Ton Capacity, AC Load Cells Call For Pricing
1032153 Truck Scale, Olympus, 8″ Concrete Deck, 47′ X 10′, 30 ton CLC, 90 Ton Capacity, AC Load Cells Call For Pricing
1032154 Truck Scale, Olympus, 8″ Concrete Deck, 60′ X 10′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1032155 Truck Scale, Olympus, 8″ Concrete Deck, 70′ X 10′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1032156 Truck Scale, Olympus, 8″ Concrete Deck, 80′ X 10′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1032157 Truck Scale, Olympus, 8″ Concrete Deck, 100′ X 10′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
